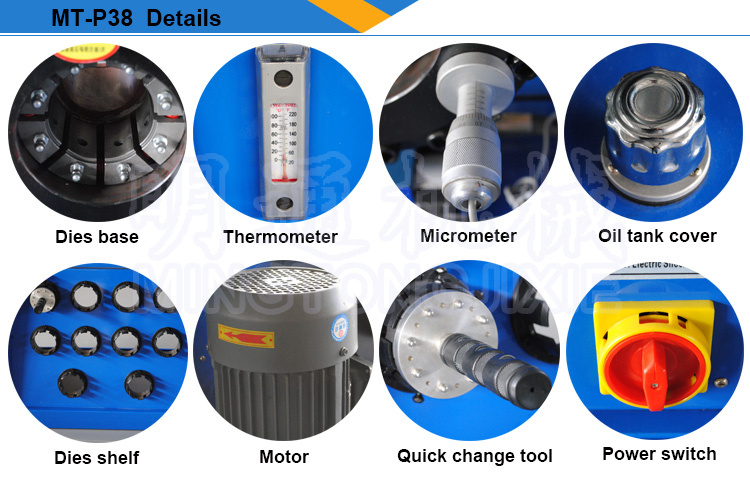

MT-P38 hydraulic hose crimping machine/hose crimper

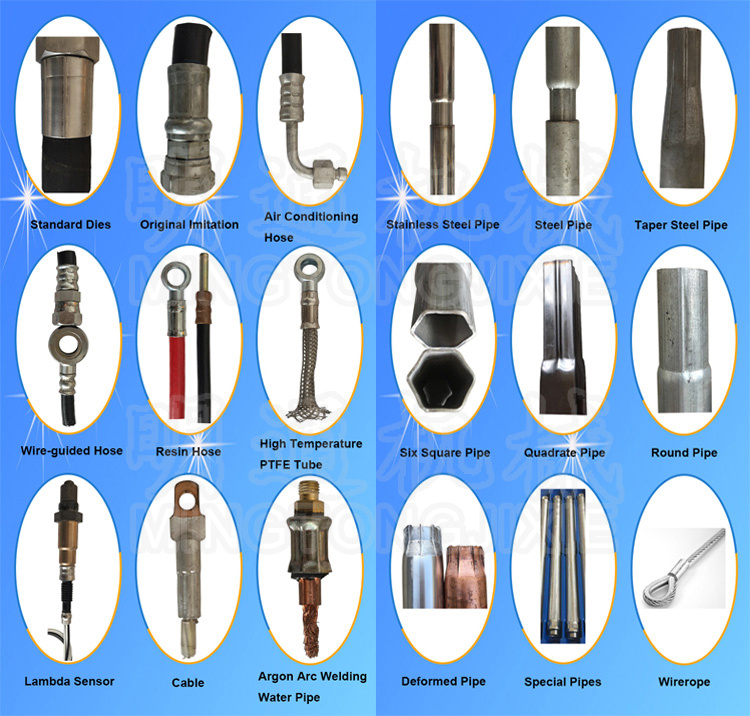

The MT-P38(P32/P52) type CNC hose crimping machine is suitable for hooping processing of the assembly of high pressure rubber tube, fibre pipe and plastic pipe used in industry, agriculture and fluid drive of engineering machinery. It has the advantages of wide hooping range, high precision (adopt PLC control), high degree automation, This machine features small and portable appearance, big force, low noise and easy to operate.
Advantages:
1. Crimping capacity can be precisely controlled, repeat precision of 0.01mm
2. Increasing the opening, and good passing performance.
3. Added with base-protective resin gasket to not damage the working surface.
4. Speed is fast although equipped with single phase
5. Big swaging force suitable for 2 inch 6 wires hose
Machine parameter table
Product Name | hose crimping machine |
Crimping Range (Inner Diameter) | 6~38mm ( 1/4~1.5" ) |
Free Dies | 8 Sets of dies |
Item No. of dies | 15.19.23.26.31.36.41.47 |
Accuracy | 0.01mm |
Volume of oil tank | 2.5L / 5L / 10L (Optional) |
System Pressure | 26MPa / 31.5MPa (Optional) |
Motor Power (as your requirements) | 3kW / 4kW 1 2 3 phase |
Voltage (as your requirements) | 220V-415V 50/60Hz |
Buckling Pressure | 500T |
Efficiency | 200pcs/h |
Maximum Open Diameter | 114mm |
The max open tolerance | ± 30mm |
Control system | Electric Automatic |
Control model | Micro control with Button control with pedal |
Hydraulic oil | 46# |
Package Dimension | 1300*700*1200 mm |
Contact me now:
Ms Serena Yu:
| Prod Model: | MT-P38 |
|---|---|
| Lock/Inner Range: | 6~38mm |
| Voltage: | 220V/240V/380V/415V(Optional) |
| Power: | 3kw/4kw |
| Withhold Accuracy: | 0.01mm |
| Diemensions: | 1160*565*1100mm |
| System Pressure: | 31.5MPa |
| Buckling Pressure: | 500t |
| Efficiency: | 200PCS/Hour |
| Mold Quantity: | 8 Sets |
| Product Name: | 1.5 Inch Hydraulic Hose Crimping Machine |
