WC67 Hydraulic press brake, hydraulic power, new congdition, China export
| Price: |
US $ 38000Units |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Units |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |

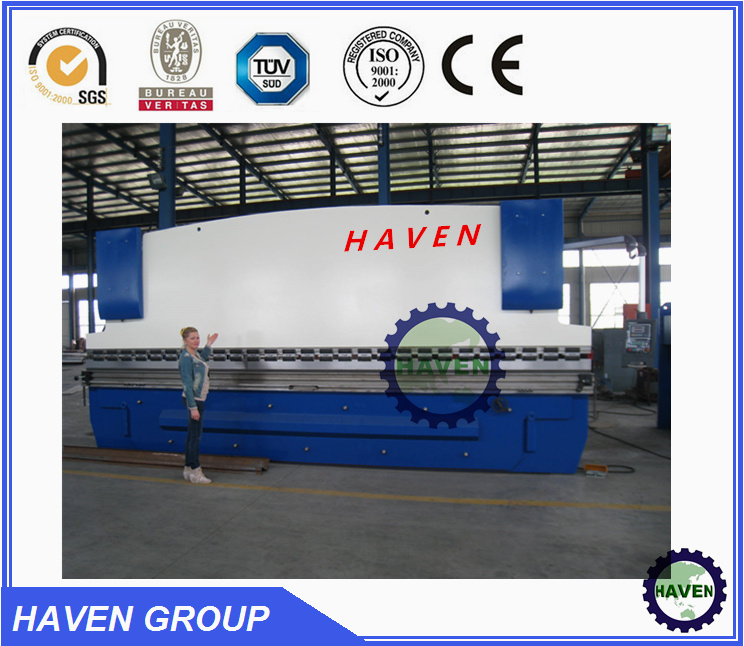

WC67 Hydraulic press brake ,hydraulic power,new congdition,china export
Standard Facilities: 1. ESTUN E21 NC control + Frequency inverter 2.Front support arms3. Motorized stroke adjustment 4. T slot on both front side and back side of the worktable5. OMAGE Hydraulic valve6. SUNNY hydraulic pump 7. Siemens famous brand motor 8. Siemens or Schneider Electric parts9. Machine power is turn-off when the electric cabinet door opened 10. Upper clamps with Anti Wedges 11. Hydraulic and Electrical overload protection12. Side safety guard and Full height back safety guard13. With standard Top punch and Bottom Die14. Back gauge beam is made of profile steel and liner guide15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy2. Estun E21 NC Press Brake Control system:1. Monochrome LCD Box Panel.2. Integral factor programmable freely3. Automatic positioning control5.Internal time relay6.Ram stroke counter3. Our Services1: Response in time after getting customer's claim1: Provide solution in 1 day2: Usually solve problem within 2 days2. For big machine, Installation Service is available as per customer's requirement4. Training ServiceOur technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.5. Quality GuaranteeWe guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.6. Main features1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.4. Upper clamp is fitted with compensation device. 5. Worktable mechanical compensation or hydraulic compensation device is optional. Main specification:
Model | Nominal
Pressure
(KN) | Length of
table(mm) | Distance
Between
Housing (mm) | Throat
Depth
(mm) | Stroke
(mm) | Open
Height
(mm) | Main
Motor
(kW) | Dimensions
(L x W x H) (mm) | weight
(t) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545x1510x2050 | 3 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950x1510x2080 | 3.5 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555x1600x2130 | 3.8 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960x1600x2180 | 4.2 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740x1600x2230 | 5.2 |
| 100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980x1650x2330 | 6.3 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740x1650x2355 | 7 |
| 100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550x1650x2450 | 8.8 |
| 100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100x1500x2650 | 11.8 |
| 125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980x1650x2370 | 7.5 |
| 125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750x1650x2450 | 8.2 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550x1650x2470 | 9 |
| 125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100x1500x2795 | 11.5 |
| Prod Model: |
WC67Y-300/4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
E21 Digital Readout From Estun |
| Application: |
Machinery & Hardware |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Rated Pressure: |
3000KN |
| Working Table Length: |
4000mm |
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
