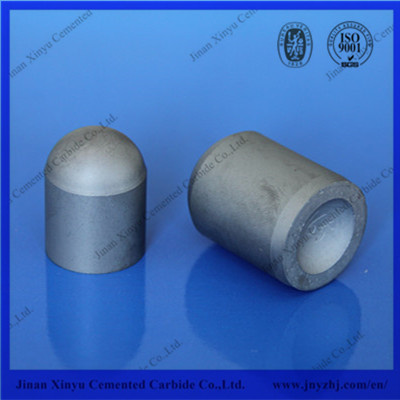

WC Co cemented carbide tool for oil and rock drill
1. Introduction
Tungsten carbide is a hard material composed of a metal matrix composite where carbide particles act as the aggregate and a metallic binder serves as the matrix. It is one of the most successful composite engineering materials ever produced. Its unique combination of strength, hardness and toughness satisfies the most demanding applications.
Tungsten carbide is used in machining tough materials such as cast iron or steel, as well as in situations where other tools would wear away, such as mining tools and wear parts. Most of the time, carbide will leave a better finish on the part,and allow faster machining. Carbide tools can also withstand higher temperatures than standard high speed steel tools.
2. Advantage
1. Free sample
2. Direct factory produce and sale
3. Different grades are available
4. Custom-made available
5. Precision processing and strict product inspection
6. Advanced Equipments and Professional technicians
7. Gurantee the bulk quality are in accordance with the samples
8. ISO 9001-2008 Quality Control System
9. 100% virgin tungsten carbide powder
10. High speed cutting,wears well & long service life
11. High hardness, high strength, wear resistance
12. 10 years professional experience
3. Grade and application.
| Grades | Density
(g/cm³) | Hardness
(HRA) | T·R·S
(N/mm2) | Application |
YG4C
| 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium hard formations. |
YG6
| 14.80 | 90.0 | 1700 | Mainly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium hard formations. |
YG8
| 14.70 | 88.5 | 2200 | Mainly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium hard formations. |
YG8C
| 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium hard formations. |
| YG9C | 14.60 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary percussive bits, coal cutting bits and tricone bits to
cut medium hard and hard formations. |
| YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary percussive bits, coal cutting bits and tricone bits to cut medium hard and hard formations. |
YG13C
| 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary percussive bits and heavy rock drill bits to cut medium hard and hard formations. |
YG15
| 14.20 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10 | 85.5 | 2600 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.70 | 85.0 | 2800 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
4. Main Product
1) Tungsten carbide buttons/teeth,
2) Tungsten carbide PDC substrates,
3) Tungsten carbide rods/bars,
4) Tungsten carbide brazed tips,
5) Tungsten carbide balls, etc..
5. FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% before shipment .
Q 2. how's the delivery time ?
A. usually it will take about 25 - 30 days for production. But for new molds, the delivery date may 7days more, as we need about 7days to develop and check new molds.
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case / metal drum for protection.
Q 4. Made by cutermized drawing or not?
A. We have mold design department. So we could produce goods with our own molds and with your drawing.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. monthly, we could supply 10-40 tons per month.
Q 8.Where is your market?
A. Our products are popular in Germany, America, Brazil, India, Russia, Indonesia, Philippines, Italy, Pakistan South Africa, Egypt and etc.
Q 9. For more informations for tungsten carbide tools, do contact with me. No matter by Email, by trademanager, by enquiry, by Skype and etc is ok.
Founded in 2002 Jinan Xinyu Cemented Carbide Co., Ltd, is a large enterprise integrating R&D, manufacture and trade of cemented carbide in a whole. Our company mainly produces cemented carbide used in mine drilling, geological prospecting, coal mining, construction engineering, and cemented carbide anvil for diamond production. We also produce and finish all types of cemented carbide die, cobalt powder, tungsten carbide powder, diamond grinding wheel, cutting tools in flue gas turbines, long slices, chemical fiber cutting tools, nozzles specialized in oil fields, pipes and different types of wear-resisting, pressure-resisting and anti-corrosion parts. Besides, we can produce and process parts according to drawings and samples from customers'. Our company has advanced cemented carbide production technology in China, and series of advanced manufacturing equipment and detecting instruments such as low-pressure vacuum furnace, cold isostatic press, vertical vaccuum mixer, coercimeter, cobalt magnetic saturation instrument, high power metalloscope. Our annual output is above 500 tons and is on the rise every year. The quality of our products is stable and reliable.
Adhering to the operation concept of "Pursuing Survival with Quality, Promoting Development with Credit", our company guides our operation by advanced marketing concepts and strives to establish a marketing network system with reasonable layout, smooth channels and fast response. Our products are widely sold in domestic and abroad in Asia, Europe, Africa etc. Therefore, our company has become a leader in China's cemented carbide industry.
Our company always places people first, implements harmonious management and continuously improve employees living and working environment, which forms virtuous circle between development of company and improvement of employees' living, creates stable and harmonious internal environment for company's upgrade and development and achieved benefits both in economic and social.
While enforcing its core competitiveness, our company constantly seeks the expantion of industrial chains and wide international cooperation. Our international market share is unceasingly rising. An international cemented carbide famous-brand company is emerging.
Our factory is located in Jinan hi-tech industrial development zone with beautiful environment, fresh air and convenient transportation system. We warmly welcome all the clients to patronage.
