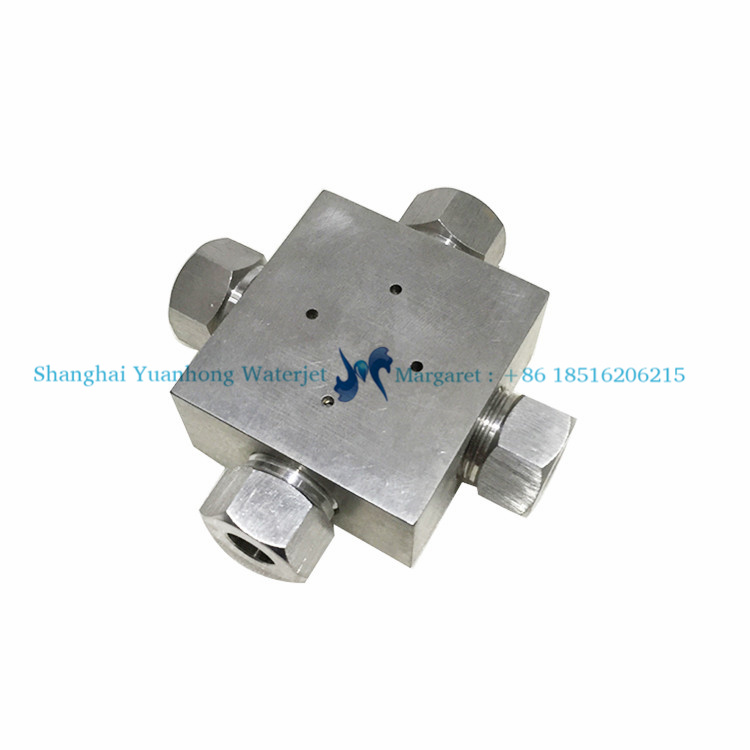

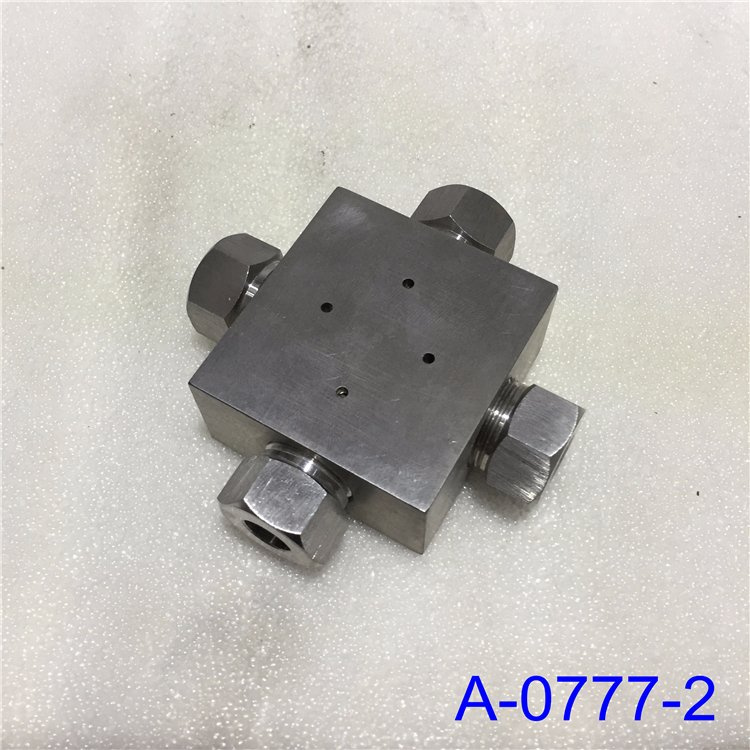

Water Jet Cutter Machinery Spare Parts with High Pressure Cross

Water Jet Cutter Machinery Spare Parts with High Pressure Cross
Price: US $ 30-40/Piece
Min Order: 10/Piece
Pay Type: T/T

Product Description:

A water jet cutter, also known as a water jet or waterjet ,is an industrial tool capable of cutting a wide variety of materials using a very high-pressure jet of water, or a mixture of water and an abrasive substance. The term abrasivejet refers specifically to the use of a mixture of water and abrasive to cut hard materials such as matel or granite, while the terms pure waterjet and water-only cutting refer to waterjet cutting without the use of added abrasive, often used for softer materials such as wood or rubber.


Name Water jet cutting machinery spare parts
Code YH-waterejt connector for high pressure pump
Applicationwaterjet cutting head for glass,wood ,stone,,steel.




Advantages & Versatility:

Water Jet cutting uses high pressure water to cut softer material like rubber and foam. When abrasives are added to high pressure water the resulting abrasive jets cuts harder material like steel, glass, titanium, hard rock, bullet-proof glass, and ceramics etc. The high pressure water is forced through a tiny orifice to concentrate high energy in a tiny area to cut. The water is pressurized using an intensifier pump to a pressure of 6200 bar (90,000 psi) and forced through a tiny orifice of 0.15 mm to 0.35 mm diameter creating a high velocity of beam.



Advantages of Water Jet cutting


1.Environment friendly: With Water and sand as cutting medium, no hazardous wastes are generated and the cutting process is environmental friendly.

2.High thickness cutting: Water Jet can cut up to 170 mm Stainless Steel; 250 mm Aluminium ; 300 mm Titanium.

3.High Accuracy: Water Jet cutting machines can cut material with a positional accuracy of +/- 0.03 mm.

The indicated value refer to a measured length of 1000 m at RT 20 C +1 C according to VDI/DGQ3441.

4.Machine virtually can cut any 2D shape: Water Jet can cut any 2 dimensional profile from most of the material.

5.High edge quality: Leaves a satin smooth finish thus reduces secondary operations.

6.Minimal or no fixtures required: As the force of the water jet is vertically down, no fixtures are required for most of the material due to negligible side forces. Thin sheets may require some weight to be placed.

7.Saves raw material: When machining or roughing out expensive materials such as titanium, the scrap still has a high value. This is because they will give chunks, not chips. It is possible to get more parts from the same material because of the abrasive jets low kerf width.

8.One tool universal application: Water Jet uses one cutting head for all material or operation, no need to change tool based on material or operation. The figure shows the machining of 2D shape with single tool for multiple operations such as slots, radii, holes, and profile in 1 to 2 minute setup.


Prod Model: YH-waterjet fitting
Max Operating Pressure: 55 K Psi Pressure
Weight: 0.5 Kg
Name: Waterjet Cutting Machine 87k Psi Spare Parts
Connection: Welding
Type: Equal
Technics: Forged
Material: Stainless Steel
Color: Silver
Certification: Ce
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
