Home Toolbuy Products W Series Steel Low Profile Hydraulic Internal Hexagonal Wrench

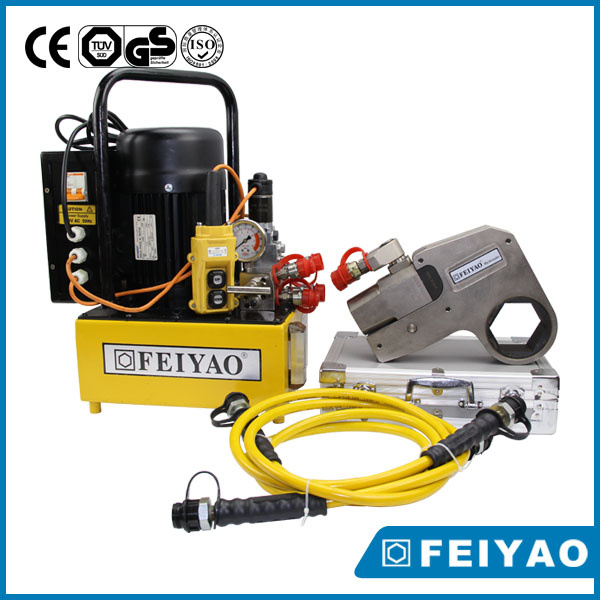

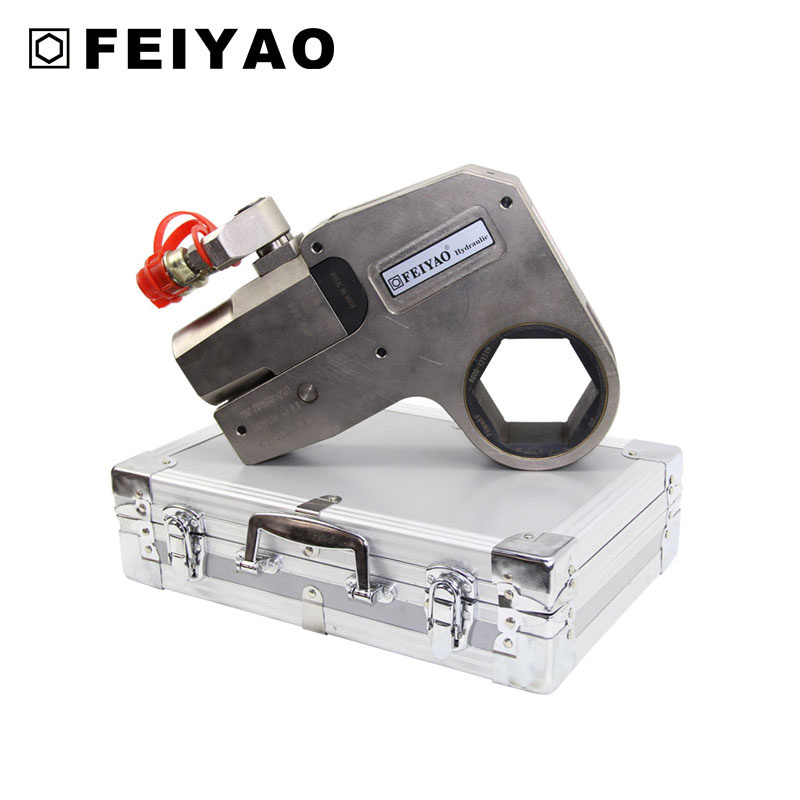

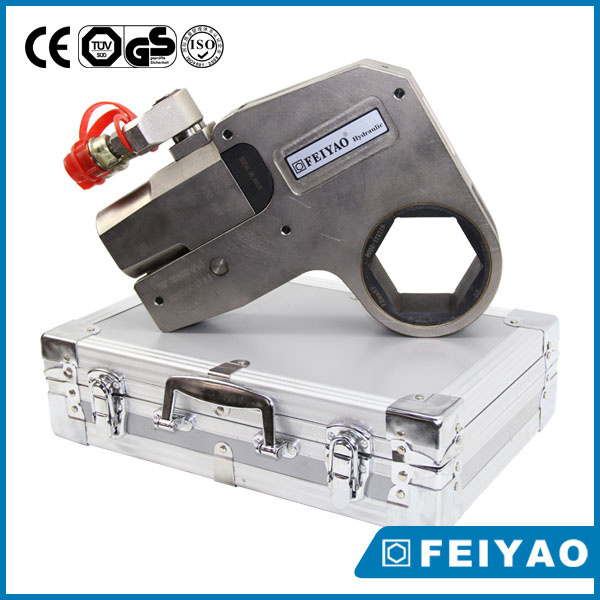

W Series Steel Low Profile Hydraulic Internal Hexagonal Wrench

W Series Steel Low Profile Hydraulic Internal Hexagonal Wrench
Price: US $ 1000-8000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
W Series Steel Low Profile Hydraulic Internal Hexagonal Wrench

Feartures:

 ♣ Rigid steel design, durability, reliabilty and safety

 ♣ No tools needed for changing hexagon heads

 ♣ Versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range

 ♣ Innovative, pinless wrench construction with quick release drive and automatic crank engagement fast operation due to the large nut rotation per wrench cycle(30 degree)and rapid return stroke, double acting

 ♣ Constant torque output provides high accuracy (±3%) across the full stroke

 ♣ 360 degree swivel manifold with screw lock couplers

 ♣ Optional interchangeable metric and imperial hexagon heads and reducer inserts

Product Parameter

ModelHexagon Driven Box  SizeTorque RangeWeight Without Driven(Kg)
inchmmFt.lbsNm
FY-W-20001(1/8)-2(3/8)30-60200-2000271-27121.4
FY-W-40001(5/16)-3(3/8)36-85400-4000542-54232
FY-W-80001(7/8)-4(1/8)50-105800-80001084-108463
FY-W-150002(7/16)-4(5/8)65-1151500-150002033-203372
FY-W-220002(15/16)-5(3/8)75-1352250-225003050-305107.7
FY-W-350003(1/8)-6(1/8)80-1553500-350004745-4745411.4

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine;

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI TORQUE WRENCHES BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TORQUE; 2. BOLT DIAMETER OR NUT AF SIZE. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

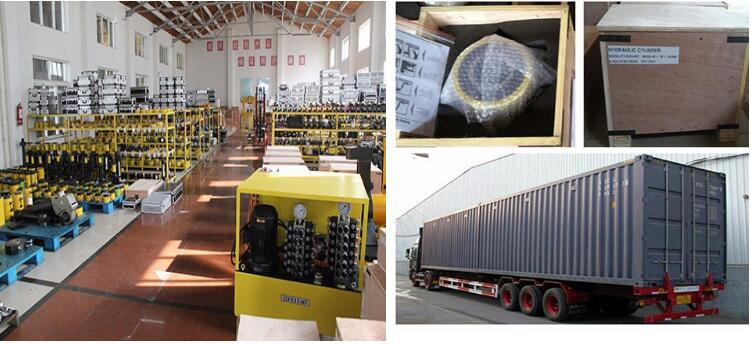

Factory Show

Packaging and Shipping

FAQ

Q1: How to contact sales?
A1: Please call: +86-18036786358 for pre-sales.

Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty?
A6: 12 months against B/L date.

Contact Information

Sales Manager: Angela Zhang
Tel: +86-523-86183388
Fax: +86-523-86186999

Mobile: +86 18036786358
IMO: 0086 18036786358

Prod Model: FY W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: W Series Steel Low Profile Hydraulic Internal Hexa
Business Type: Manufacturer
Color: Steel Color
Working Pressure: 70MPa
Material: Steel
Torque Range: 271-47454nm
Drive Box Size: 30-155mm
Weight Without Driven Box: 1.4-11.4kg
Payment Term: T/T
Warranty: 1 Year
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.

Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.

Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.

At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.

The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
