(VSI200744) Drilling Machine Used Slewing Bearing Slewing Ring
| Price: |
US $ 100-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

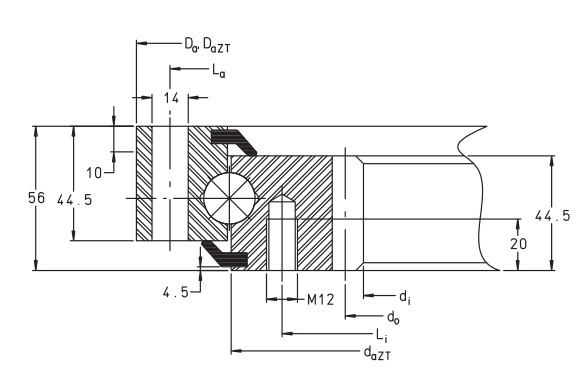

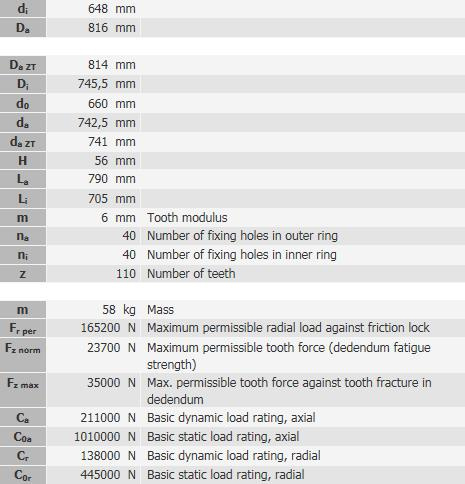

Structure and parameters of VSI200744 bearing
NOTE:- Models in this brochure are standard,inner and outer diameter are free tolerance. If there are matching requirements of host-machine,please mark the size and precision on the contract or attached drawing.
- Provides design & solutions for OEM, each special, individual need.
VSI200744 Bearing is composed of 2 seat-rings, and with the features of compact structure, light weight. The balls contact with the circular raceway at four points, via which the axial force, radial force and tilting moment can be born simultaneously.Mainly be used in slewing conveyors, welding arms and manipulators, small and medium cranes, excavators, and other engineering machines. Advantages of EVON bearing
1.Completely interchangeable with original
2.Low noise
3.Smooth & stable run

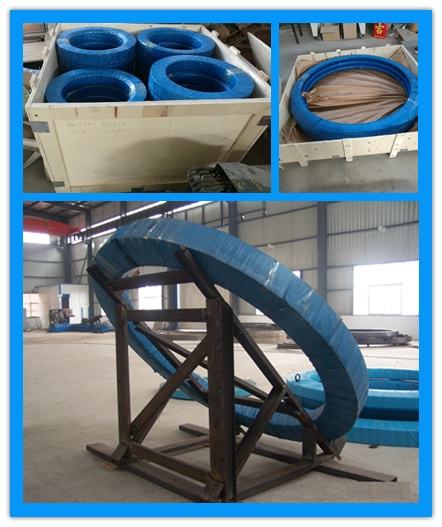

Packaging and placement

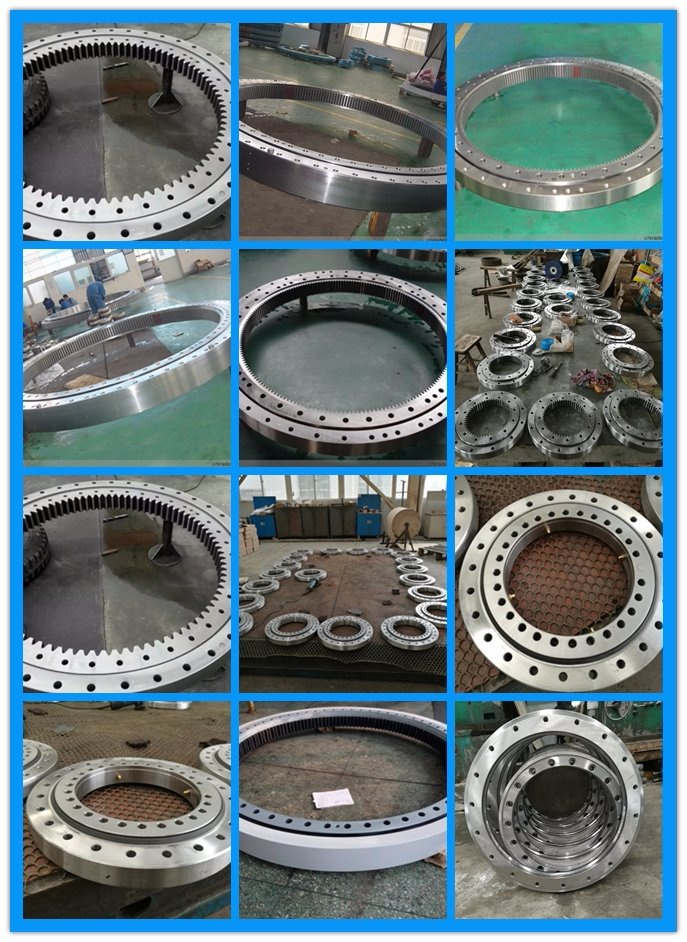

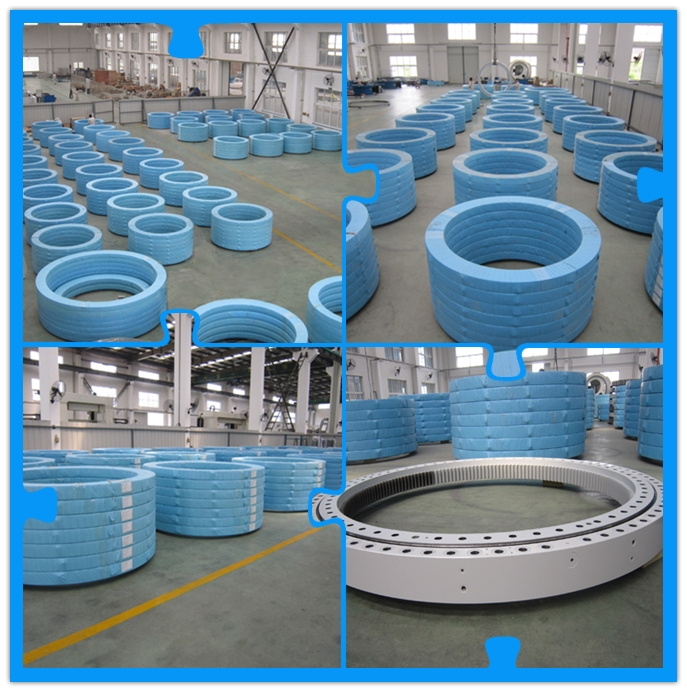

Factory scene shooting
Our strength:
1.Rich experience
Our technical department has 5 experienced engineers, who have been with our factory for more than 10 years.They are the core of our factory.
2.Pay attention to quality
We don't have so much stock compared to other factories.
The pursuit of quantity will not pour deep feelings on each bearing. We want to do a good job of each bearing that the customer needs, not a warehouse with a lot of stock.
3.Continue to challenge
We undertake OEM and continue to expand the scope of OEM bearings.FAQ:| Material | 50Mn ,42CrMo ,50MnT and so on. |
| Delivery time | 3-25 days . |
| MOQ: | 1 Pcs |
| Payment terms | T/T or LC |
| Certification | ISO 9001-2008 Quality System Certification |
| Cage | Stamping steel/Brass/Nylon/Ceramic |
| Application | Mine machine, port hoisting machine, port oil transfer equipment onshore and
offshore crane,excavator,concrete machine,
paper machine, plastic and rubber machine, weave machine, steel plant,
electronic power plant, wind power generator,
construction and industry machines or equipment. |
| Features | Slewing bearing is also called:Slewing ring bearing/Turnable bearing/Slewing ring etc.
Slewing Ring Bearings can accommodate axial, radial and moment loads acting single
or in combination and in any direction.
They are not mounted in a housing or on a shaft, but directly to a seating surface.
The inner and outer ring are supplied with mounting holes. Both rings may have
integral gears.
They are also referred to as slewing rings and tabletop bearings.
Slewing ring bearing can perform oscillating (slewing) as well as rotating movements.
They may be used without gears or with internal or external gear |
| Structure | - Single-row 4-point contact ball series
- Single-row crossed roller series
- Double-row ball series
- Three-row roller series
- Roller and ball combination series
- Quenching slewing ring bearing
- For Non-gear,External Gear,Internal Gear
|
| Service | OEM service, Customization service, Customers' Logo service; |
| Available Brand | OEM |
Company Introduction EVON bearings,worms drives, slewing bearings, gears, shaft prove every day to be important structural and connection elements , they can be widely used in lifting & transport machinery, mining machinery,construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, cement plant, steel plant, coal plant electronic power plant, wind power generator, other construction and industry machines or equipments and other large rotary device. Almost all EVON products are exported, mainly to countries of the European Union, the USA, the Middle East, the South American, the Africa, the Austrilian and Asia areas and to the Russian Federation. Via daughter companies in the EVON GROUP and a network of contracted dealers, In the process of cooperation with our customers, we have made it a principle to establish a lasting and rewarding partnership with our customers by providing efficient service with top quality and minimizing the cost. Aiming for consistent commitment to quality and customer service, Evon Engineering attaches great importance to research and development to ensure better product quality and service from its very establishment. The quality of EVON products are based on excellent specialist and technical level of constructors and technicians, highly qualified operators, experienced production workers and we must not forget the most modern production and testing machinery and equipment.
| Prod Model: |
VSI200744 |
| Wgt.: |
58kg |
| D: |
684mm |
| Model No.: |
Slewing Bearing |
| Warranty: |
12 Months |
| Application: |
Excavetor, Crane |
| Delivery: |
15 Days |
| MOQ: |
1 |
| OEM: |
Available |
| Business Type: |
Factory |
| Rich Experience: |
10 Years Experience in Slewing Bearing |
Luoyang Evon Engineering Co., Ltd is a manufacture of bearings, worm drivers, slewing bearings, gears, shaft and engineering parts.
EVON bearings, worm drivers, slewing bearings, gears, shafts prove every day to be important structural and connection elements, they can be widely used in the lifting&transport machinery, mining machinery, construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, cement plant, steel plant, electric power plant, wind power generator, other construction and industry machines or equipment and other large rotary devices.
The products made by EVON Engineering Co are mainly exported to the countries of the European Union, USA, the Middle East, the South American, the Africa, Austrilian and Asia areas and the Russian Federation, in the process of cooperation with our customers, we have made it a principle to establish a lasting and rewarding partnership with our customers by providing efficient service with the top quality and minimizing the production cost.
Aiming for consistent commitment to the quality of products and customer service, Evon Engineering attaches great importance to research and development to ensure better product quality and service from its establishment. The quality of EVON products are based on the excellent specialist and technical level of constructors and technicians, highly qualified operators, experiences production workers.
