Vertical Diamond Cutting Wheel Repair CNC Lathe Machine Wheel Hub

Vertical Diamond Cutting Wheel Repair CNC Lathe Machine Wheel Hub
Price: US $ 73000-81000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

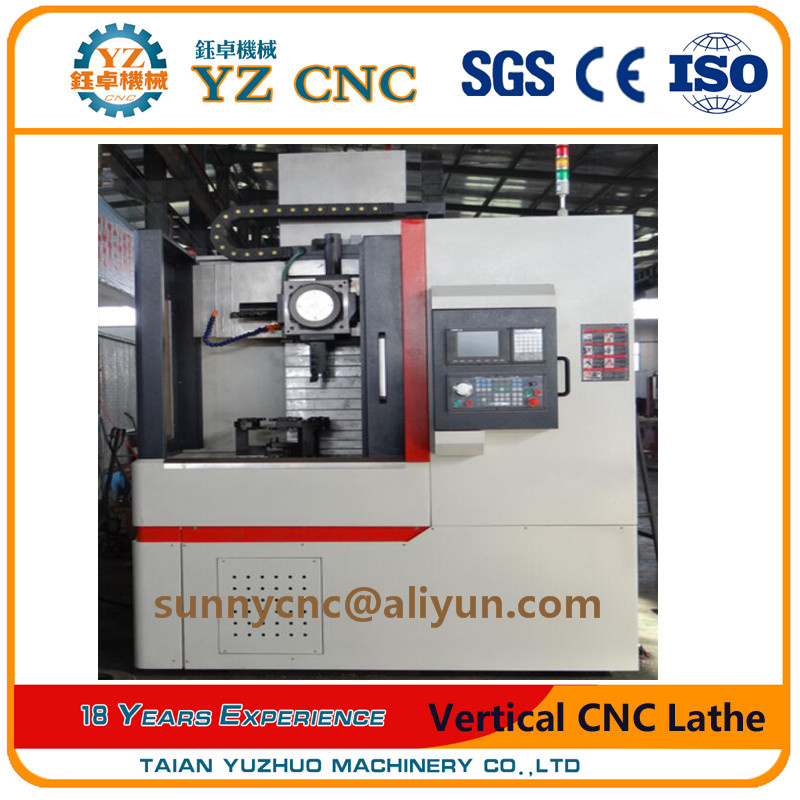

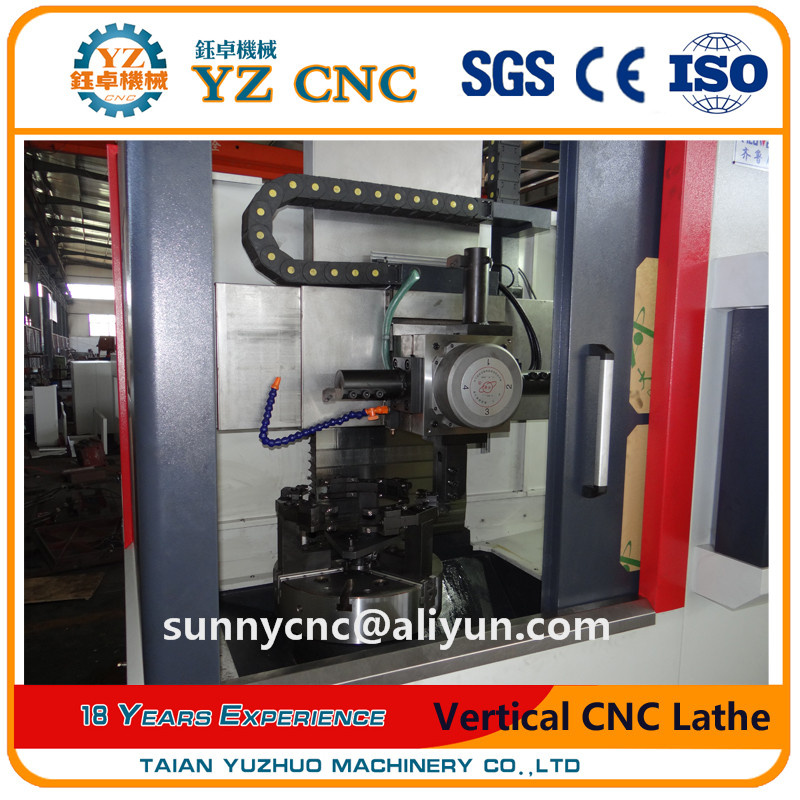

New Condition Vertical CNC Lathe Machine Turning Metal Disc Type

ModelVCK1300
Max.swing over bedmm1300
Max.cutting diametermm1210
Diameter of the worktablemm1000
Number of spindle speedsrpm80-350
Cutting feed ratemm/min0.1-1000
Turret vertical moving distancemm750
Turret level of mobile distancemm720
Longitudinal fast shift speedmm/min8000
Vertical fast shift speedmm/min6000
Stations of tool carrier 4

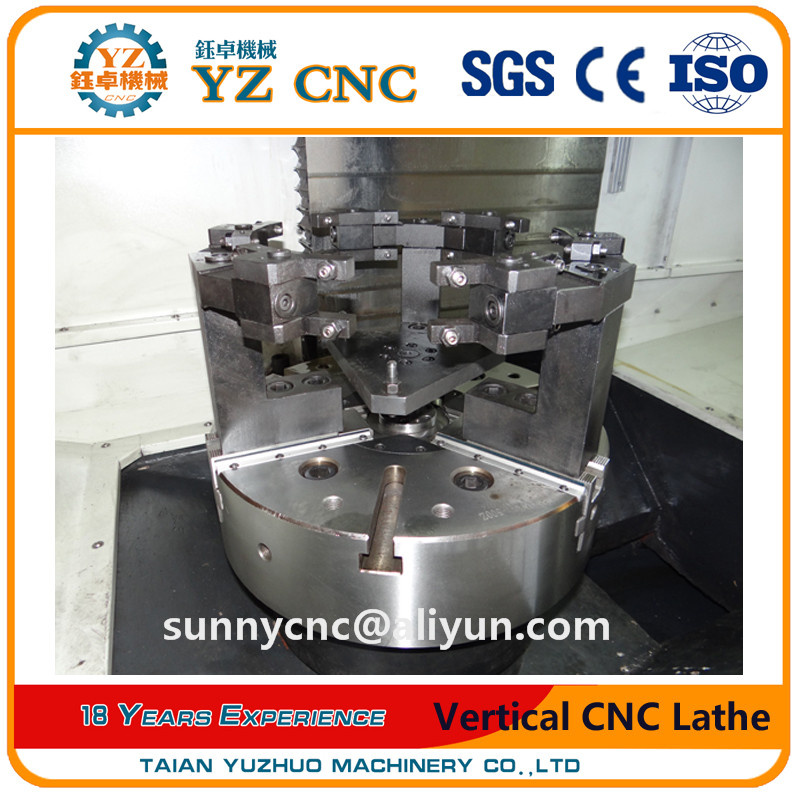

Chuck sizemm800
Tool bar sectionmm40x40
Positioning Repeatmm0.015
Positioning accuracymmX:0.018   Z:0.02
Motor powerkw22
Machine sizeL W H mm2700x23003x200
Machine weightkgs8600

1. CNC system: Taiwan's SYNTEC 6TA
2. Feed motor 15Nm absolute value servo motor
3. The spindle motor 7.5 / 11Kw 143Nm (double base speed)
4. Spindle unit
5. Taiwan, silver screw, NSK Bearings

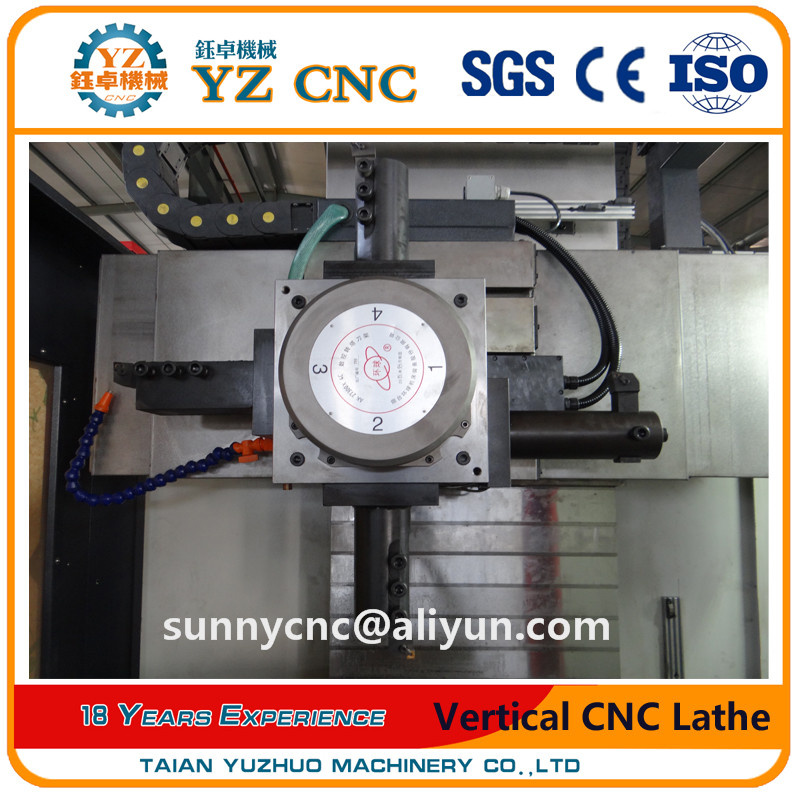

6. 4-station electric turret
7. Full protection sheet metal shield.
8. Mobile manual pulse generator.
9. The screw, guide rail automatically forced oil lubrication.
10. The cooling part.
11. Tull protective cover.
12. Hand - cranked pulse generator;
13.Warning lights.


After-sale Services:
Warranty is one year.
We would offer the parts (quality problem) free of charge during this period, freight collect.
Note :  GSK ,Servo driven, motor and transformer, Warranty is 3 years.


YZ CNC Company Information:
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and We offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.








Sunny
Sales Manager
Company Name:Taian Yuzhuo Machinery Co.,Ltd
Mob: +86-15288914531

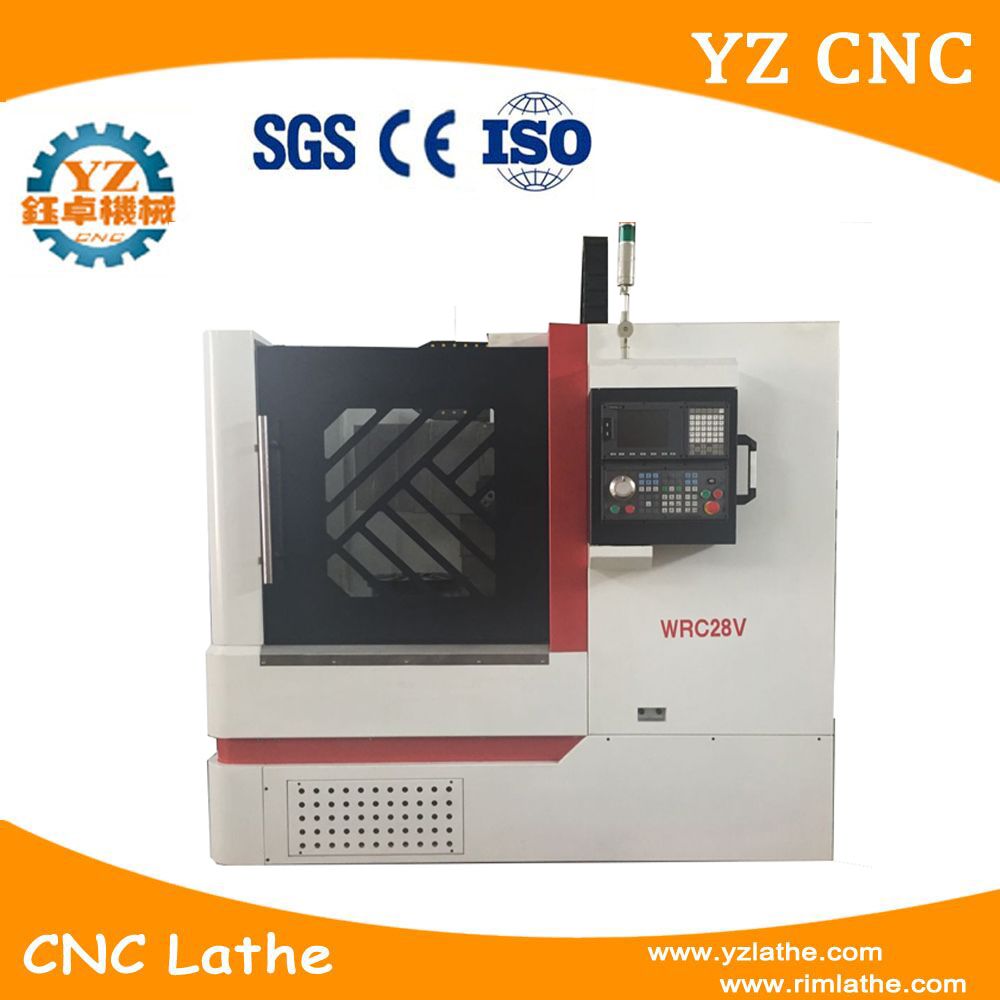

Prod Model: WRC28V
Max Swim Over Bed Diameter: 1300mm
Max Cutting Diameter: 1210mm
Diameter Of The Worktable: 1000mm
Spindle Speeds: 80-350
Turret Vertical Moving Distance: 750mm
Tool Stations: 4
Chuck Size: 800mm
Tool Bar Section: 40X40
Motor Power: 22kw
Positioning Accuracy: X 0.018 Z 0.02
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Open-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools

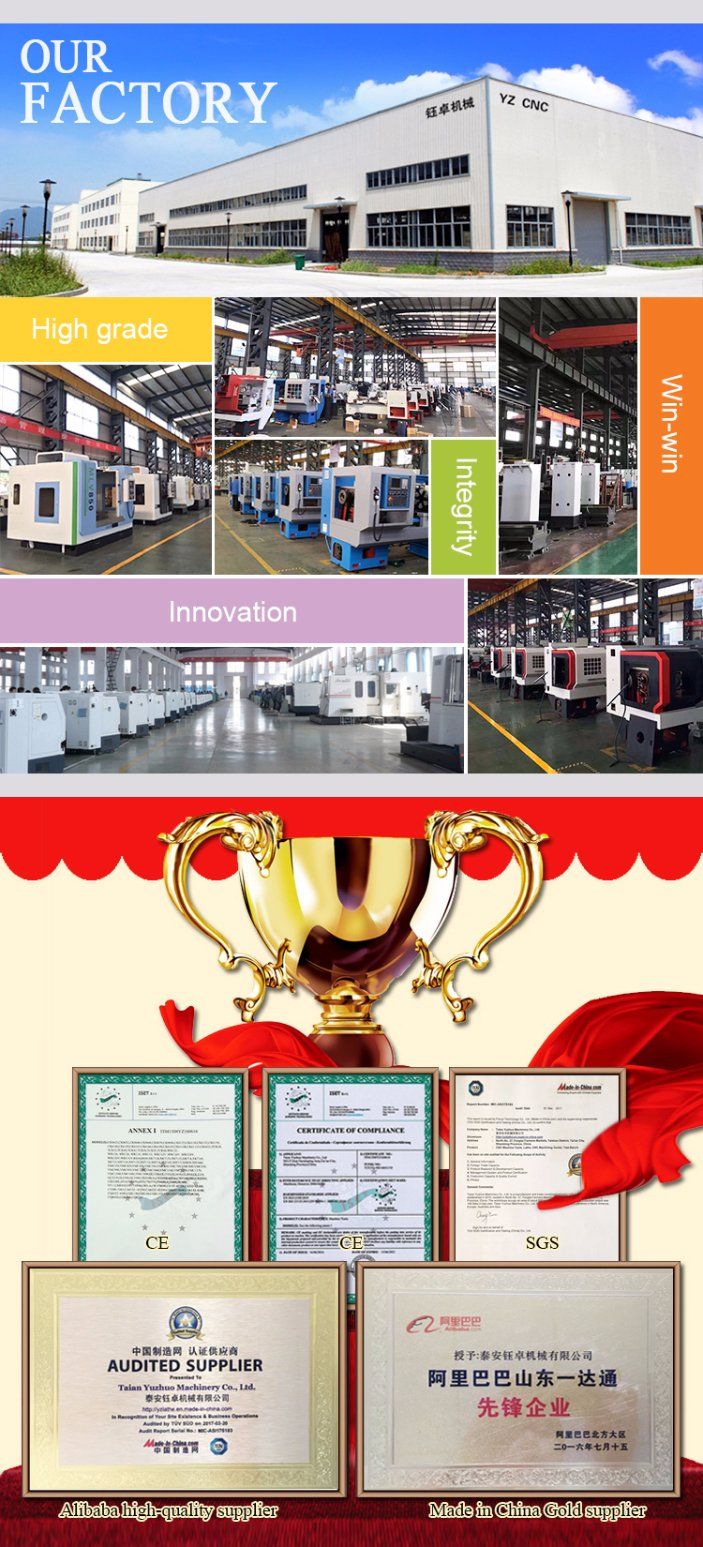

Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
