V Groove Track Roller Bearing RM2zz for CNC Machine

Price:	US $ 0.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Baotou Guanying Trading Co., Ltd.

Showroom Product Company Profile

V groove track roller bearing RM2ZZ for CNC machine

V guide roller bearings is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.
For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.

The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller has higher.

Feature

The surface of outer ring is the "W" profile formed by the two "V" with an angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a "V' profile with the angle of 90 degrees, and also the internal side face can be matched well with the cylindrical track.

Application

V groove bearings are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track. They are widely used in CNC machine,Plasma machine etc.

Other model

Designation				A1	A2	Chamfer r/min			Weight
	Bore	O.D.	Width			mm	Load
	mm	mm	mm
	D1	D	B	A1	A2	R/min	Cw(KN)	Cow(KN)	Kg
W1	4.763	19.56	7.87	7.9.	11.86	0.3	2.2	1	11
W1X	4.763	19.56	7.87	7.93	11.86	0.3	2.2	1	11
W2	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5	38
W2X	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5	38
W3	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9	130
W3X	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9	130
W4	15	59.94	19.05	25.4	34.93	1	14.8	8.2	280
W4X	15	59.94	19.05	25.4	34.93	1	14.8	8.2	280
RM1ZZ	4.763	19.56	7.87	7.9.	11.86	0.3	2.2	1	11
RM1 2RS	4.763	19.56	7.87	7.93	11.86	0.3	2.2	1	11
RM2ZZ	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5	38
RM2 2RS	9.525	30.73	11.1	12.7	18.24	0.3	4.9	2.5	38
RM3ZZ	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9	130
RM3 2RS	12	45.72	15.88	19.05	26.98	0.6	9.4	4.9	130
RM4ZZ	15	59.94	19.05	25.4	34.93	1	14.8	8.2	280
RM4 2RS	15	59.94	19.05	25.4	34.93	1	14.8	8.2	280

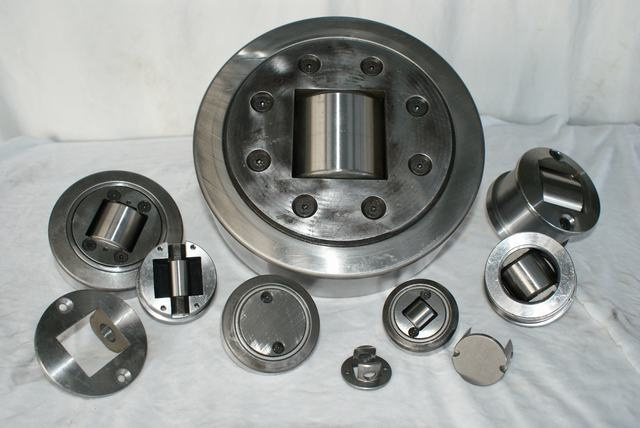

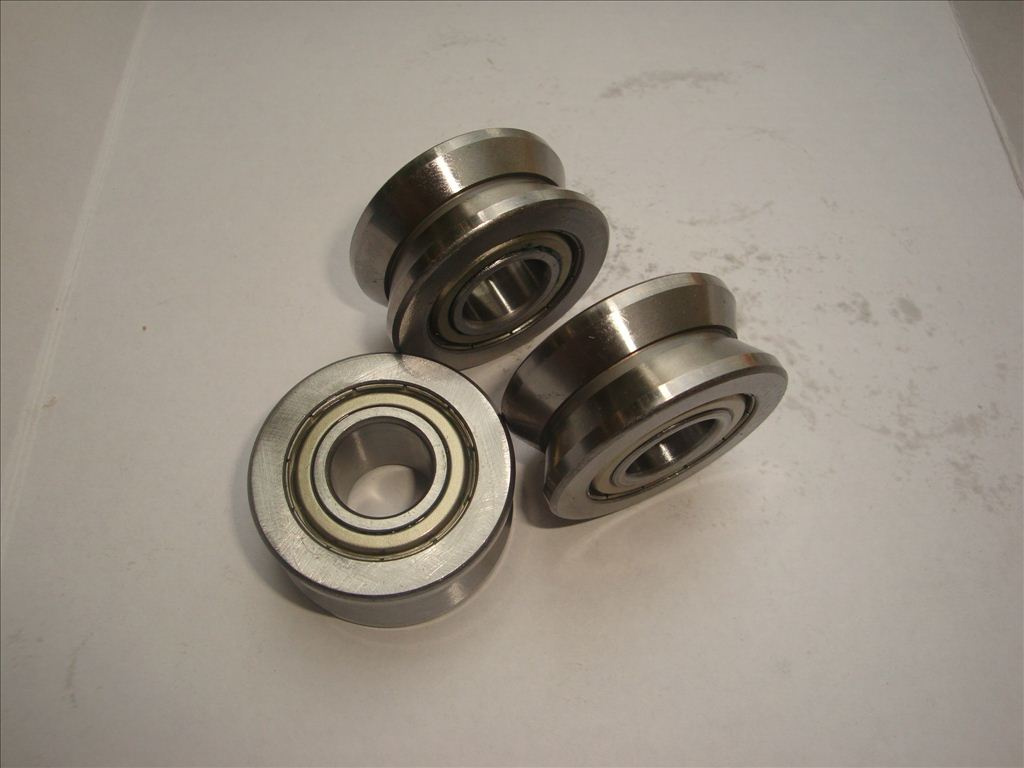

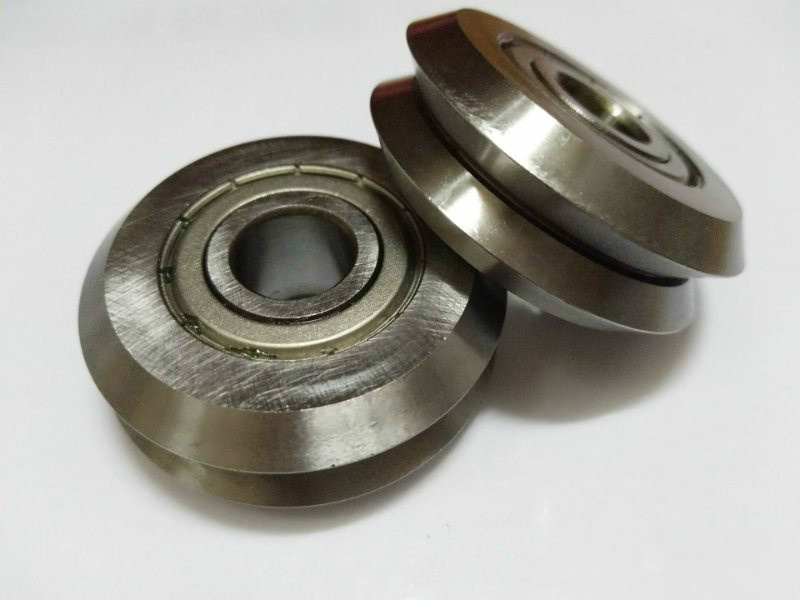

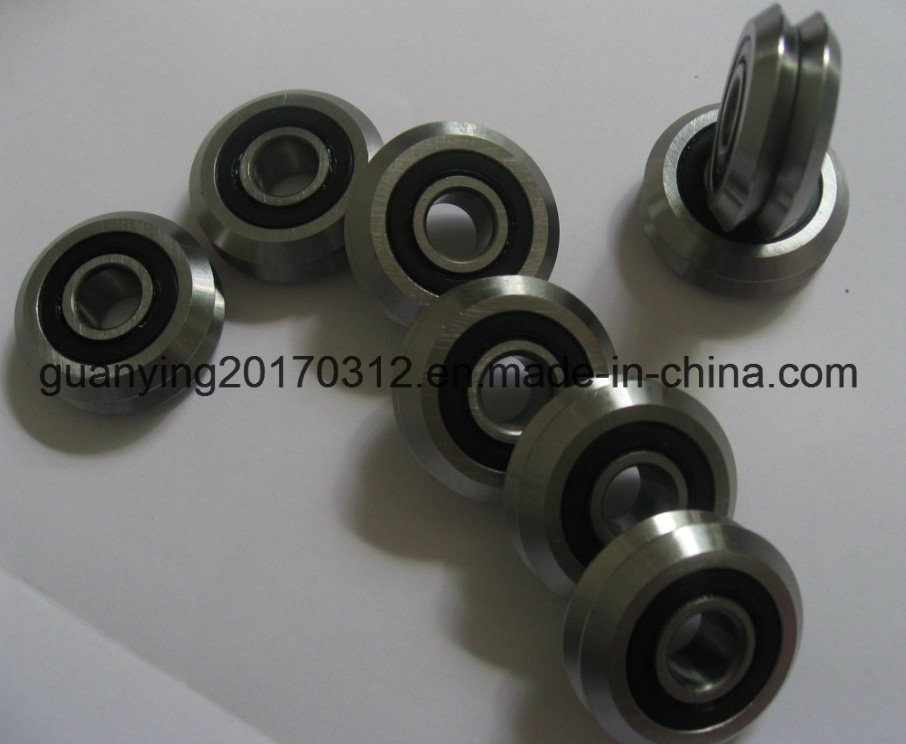

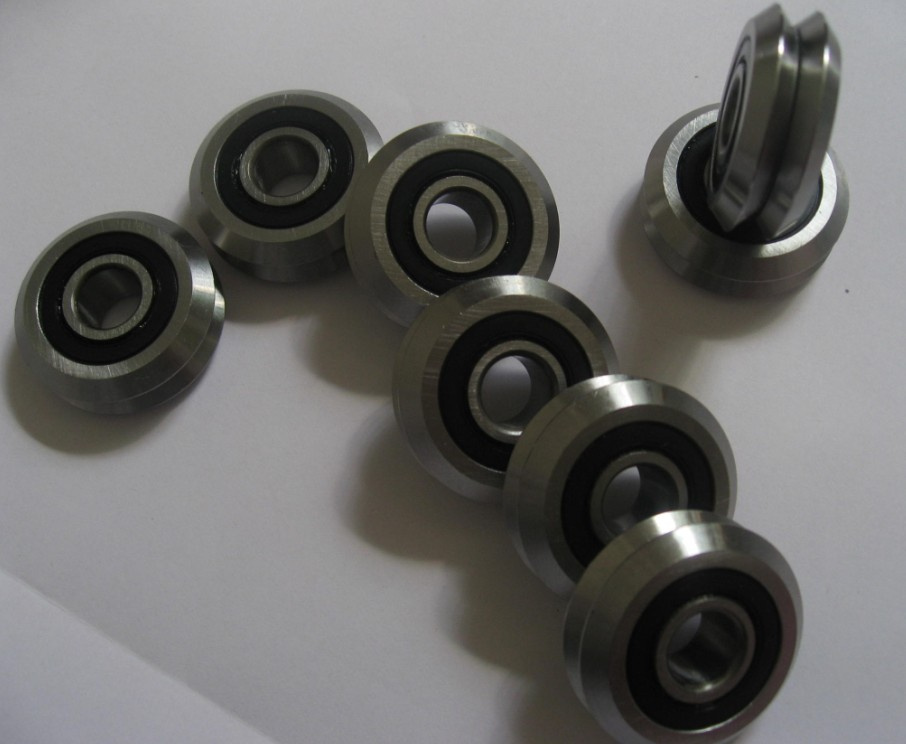

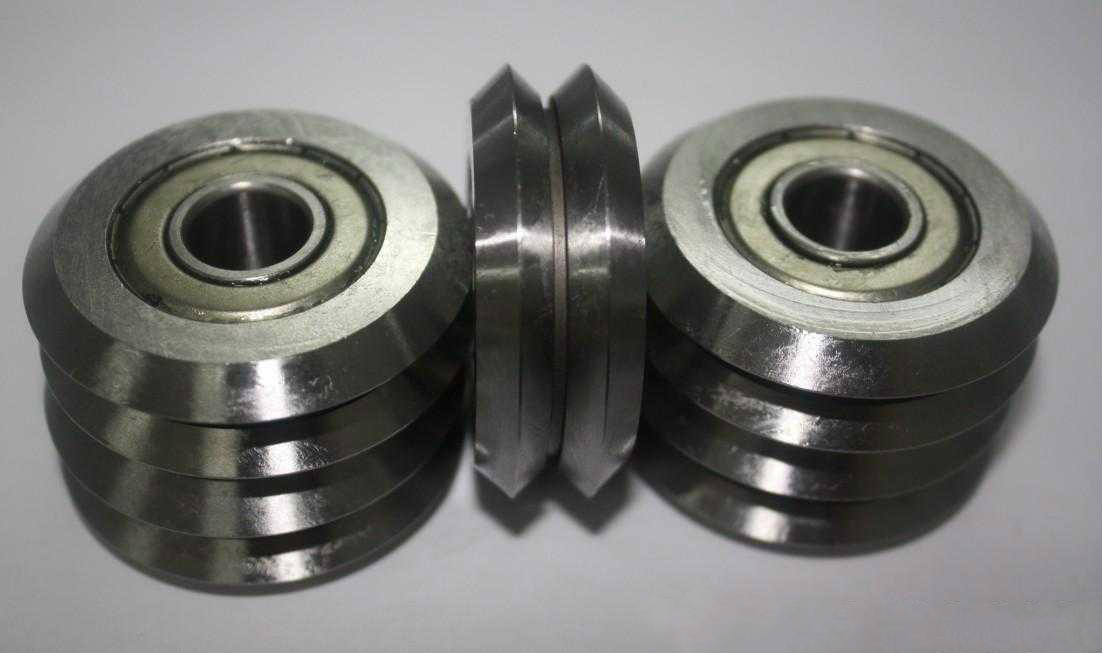

Product show

SG Series Embroidery machine track roller bearing models:
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N

LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41 ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ

60series	606,607,608,6000,6001,6002,6003,6004,6005,6006,6007,6008,6009,6010,6011,6012,6013,6014,6015
62series	626,627,628,629,6200,6201,6202,6203,6204,6205,6206,6207,6208,6209,6210,6211,6212
63series	6300,6301,6302,6303,6304,6305,6306,6307,6308,6309,6310,6311,6312
67series	6705
68series	686,687,688,689,6800,6801,6802,6803,6804,6805,6806,6807,6808,6809.6810
69series	696,697,698,699,6900,6901,6902,6903,6904,6905,6906,6907,6908,6909,6910
Inch series	1603,1604,1605,1606,1607,1614,1615,1616,1620,1622,1623,1628,1633,1638,1640,1641,R3,R4,R6, R8,R10,R12,R14,R16,R168,99502H,499502H
16000Series	16001, 16002, 16003, 16005, 16007

Welcome to your inquiry !

Prod Model:	RM2ZZ
Precision Rating:	P0 P6 P5 P4 P2
Seals Type:	Open Zz 2RS RS
Lubrication:	Grease Lubrication
Groove:	U V W Groove
Application:	Industrial Robot, Cutting Equipment
Cage Material:	Nylon;Steel;Brass ,Brass

Baotou GUANYING Trading Co., Ltd is the enterprise which is specialize in manufacturing and exporting a variety of BEARINGS in China. We have the strong economic base and comprehensive technology. We have excellent equipment, advanced technology, strong technical force and reliable product quality, adopt a scientific approach to manage. And the products are often sold in Europe, North America, Southeast Asia and other countries.

Our company has been implementing purpose that "people-oriented" management model, adhere to "quality first" and the customer is "God". Providing the market with good quality and reasonably priced products, and having been recognized praised, thereby established a trusting relationship. We are willing to jointly develop the market, and establish long term partnership on the basis of mutual benefit with customers at home and abroad. We sincerely welcome customers to visit our factory and negotiate business.

Our aim is "exchange for your trust and support, mutual benefit and win-win with the good service and empressement". We are willing to wholeheartedly work with colleagues from home and abroad to create the future.
