V-Belt Driving Garbage Incineration Power Plant Fan Cleaning Cold Air Blower
| Price: |
US $ 130-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
V-belt driving garbage incineration power plant fan cleaning cold air blower
Product Description
Centrifugal blower is capable of blowing air, ocean air containing salt vapour, and corrosive air which contains oil vapour and a small quantity of acid steam generated by the natural evaporation of the batteries.
Centrifugal blowers are widely used in ventilation, dust extraction and cooling of factories, mines, tunnels, cooling towers, vehicles, ships and buildings; ventilation and suction of boilers and industrial furnaces; drying and selection of cereals; wind tunnel wind sources and etc.
Parameter| SPECIFICATIONS FOR CENTRIFUGAL BLOWER |
Centrifugal Blower Performance Parameters | Air Volume | m3/h | 2033 - 1230000 |
| Pressure | pa | 145-149200 |
| Temperature | centigrade degree | 0-750 |
Centrifugal Blower Specification
| Impeller diameter | mm | 210-3300 |
| Driving model | Direct driving, coupling drive, belt driving |
| Standard configuration | Blower, motor, adjusting door, supporting |

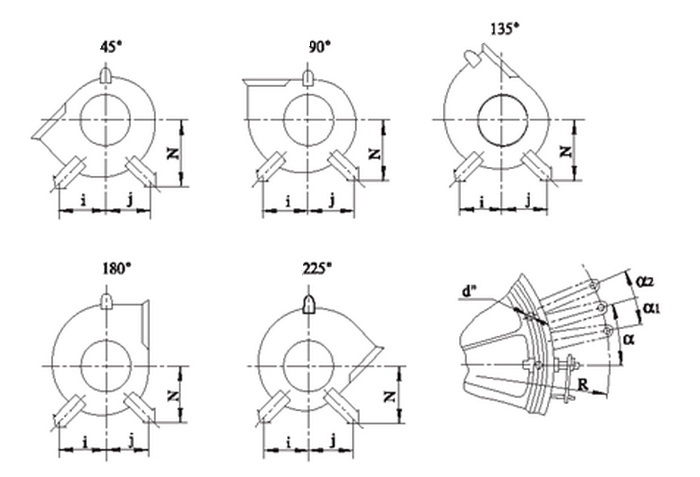

Air Outlet Pattern
Main classifications of Centrifugal blower 1. Industrial centrifugal blower
2. Dust removal/environmental centrifugal blower
3. Anti-corrosion / explosion-proof centrifugal blower
4. High temperature boiler ventilation and suction blower
Company Information
DICHENG centrifugal blowers contain more than 100 series and can operate with multiple blowers to meet customers' various air volume and pressure requirements. The blowers can be made by high-quality steel, stainless steel, glass steel or other corrosion-resistant materials according to customer requirements. It is suitable for various occasions and is widely used in boilers, workshops, mines, textiles, oil fields, chemicals, kilns, metallurgy, building materials and other industries. The centrifugal blowers produced have been inspected by the Import and Export Inspection and Quarantine Bureau and exported to all countries in the world and have been trusted by customers from various countries.
Certifications
FAQ1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Purpose
D: Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
2. How long is your warranty?
Our warranty is 12 months after received the centrifugal blowers.
3. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
4.What are your terms of payment?
1. TT 40% AS THE ADVANCE PAYMENT AND TT 60% AFTER INSPECTION BEFORE SHIPPING.
2. 100% IRREVOCABLE L/C AT STGHT.
Contact Us
Shandong Dacheng Machinery Technology Co., LTD
Address: Zhangqiu Mingshui, Jinan City, Shandong province, China 250200.
Website: http://www.chinadicheng.com
Tel: +86 0531-83216898
Fax: +86 0531-83216898
Cellphone: +86 013188890202
| Prod Model: |
DCB |
| Type: |
Centrifugal Blower |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Power: |
2.2kw - 400kw |
| Voltage: |
220V/380V/440V/480V/660V |
| Air Volume: |
2033 - 1230000m3/H |
| Rotaring Speed: |
200 - 2900 Rpm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Application: |
Industrial Blower Ventilation and Suction |
| Feature: |
Large Volume/ High Pressure |
| Flow Direction: |
Centrifugal |
| Certification: |
CE |
| Material: |
Steel, Stainless Steel, Fiberglass and etc. |
| Usage: |
for Ventilation Exhaust |
| Pressure: |
145PA - 149200PA |
Shandong Dacheng Machinery Technology Co., Ltd. is a professional large-scale manufacturer of all types of blowers, integrating development and production together. Our main products include Roots Blower, Roots Vacuum Pump, Centrifugal Blower, Multistage Centrifugal Blower and Air Suspension Turbo Blower. Our company was established in 2004, and we have many years of history in the blower industry. Located near Jinan, we enjoy convenient water, land and air transportation.
DICHENG Tri-lobes and Twin-lobes Roots Blowers adopts the advanced technology of Japan, its air capacity is 0.45m3/min-434m3/min, the pressure is from -40Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation. This air blower is mainly applied to such trades as water treatment, air transport, mine, vacuum packaging, aquaculture and etc.
DICHENG C Series Multistage Centrifugal Blower is produced by turbine machinery technology from US. The air capacity is from 35 m3/min to 220 m3/min, the pressure is from -40 Kpa to 98 Kpa. The advantage of the multistage centrifugal blower is high efficiency, low noise, high rotating speed(3550 rpm), small vibration and good energy saving effect. Installation don't need anchor bolts. The blower is cooled by air and not need water cooling. Blower has temperature sensor and vibration sensor to real-time monitor blower operation.
DICHENG DC Series Air suspension turbo blower is developing with TNE Korea Co., Ltd from Korea. The Core components(PMSM) and super high speed controller are imported from Korea. The air capacity is from 6 m3/min to 320 m3/min, the pressure is from 40 Kpa to 150 Kpa. The advantages of the air suspension turbo blower are air suspension bearings, aviation aluminum alloy three-way flow impeller, closed loop air cooling system, modular control and detection system, Anti-surge protection and etc.
DICHENG centrifugal blowers contain more than 100 series and can operate with multiple blowers to meet customers' various air volume and pressure requirements. The blowers can be made by high-quality steel, stainless steel, glass steel or other corrosion-resistant materials according to customer requirements. It is suitable for various occasions and is widely used in boilers, workshops, mines, textiles, oil fields, chemicals, kilns, metallurgy, building materials and other industries. The centrifugal blowers produced have been inspected by the Import and Export Inspection and Quarantine Bureau and exported to all countries in the world and have been trusted by customers from various countries.
Our company employs more than 300 workers; Through the efforts of our entire staff, we have become the leading manufacturer of blowers in China. DACHENG people have continuously tried to improve product quality, purchase large-scale precision production and testing equipment more than 20 sets, introducing CNC machining center, Large CNC milling machine, Dynamic balance detector and etc. Moreover, we have a CAD Design Center, giving our company good technical capabilities. Our annual production capability is 10 thousand sets of blower.
Currently, DACHENG blower is already exported to America, Australia, Korea and 20 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new multistage centrifugal blower and now is developing air suspension turbo blower. Till now, we attained ISO9001 quality management certification and CE safety certification.
Dacheng Machinery will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
