Used TR250D Rortary Drill Machine for Foundation Piles on Sale with Half Price

Used TR250D Rortary Drill Machine for Foundation Piles on Sale with Half Price
Price: US $ 300000-340000/Set
Min Order: 1/Set
Pay Type: L/C,T/T

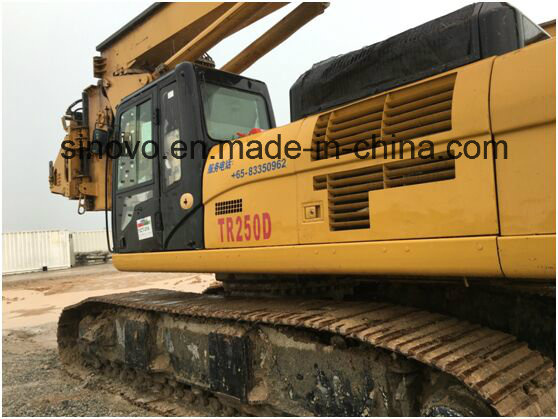

Used TR250D Rotary Drilling Rig

Rig details for reference

One unit of used TR250D rotary drilling rigs:
SN:506810070027
Original Caterpillar base: CAT0330D
Power: NBD90150
Base NO.:L5X00107
C-9 electric diesel engine: THX21562
Producing year: 2010.02.16
Working hours: 9954 hours
One set of interlocking Kelly bar 4x14.5m

Kelly bar diameter: 470mm
Kelly bar max drilling depth: 53m


Main Features:

- High stability and quality original caterpillar base
- Compact powerful rotary head
- Emergency mode of operation for engine
- PCL controller for all electrically actuated functions, colorful LCD display
- Mast support unit
- Original Patented driving structure of double motors and double reduces
- Controlled free-fall main and auxiliary winch
- Innovative enhanced electro-hydraulic proportional system
- Ease of transport and quickly assembly


TR250D Rotary Drilling Rig - One of the BEST Selling models over the world!

Technical Parameters
 Euro StandardsU.S. Standards
Max drilling depth  80m262ft
Max hole diameter  2500mm98in
Engine modelCAT C-9CAT C-9
Rated power 261KW350HP
Max torque 250kN.m184325lb-ft
Rotating speed  6~27rpm6~27rpm
Max crowd force of cylinder  180kN40464lbf
Max extraction force of cylinder  200kN44960lbf
Max stroke of crowd cylinder  5300mm209in
Max pulling force of main winch  240kN53952lbf
Max pulling speed of main winch  63m/min207ft/min
Wire line of main winch   Φ32mmΦ1.3in
Max pulling force of auxiliary winch  110kN24728lbf
UndercarriageCAT 336DCAT 336D
Track shoe width   800mm32in
width of crawler 3000-4300mm118-170 in
Whole machine weight  73T73T


Configuration
                               --by first class key components:


Base: Original Caterpillar 336D base
Engine: C-9 engine with ACERT™ technology
Hydraulic systems adopt Rexroth motor and wave
Electric systems are from Pal-Fin auto-control
Rotary drive: Rexroth A6VM160 Motor;
                       Bonfiglioli 311L2 Reducer;
Main winch: Rexroth GFT110W3B Reducer;
                       Rexroth A2FE160 Motor;


Commissioning

By our engineer at your jobsite for max 7 days as required who will erect and commission the equipment together with your staff and train your staff in the operation and maintenance of the equipment Vise permits, accommodation and transport are to be provided by you. Provision of operator in excess of above period shall be governed by our General conditions for Secondment of personal.

Contact Information
Beijing Sinovo International Corp
Sinovo Heavy Industry Co.,Ltd
Contact Person: Ms. Sara Li
Office: (86)-10-5190 9163-8004
Fax: (86)-10-5190 9071

Web:www.sinovogroup.com,www.chinasinovo.com

Any further information about the specification, after sale service, CAT global service, price,etc, please feel free to contact with us.
Prod Model: TR250D
Base: Original Caterpiller Base 336D
Diesel Engine: CAT C-9
Power: 261kw
Max Drilling Dpeth: 80m Depth
Max Drilling Diameter: 2500mm Diameter
Over Size: 14500X3000X3470mm
Weight: 73 ton
Service: CAT Global Service
Power Type: Diesel
Type: Rotary Drilling Rig
Condition: Used
Usage: Construction machinery
