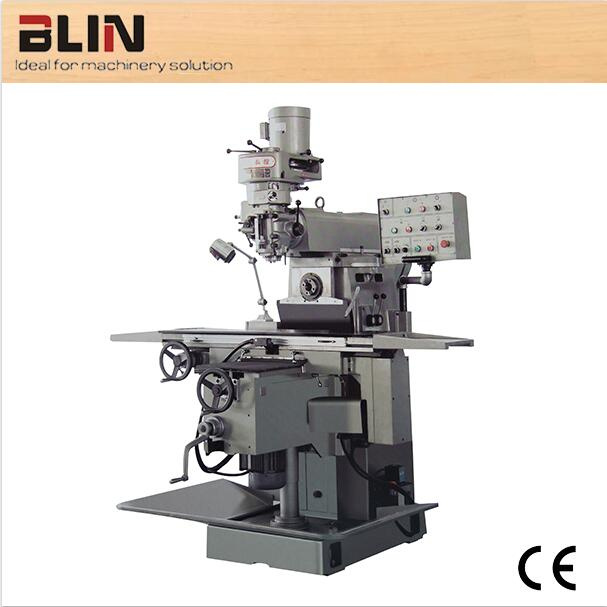

Universal Vertical and Horizontal Milling Machine with Top Quality (BL-UM-H30C/D/E)

Universal Vertical and Horizontal Milling Machine with Top Quality (BL-UM-H30C/D/E)
Price: US $ 13030/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Universal Vertical and Horizontal Milling Machine(BL-UM-H30C/D/E)(CHINA top quality)



Features:
Super wide rectangular guideway for bed and keen box,hardende by ultrsonic and precisely ground has high rigidty and stability,sallde is lined with TF wearable belt.
Has one vertical spindle and one  horizontal spindle,spindle and gears are hardende and precisely ground, suitable for heavy cutting.


Specification:

ItemUnitBL-UM-H30CBL-UM-H30DBL-UM-H30E
Table sizemm300×1300300×1300300×1500300×1370300×1500
Table longitudinal travel(manual)mm84584510008801000
Table cross travel(manual)mm385385385380380
Knee vertical travel(manual)mm435
Table longitudinal feed ratemm/min.0-3500 servo////
Table cross feed ratemm/min.0-3500 servo////
Knee rapid speedmm/min.900
Vertical spindle
Motor powerHP5standard: 3 Optional:5
SpeedrpmStandard:16class 50hz 66-4540 60hz 80-5440 Optional:stepless 60-3600
Taper
ISO40Standard:R8 Optional:ISO40
Quill travelmm127
Quill feedmm/rev0.04/0.08/0.15
Head rotating/R/L 90°R/L 90° B/F 45°
Dis.from spindle to tablemm115-545
Horizontal spindle
Motor powerHP5
speedrpm50hz:45/80/165/260/500/980  60hz:55/100/200/315/600/1180
Taper/ISO40
Dis.from spindle to tablemm( -20~410)
Dis. From spindle to rammm183
Ram travelmm480
Ram rotating/360°
N.W.kg18001800185015801630
Packing sizem1.8×1.5×2.21.8×1.5×2.21.8×1.8×2.21.8×1.6×2.21.8×1.8×2.2


Standard Accessories:

Darw bar
Electricity box
Regular wrenches
Working lamp

Optional Accessories:
DRO
Power feed
Clamping kits
Machine vice
Oil collecting plate
Plastic splash guard
Coolant system
Milling chuck
Spring collet
Variable milling head
CSA Electric
Air draw bar
Hung up control panel
Frequency conversion milling head
Prod Model: BL-UM-H30C/D/E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size: 300*1300/300*1500/300*1370/300*1500mm
Table Longitudinal Travel(Manual): 845/1000/880mm
Table Cross Travel(Manual): 385/380mm
Knee Vertical Travel(Manual): 435mm
Table Longitudinal Feed Rate: 0-3500 Servo mm/Min
Table Cross Feed Rate: 0-3500 Servo mm/Min
Knee Rapid Speed: 900mm/Min
Motor Power: Standard: 3 Optional:5
Speed: Standard:16class 50Hz 66-4540 60Hz 80-5440 Optiona
Taper: ISO40/Standard:R8 Optional:ISO40
Type: Tool Milling Machine
Object: Hardware
Structure: Rocker
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Precision: High Precision
BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.

Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.

By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.

We look forward to hearing from you at any time!
