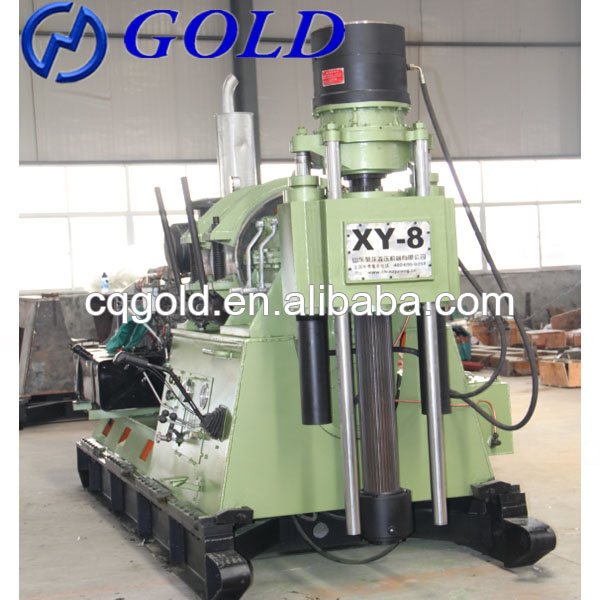

1. Machine adopts pneumatic shift Fastgear 8JS118 auto transmission and clutch, compact structure, smooth operation, stable performance, good wildcard.
2. Using auto-control flexible-shaft shift agency, we achieve the long-distance transmission shift. The pneumatic shift is light and agile, and has the advantage of hommization.
3. Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max. up to 8000N.m).
4.Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication. When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.
specifications
Drill deep |
1000--3000m |
spindle |
|
Drill hole angle |
90°-80° |
Bore diameteer |
φ118mm |
Max torque |
9800Nm |
Feeding stroke |
1000mm |
Max lifting force |
300kN |
Max pressure |
142kN |
Drill pipe diameter |
φ50;60;71;89;114mm |
spindle peed |
|
Clockwise |
79;137;213;260;366;384;604;1000r/min |
Converse |
51;144r/min |
Winch |
|
Steel wire diameter |
φ21.5mm |
Steel wire length |
160m |
Max lifting capacity of single rope |
130Kn |
Lifting speed of single rope |
0.57,0. 98,1.557,1.635,2.673,2.8,4.38,7.58m/s |
Power |
|
Electromotor |
Y2280M-4 90Kw/1480r/min |
diesel |
6BTA5.9-C180 132Kw/2200r/min |
Others |
|
clutch |
|
Oli pump |
G5-25-16-IE |
Water brake |
SC450 |
Body |
|
back stroke |
690mm |
Dimension |
4049 X 2593 X 1754mm |
weight |
7960kg(without power) |
Packaging & Shipping
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Our Services
Engineers available for overseas service of the machinery
