| Price: | US $ 568-600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Product Description:
1. Slim, light-weight which reduce the installation and tranport cost to the minimum
2. Energy saving and power saving indoor permanent installation products with aluminum design
3.Cluster LED layout and high contrast louver design provide smooth images.

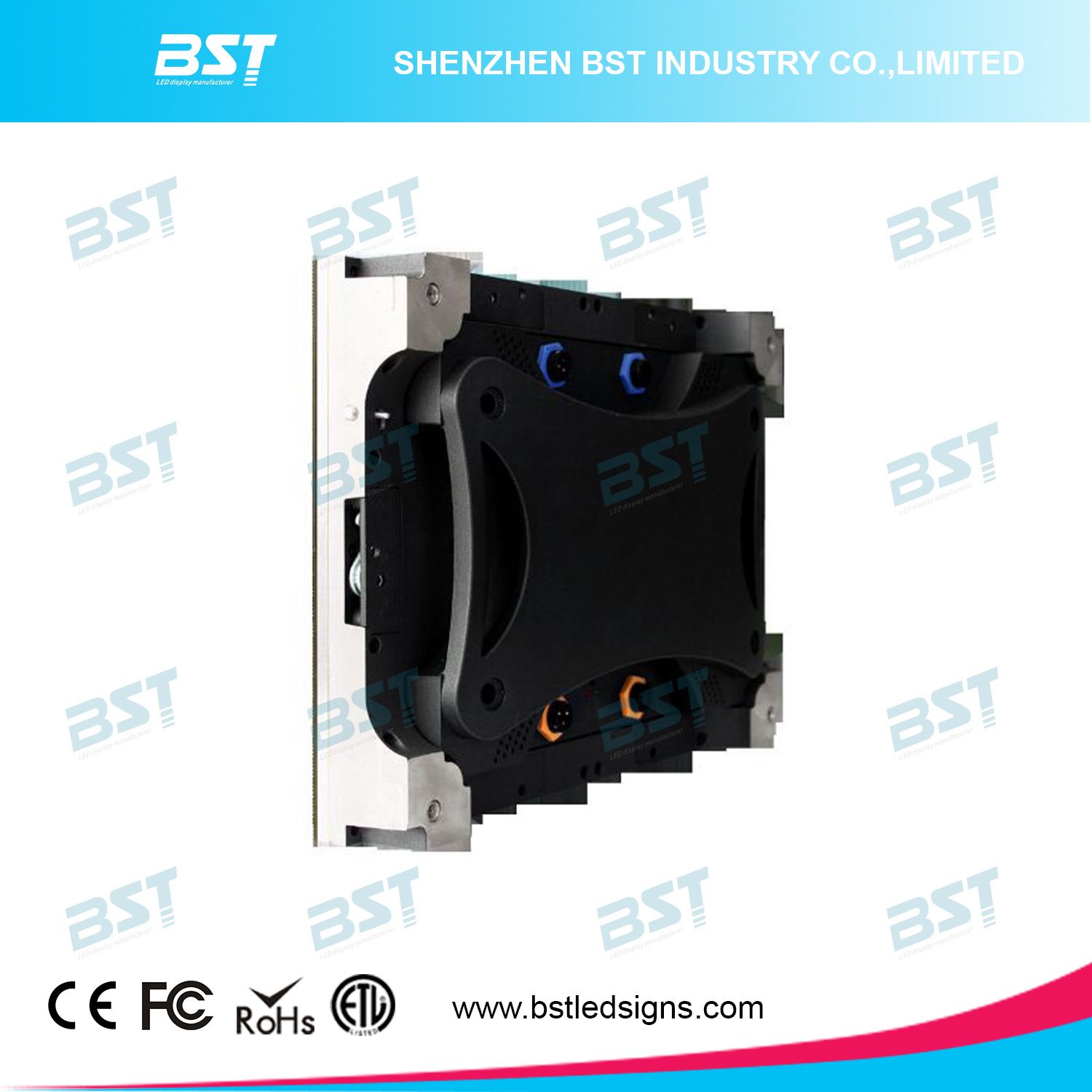

4. Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
5. High power efficiency. Unlike most of the product in the industry, we designed a double layer power supply system which is from AC-DC and DC-DC. This system enhances the power transforming efficiency to a high level of 83%.
6.Fan-less design makes a quite display. Thanks to the integrated mold design, the thermal conductivity is very good and we could get rid of fans cooling. This quite display is very important for some of your event like concert touring.

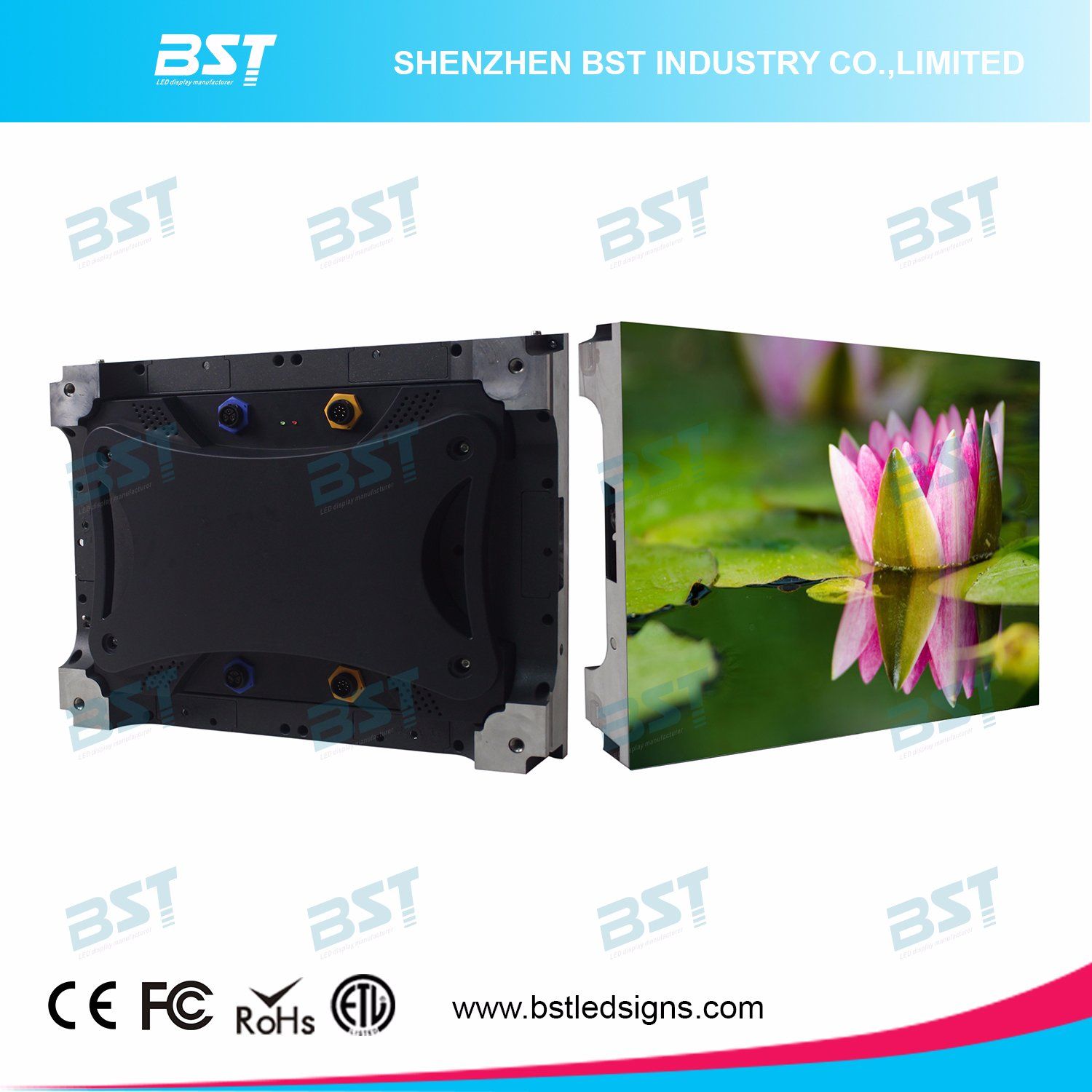

7.Seamless surface with module combination instead of strip
8.Module design makes it convenient to assemble and also ensures that the cabinets are nice-looking

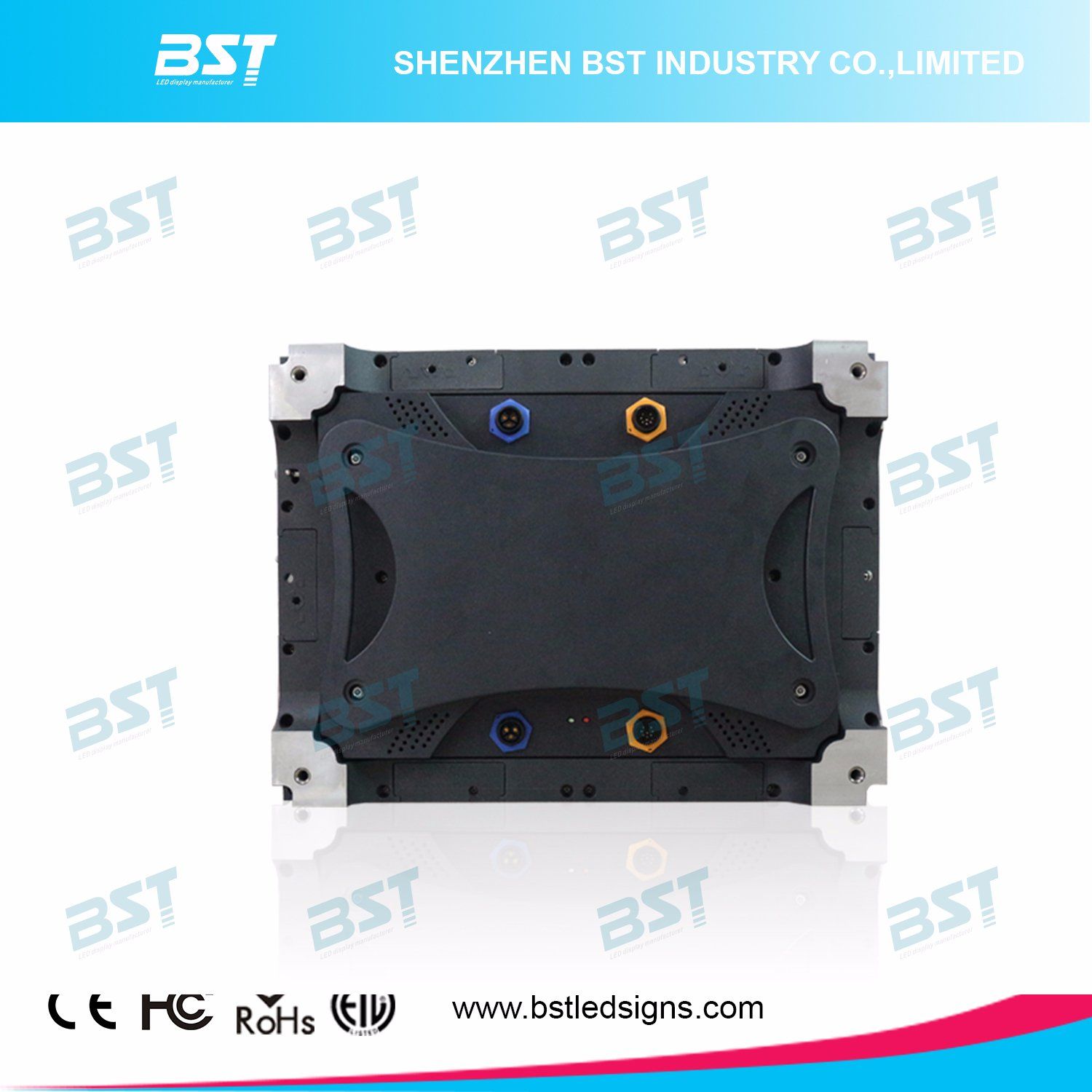

9.Using friendly for power & signal connector plug in and out, easy maintenance
10.Integrated PCB board instead of Pin cables for signal, must stable performance.
11.Jointed correctly, being installed & dismounted by one person without tool.
12.High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
13.Humanized operating interface with breakdown indicator lights, easy to maintain.
Specification:
| Model | IU-1.2 | IU-1.5 | IU-1.6 | IU-1.9 |
| Pixel Pitch | 1.25mm | 1.56mm | 1.66mm | 1.9mm |
| Unit Size | 400mmX300mm | 400mmX300mm | 400mmX300mm | 400mmx300mm |
| LED Type | SMD0909 | SMD1010 | SMD1010 | SMD1010 |
| Pixel / Unit | 320*240 | 256*192 | 240*180 | 208*156 |
| Unit Weight | 4.6KG | 4.6KG | 4.6KG | 4.6kg |
| Viewing Angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Application | Storage-40~60°C, Working-20~50°C | Storage-40~60°C, Working-20~50°C | Storage-40~60°C, Working-20~50°C | Storage-40~60°C, Working-20~50°C |
| Protection Level | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Power Consumption(AVG.) | 700w/m2 | 700w/m2 | 700w/m2 | 700w/m2 |
| Driving | 1/30 scan | 1/32 scan | 1/30 scan | 1/30 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz | ≥ 1500Hz | ≥ 1500Hz | ≥ 1500Hz |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Max Brightness | ≤800nits | ≤800nits | ≤800nits | ≤800nits |
| Power Supply | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz |
| MTBF | ≥1000 Hours | ≥1000 Hours | ≥1000 Hours | ≥1000 Hours |
| Life Span | ≥100000 Hours | ≥100000 Hours | ≥100000 Hours | ≥100000 Hours |
| Pixel Failure | <0.0003 | <0.0003 | <0.0003 | <0.0003 |

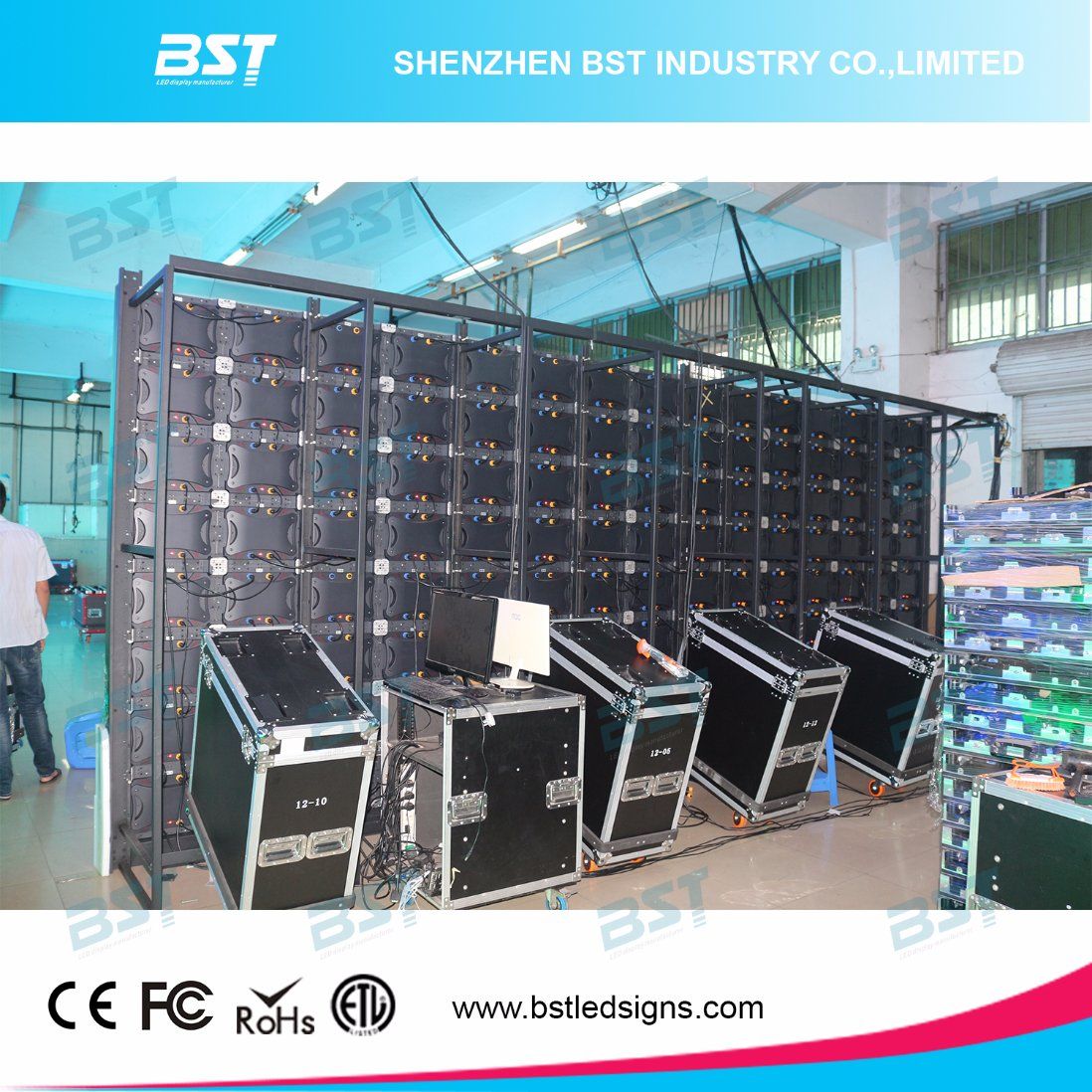

Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Our Services
1. Warranty
(1) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, RoHS and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
We provide you the forwarding information, and some other information such as flight case, structure information for your reference for free.
| Prod Model: | P1.2mm, P1.5mm, P1.6mm, P1.9mm |
|---|---|
| Size: | 400mmx300mm |
| Color: | Full Color |
| Pacakge: | Wooden Case |
| Maintainence: | Rear Service |
| Material: | Die-Casting Aluminum |
| Brightness: | >800nits |
| Refresh Rate: | >1500Hz |
| LEDs: | SMD1010 |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Pixel Configuration: | 1R,1G,1B |
| Display Type: | LED Video Display |
| Application: | Shopping Guide |
| IP Rating: | IP43 |
| Certification: | ETL |
| Pixel Pitch: | 1.9 |
| Pixel Density: | 270400 |
| Scanning Mode: | 1/26 |
| System Operating Platform: | Win XP, Win 7, Win 8, Win 10 |
