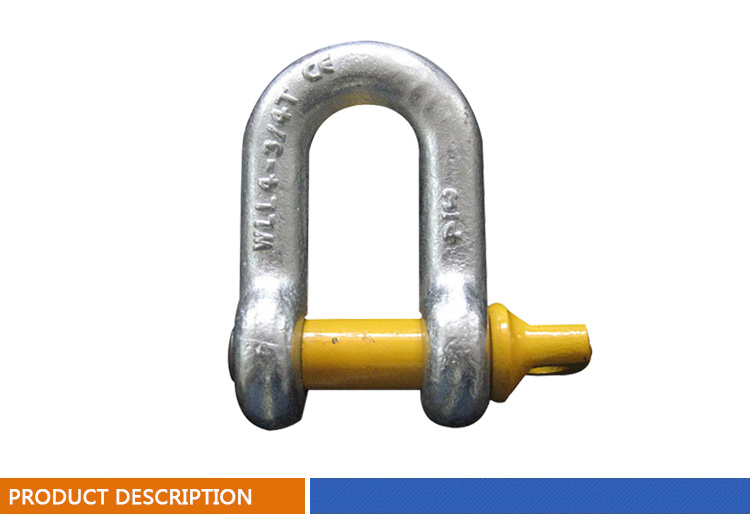

U. S. Type Chain Shackle With Safety Pin
Size: 1/4''-2''
Material: Carbon steel
Keyword: U. S. Type Chain Shackle With Safety Pin
Iron: Shackle
Function: Fastener
Brand Name: LS
Process: Laying-off------forged---drill hole---heat treatment---phosphorization---powder plastified
Warning: Never exceed working load limit.

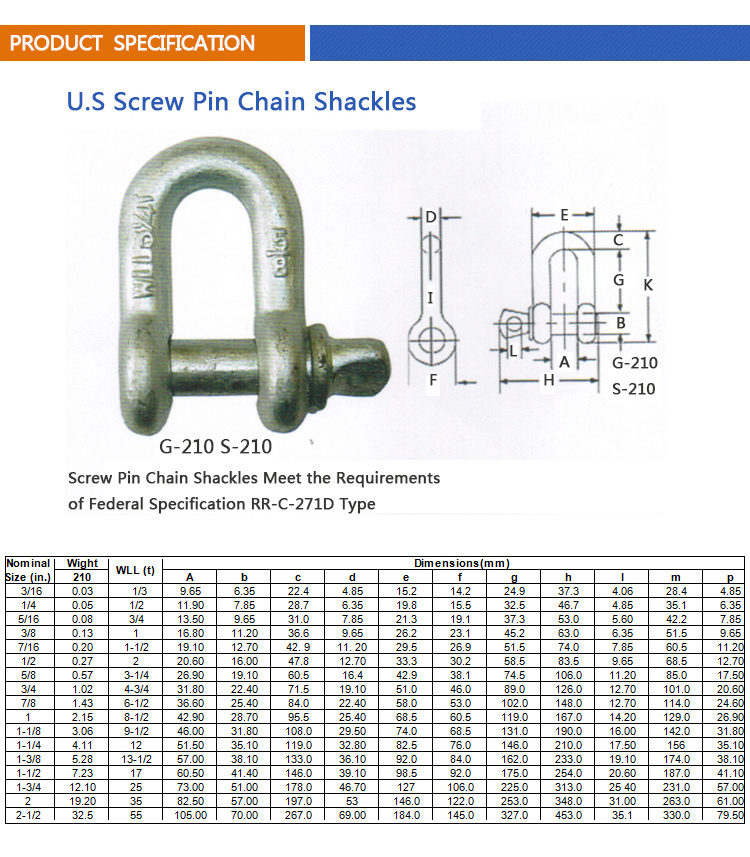

| Nominal Size (in.) | Wight | WLL (t) | Dimensions(mm) |
| 210 | A | b | c | d | e | f | g | h | l | m | p |
| 3/16 | 0.03 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 |
| 1/4 | 0.05 | 1/2 | 11.90 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 |
| 5/16 | 0.08 | 3/4 | 13.50 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 |
| 3/8 | 0.13 | 1 | 16.80 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 |
| 7/16 | 0.20 | 1-1/2 | 19.10 | 12.70 | 42. 9 | 11. 20 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.20 |
| 1/2 | 0.27 | 2 | 20.60 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.70 |
| 5/8 | 0.57 | 3-1/4 | 26.90 | 19.10 | 60.5 | 16.4 | 42.9 | 38.1 | 74.5 | 106.0 | 11.20 | 85.0 | 17.50 |
| 3/4 | 1.02 | 4-3/4 | 31.80 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 89.0 | 126.0 | 12.70 | 101.0 | 20.60 |
| 7/8 | 1.43 | 6-1/2 | 36.60 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 102.0 | 148.0 | 12.70 | 114.0 | 24.60 |
| 1 | 2.15 | 8-1/2 | 42.90 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 119.0 | 167.0 | 14.20 | 129.0 | 26.90 |
| 1-1/8 | 3.06 | 9-1/2 | 46.00 | 31.80 | 108.0 | 29.50 | 74.0 | 68.5 | 131.0 | 190.0 | 16.00 | 142.0 | 31.80 |
| 1-1/4 | 4.11 | 12 | 51.50 | 35.10 | 119.0 | 32.80 | 82.5 | 76.0 | 146.0 | 210.0 | 17.50 | 156 | 35.10 |
| 1-3/8 | 5.28 | 13-1/2 | 57.00 | 38.10 | 133.0 | 36.10 | 92.0 | 84.0 | 162.0 | 233.0 | 19.10 | 174.0 | 38.10 |
| 1-1/2 | 7.23 | 17 | 60.50 | 41.40 | 146.0 | 39.10 | 98.5 | 92.0 | 175.0 | 254.0 | 20.60 | 187.0 | 41.10 |
| 1-3/4 | 12.10 | 25 | 73.00 | 51.00 | 178.0 | 46.70 | 127 | 106.0 | 225.0 | 313.0 | 25 40 | 231.0 | 57.00 |
| 2 | 19.20 | 35 | 82.50 | 57.00 | 197.0 | 53 | 146.0 | 122.0 | 253.0 | 348.0 | 31.00 | 263.0 | 61.00 |
| 2-1/2 | 32.5 | 55 | 105.00 | 70.00 | 267.0 | 69.00 | 184.0 | 145.0 | 327.0 | 453.0 | 35.1 | 330.0 | 79.50 |
1. Purchase order tracking
Follow up orders from material preparation to delivery. Professional in shipping, fast delivery,
Packed well in container, customs clearance smoothly, tracking the goods from the port of l
Oading to the port of destination.
2. Professional manufacturer
Specifications and Marks can be produced according to customers 'requirements.
Being in this field for 12 years, has very good relationship with factories.
3. Personalized Service
Quality assurance, reasonable prices, service country of origin, experience technical staff,
Excellent product performance.
4. Stock
There are emergency stocks for regular sizes perennially. This to save time for you.
Lisheng Trading, with more than 10 years of experience in manufacturing and exporting, has created a good reputation in lines of Link Chain, Rigging Hardware, Rope, Plastics and the related. Aiming to become industry elite and achieve sustained growth in global market, our main products cover standards of DIN, EN, JIS, UN, etc., of which the quality are guaranteed by Quality System of ISO9001.
It is Lisheng who pay much attention on business ethics.
The team believes in maintaining win-win situation relationships with all clients. Taking quality products and clients' satisfaction as the core value, the company respects every customer and spares no effort to cater to diverse needs of business partners. The dedication and honesty we show toward our works transforms us into a reliable name among clients. We aspire to bring our products to broader market and share benefits with more customers upon better service.
A new company with experienced and passionate team.
Doing export business for 10 years from 2003 till now.
Core value: Honestly and professionally.
We will partner our clients to meet all their needs.
Primary target: Ensure customer satsfaction.
Lisheng Trading (L&S) specialized in manufacturing and exporting of all kinds of Riggings, Hardware Tools, Lifting Items, Link Chains, Steel Structure, Chemical Admixtures, Plastic&Rubber products, Plastic Ropes and Wire Ropes with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industries and other lines.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and regular customers from all walks of life to contact us for future business relationships and mutual success!
