| Price: | US $ 1600-2500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

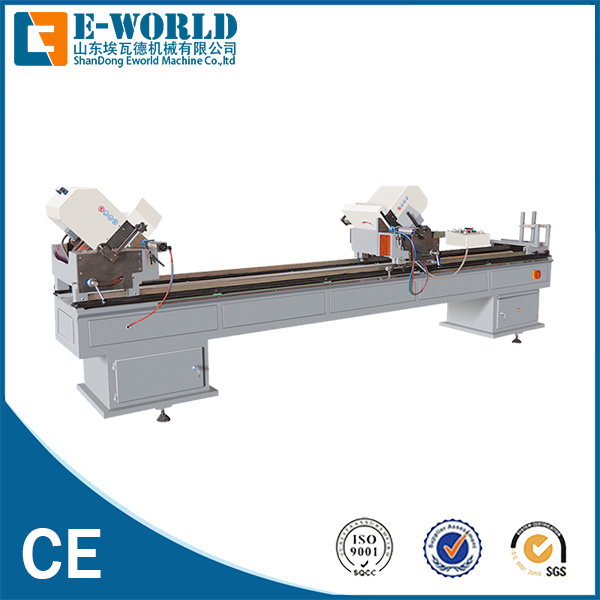

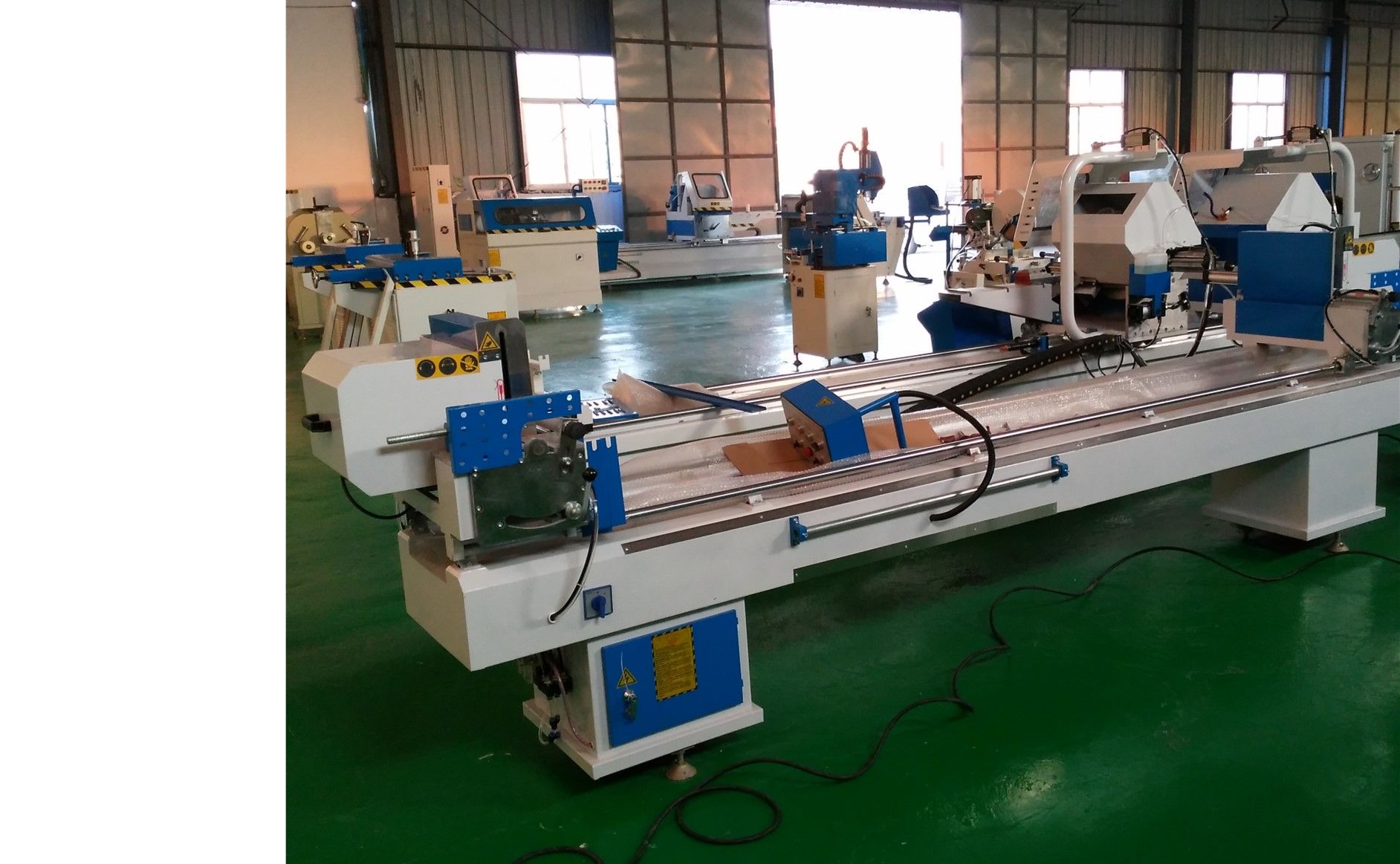

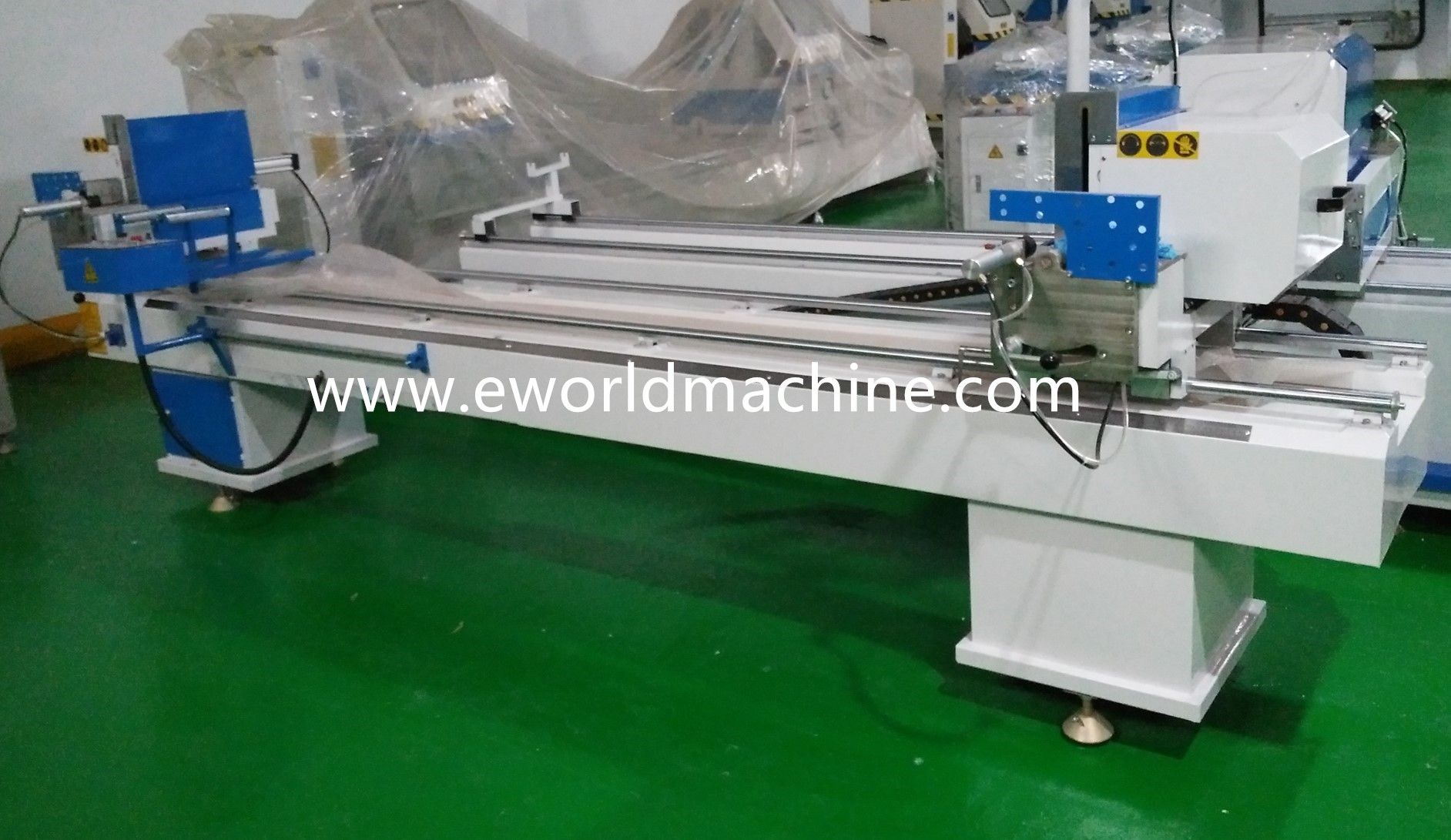

| 1).The machine is used for processing the aluminum and PVC/UPVC/plastic/Vinyl profile at angles of -45° ~90° ~45° The two heads can work individually, simultaneously and combinatively it has the features of simple operation ,stability and high efficiency. 2). It can process the aluminum profile, but only can cut very thin aluminum profile,so here this model usually mainly to cut the PVC/UPVC/Plastic /VInyl profile,if you want to cut both Aluminum and PVC profile, you can choose our other model SSJ06-3700 3).It has the features of easy operation and high accuracy. 4).Its cutting way is from the backward to the forward cutting, and safe cutting. 5).This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production output will be more. 6).We can make the machine according to your true local power supply. | |
| Technical parameters: | |
| Model number | 420-3500 |
| Working Air pressure | 0.4~0.6 Mpa |
| Air consumption | 200L/min |
| Power supply | 380V 50Hz |
| General input power | 2.2 kw |
| Blade rotational speed | 2840 r/min |
| Double cutting length | 3500mm |
| Cutting thickness | 125mm |
| Cutting width | 110mm |
| Contour dimension | 4000×900×1500mm |
| Machine weight(about) | 600 kg |
| Prod Model: | 420-3500 |
|---|---|
| Product Type: | PVC Profile |
| Certification: | CE |
| Customized: | Non-Customized |
