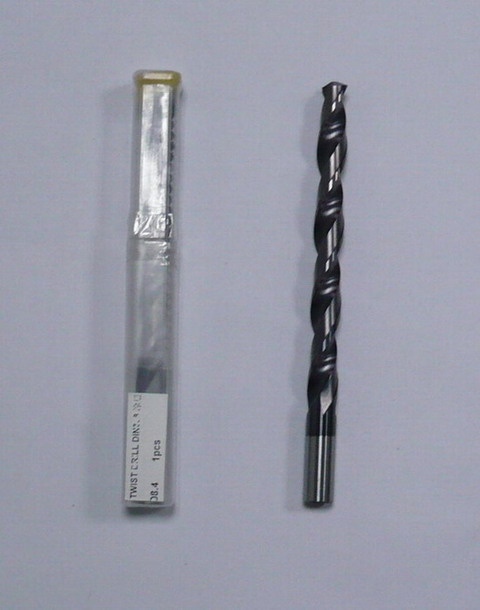

Tungsten Carbide DIN338 Coating Twist Drill
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
We are producing solid carbid cutting tools, drills, drill bit, Twist drill, twist drill set, HSS drills, cobalt drills, DIN338 straight shank twist drill, DIN1897 straight shank stub drill, DIN340 straight shank long twist drill, DIN345 taper shank drill, HSS step twist drill, taps and dies, taps, metric taps, screw tap, thread tap, machine taps, hand taps, straight fluted taps, spiral fluted taps, spiral point taps, nut taps, HSS screw tap, dies, machine dies, thread dies, round thread dies, adjustable round dies, hexagon dies, tap wrench, die handle, die holder, Center drill, double end drill, combined drill, countersinks, carbide center drill, Rotary files, end mills, Milling cutter, HSS step drill, step drill bit, Reamer, hole saw, bi-metal hole saw, hole cutter, tool bits, HSS tool bit, carbide tipped tool bit.
| DIa | F. L | O. L | DIa | F. L | O. L | DIa | F. L | O. L |
| 0.2 | 2.5 | 19 | 2.85 | 33 | 61 | 9.5 | 81 | 125 |
| 0.22 | 2.5 | 19 | 2.9 | 33 | 61 | 9.6 | 68 | 133 |
| 0.25 | 3 | 19 | 2.95 | 33 | 61 | 9.7 | 87 | 133 |
| 0.28 | 3 | 19 | 3 | 33 | 61 | 9.8 | 87 | 133 |
| 0.3 | 3 | 19 | 3.1 | 36 | 65 | 9.9 | 87 | 133 |
| 0.32 | 4 | 19 | 3.2 | 36 | 65 | 10 | 87 | 133 |
| 0.35 | 4 | 19 | 3.3 | 36 | 65 | 10.2 | 87 | 133 |
| 0.38 | 4 | 19 | 3.4 | 39 | 70 | 10.3 | 87 | 133 |
| 0.4 | 5 | 20 | 3.5 | 39 | 70 | 10.4 | 87 | 133 |
| 0.42 | 5 | 20 | 3.6 | 39 | 70 | 10.5 | 87 | 133 |
| 0.45 | 5 | 20 | 3.7 | 39 | 70 | 10.6 | 87 | 133 |
| 0.48 | 5 | 20 | 3.8 | 43 | 75 | 10.7 | 94 | 142 |
| 0.5 | 6 | 22 | 3.9 | 43 | 75 | 10.8 | 94 | 142 |
| 0.52 | 6 | 22 | 4 | 43 | 75 | 10.9 | 94 | 142 |
| 0.55 | 7 | 24 | 4.1 | 43 | 75 | 11 | 94 | 142 |
| 0.58 | 7 | 24 | 4.2 | 43 | 75 | 11.1 | 94 | 142 |
| 0.6 | 7 | 24 | 4.3 | 47 | 80 | 11.2 | 94 | 142 |
| 0.62 | 8 | 26 | 4.4 | 47 | 80 | 11.3 | 94 | 142 |
| 0.65 | 8 | 26 | 4.5 | 47 | 80 | 11.4 | 94 | 142 |
| 0.68 | 9 | 28 | 4.6 | 47 | 80 | 11.5 | 94 | 142 |
| 0.7 | 9 | 28 | 4.7 | 47 | 80 | 11.6 | 94 | 142 |
| 0.72 | 9 | 28 | 4.8 | 52 | 86 | 11.7 | 94 | 142 |
| 0.75 | 9 | 28 | 4.9 | 52 | 86 | 11.8 | 94 | 142 |
| 0.78 | 10 | 30 | 5 | 52 | 86 | 11.9 | 101 | 151 |
| 0.8 | 10 | 30 | 5.1 | 52 | 86 | 12 | 101 | 151 |
| 0.82 | 10 | 30 | 5.2 | 52 | 86 | 12.1 | 101 | 151 |
| 0.85 | 10 | 30 | 5.3 | 52 | 86 | 12.2 | 101 | 151 |
| 0.88 | 11 | 32 | 5.4 | 57 | 93 | 12.3 | 101 | 151 |
| 0.9 | 11 | 32 | 5.5 | 57 | 93 | 12.4 | 101 | 151 |
| 0.92 | 11 | 32 | 5.6 | 57 | 93 | 12.5 | 101 | 151 |
| 0.95 | 11 | 32 | 5.7 | 57 | 93 | 12.6 | 101 | 151 |
| 0.98 | 12 | 34 | 5.8 | 57 | 93 | 12.7 | 101 | 151 |
| 1 | 12 | 34 | 5.9 | 57 | 93 | 12.85 | 101 | 151 |
| 1.05 | 12 | 34 | 6 | 57 | 93 | 12.9 | 101 | 151 |
| 1.1 | 14 | 36 | 6.1 | 63 | 101 | 13 | 101 | 151 |
| 1.15 | 14 | 36 | 6.2 | 63 | 101 | 13.1 | 101 | 151 |
| 1.2 | 16 | 38 | 6.3 | 63 | 101 | 13.2 | 101 | 151 |
| 1.25 | 16 | 38 | 6.4 | 63 | 101 | 13.3 | 108 | 160 |
| 1.3 | 16 | 38 | 6.5 | 63 | 101 | 13.4 | 108 | 160 |
| 1.35 | 18 | 40 | 6.6 | 63 | 101 | 13.5 | 108 | 160 |
| 1.4 | 18 | 40 | 6.7 | 63 | 101 | 13.6 | 108 | 160 |
| 1.45 | 18 | 40 | 6.8 | 69 | 109 | 13.7 | 108 | 160 |
| 1.5 | 18 | 40 | 6.9 | 69 | 109 | 13.8 | 108 | 160 |
| 1.55 | 20 | 43 | 7 | 69 | 109 | 13.9 | 108 | 160 |
| 1.6 | 20 | 43 | 7.1 | 69 | 109 | 14 | 108 | 160 |
| 1.65 | 20 | 43 | 7.2 | 69 | 109 | 14.25 | 114 | 169 |
| 1.7 | 20 | 43 | 7.3 | 69 | 109 | 14.5 | 114 | 169 |
| 1.75 | 22 | 46 | 7.4 | 69 | 109 | 14.75 | 114 | 169 |
| 1.8 | 22 | 46 | 7.5 | 69 | 109 | 15 | 114 | 169 |
| 1.85 | 22 | 46 | 7.6 | 75 | 117 | 15.25 | 120 | 178 |
| 1.9 | 22 | 46 | 7.7 | 75 | 117 | 15.5 | 120 | 178 |
| 1.95 | 24 | 49 | 7.8 | 75 | 117 | 15.75 | 120 | 178 |
| 2 | 24 | 49 | 7.9 | 75 | 117 | 16 | 120 | 178 |
| 2.05 | 24 | 49 | 8 | 75 | 117 | 16.25 | 125 | 184 |
| 2.1 | 24 | 49 | 8.1 | 75 | 117 | 16.5 | 125 | 184 |
| 2.15 | 27 | 53 | 8.2 | 75 | 117 | 16.75 | 125 | 184 |
| 2.2 | 27 | 53 | 8.3 | 75 | 117 | 17 | 125 | 184 |
| 2.25 | 27 | 53 | 8.4 | 75 | 117 | 17.25 | 130 | 191 |
| 2.3 | 27 | 53 | 8.5 | 75 | 117 | 17.5 | 130 | 191 |
| 2.35 | 27 | 53 | 8.6 | 81 | 125 | 17.75 | 130 | 191 |
| 2.4 | 30 | 57 | 8.7 | 81 | 125 | 18 | 130 | 191 |
| 2.45 | 30 | 57 | 8.8 | 81 | 125 | 18.5 | 135 | 198 |
| 2.5 | 30 | 57 | 8.9 | 81 | 125 | 18.75 | 135 | 198 |
| 2.55 | 30 | 57 | 9 | 81 | 125 | 19 | 135 | 198 |
| 2.6 | 30 | 57 | 9.1 | 81 | 125 | 19.25 | 140 | 205 |
| 2.65 | 30 | 57 | 9.2 | 81 | 125 | 19.5 | 140 | 205 |
| 2.7 | 33 | 61 | 9.3 | 81 | 125 | 19.75 | 140 | 205 |
| 2.75 | 33 | 61 | 9.4 | 81 | 125 | 20 | 140 | 205 |
| 2.8 | 33 | 61 |
|
|
|
|
|
|
| Dia | F. L | O. L | Dia | F. L | O. L | Dia | F. L | O. L |
| 1 | 6 | 26 | 7.5 | 34 | 74 | 14 | 54 | 107 |
| 1.2 | 8 | 30 | 7.8 | 37 | 79 | 14.25 | 56 | 111 |
| 1.5 | 9 | 32 | 8 | 37 | 79 | 14.5 | 56 | 111 |
| 1.8 | 11 | 36 | 8.2 | 37 | 79 | 14.75 | 56 | 111 |
| 2 | 12 | 38 | 8.5 | 37 | 79 | 15 | 56 | 111 |
| 2.2 | 13 | 40 | 8.8 | 40 | 84 | 15.25 | 58 | 116 |
| 2.5 | 14 | 43 | 9 | 40 | 84 | 15.5 | 58 | 116 |
| 2.8 | 16 | 46 | 9.2 | 40 | 84 | 15.75 | 58 | 116 |
| 3 | 16 | 46 | 9.5 | 40 | 84 | 16 | 58 | 116 |
| 3.2 | 18 | 49 | 9.8 | 43 | 89 | 16.25 | 60 | 119 |
| 3.5 | 20 | 52 | 10 | 43 | 89 | 16.5 | 60 | 119 |
| 3.8 | 22 | 55 | 10.2 | 43 | 89 | 16.75 | 60 | 119 |
| 4 | 22 | 55 | 10.5 | 43 | 89 | 17 | 60 | 119 |
| 4.2 | 22 | 55 | 10.8 | 47 | 95 | 17.25 | 62 | 123 |
| 4.5 | 24 | 58 | 11 | 47 | 95 | 17.5 | 62 | 123 |
| 4.8 | 26 | 62 | 11.2 | 47 | 95 | 17.75 | 62 | 123 |
| 5 | 26 | 62 | 11.5 | 47 | 95 | 18 | 62 | 123 |
| 5.2 | 26 | 62 | 11.8 | 47 | 95 | 18.25 | 64 | 127 |
| 5.5 | 28 | 66 | 12 | 51 | 102 | 18.5 | 64 | 127 |
| 5.8 | 28 | 66 | 12.2 | 51 | 102 | 18.75 | 64 | 127 |
| 6 | 28 | 66 | 12.5 | 51 | 102 | 19 | 64 | 127 |
| 6.2 | 31 | 70 | 12.8 | 51 | 102 | 19.25 | 66 | 131 |
| 6.5 | 31 | 70 | 13 | 51 | 102 | 19.5 | 66 | 131 |
| 6.8 | 34 | 74 | 13.2 | 51 | 102 | 19.75 | 66 | 131 |
| 7 | 34 | 74 | 13.5 | 54 | 107 | 20 | 66 | 131 |
| 7.2 | 34 | 74 | 13.8 | 54 | 107 |
|
|
|
| Prod Model: |
DIN338 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
1-20mm |
