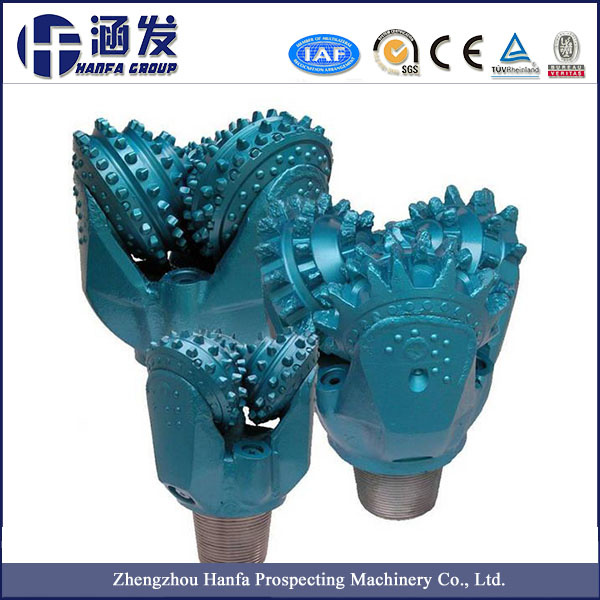

Tricone Bit for Water Well and Oil Field

Tricone Bit for Water Well and Oil Field
Price: US $ 200-800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Tricone Bit For Water Well and Oil Field

1.Tricone bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.

2. Tricone bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.

3. Tricone bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.

4. Tricone bit seal lubricants
Adopting advanced metal seal, greatly extend the drill life.

5. Tricone bit applicable
Metal seal bit stable performance, than common rubber seal bit longer life, suitable for underground power drill and high penetration rate turntable drilling.

IADC  WOBRPMApplication
(KN/mm)(r/min)
111/114/1150.3-0.75200-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
116/1170.35-0.8150-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
1210.3-0.85200-80soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
124/125180-60
1310.3-0.95180-80soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
136/1370.35-1.0120-60
211/2410.3-0.95180-80medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.
216/2170.4-1.0100-60
246/2470.4-1.080-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
3210.4-1.0150-70medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble
3240.4-1.0120-50
437/447/4350.35-0.9240-70very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/5150.35-1.0220-60soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/5350.45-1.0220-50soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/6150.45-1.1200-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/6350.5-1.1180-40hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
Note: Above limitts of WOB and RRPM should not be used simultaneously

PIN SIZE

Bit DiameterAPI PIN
(inch)(mm)
3 7/8"~5 1/4"98~1342 3/8", 2 7/8"
5 5/8"~6 3/4"143~1713 1/2"
7 1/2"~9 1/2"190.5~2414 1/2"
9 5/8"~13 3/4"245~3506 5/8"
14 5/8"~26"371~660.47 5/8"


Prod Model: Tricone Bit
Model: TCI Bit, Steel Tooth Bit
Delivery Terms: by Sea or by Air
Button Size: Button Bit,Saw Teeth
Type: Cone Drill Bit
Use: Drilling Machine
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.

Presently, it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd, Zhengzhou Hanfa Imp & Exp Trading Co., Ltd, HK Hanfa Imp & Exp Trading Co., Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Hanfa Group perennially committed to the development, production and sales of drilling machine, mainly including water well drilling rig, core drill, DTH drill, rotary/piling rig, trenchless centering drill, hydraulic tunnel drilling rig, etc. Hanfa Group send all kinds of drill for the global market, the products are sold to all over the world, exports more than 60 countries and regions, is the leading brand of drilling rig in China. At present, Hanfa Group built Beijing, Tianjin, Shandong, Hubei R&D and manufacturing base.

Hanfa Group always adhere to the "two audit", one is must through the international authoritative certification bodies's audit; The second is needs to be approved by customers and the public. It is also true, Hanfa Group, all kinds of drilling rig, has passed the ISO9001: 2008 and ISO9001: 2000 quality management system, the national military standard GJB9001-2001 and ISO14001-2004 environmental management system and GB/T28001-2001 occupational health and safety management system certification, CE and other international well-known certification bodies audit and certification, obtained the international recognition of authority;

At the same time, the development of the new and old customers, numerous customers from all corners of the world's praise, confirming the quality of Hanfa products is already deeply rooted in the hearts of the people, pass the "audit" of masses of the people. High quality is the the faith and the most basic bottom line of Hanfa Group since it founded twenty years ago. For more than 20 years, the countless praised, care, support have been produced a large web of trust, like the Hanfa's reputation today, global coverage, influence the world.

Hanfa Group do not forget good service while in adhere to the quality. In Hanfa Group, the quality is the root, service is the source. Hanfa Group, after long-term development, formed a very perfect service system, the service system covering the pre-sale, sale, after-sale three important links, fully satisfy the customer service requirements at different times, leave no dead angle of service to the customer. Hanfa Group has a strong service team, including 30 senior engineers, more than 50 technical personnel, hundreds of after-sales service personnel. After many years of accumulation, the service team had rich experience, is the most perfect service industry, service quality of the best team. Hanfa Group, has send technicians abroad to after-sales service more than 20000 times, operation training for more than 10000 times, machine repair about 5000 times...Large and small data, not only explain Hanfa has send thousands of customer operation method, construction technology, drilling technique, machine maintenance knowledge, the fault of the machine function again...But also record with the brilliance of Hanfa's service team, the footprints on the road, confirm the powerful strength and service quality of Hanfa Group.
