Transparent P20 DIP346 Outdoor LED Display for Advertisement
| Price: |
US $ 800-900/Square Meter |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T,Western Union |

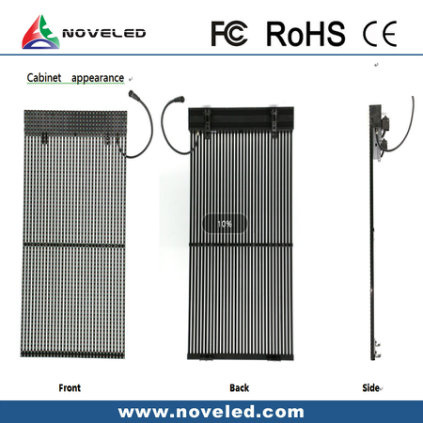

P20 outdoor curtain led display cabinet view
Screen specification parameter| Item | Unit | Parameter |
| Type of product | | P20 |
| Pixel pitch | mm | Horizontal 20 Vertical 20 |
| Pixel composition | DIP | 346 (1R1G1B) |
| Resolution | dot/sqm | 2500 |
| Unit cabinet size | mm | 500(W) X 1000(H) |
| Unit cabinet pixels | dot | 1250 |
| Unit cabinet resolution | dot | 25(W) X 50(H) |
| Unit cabinet weight | kg/pc | 9 |
| Cabinet weightsqm | kg/sqm | 18 |
| Unit cabinet thickness | cm | 6.7 |
| Installation thickness | cm | 12.7 (including the frame thickness 6cm) |
| Max consumption | W/sqm | 400 |
| Average consumption | W/sqm | 120 |
| Screen brightness | CD/sqm | ≥7000cd |
| Gray lever | bit | 14 |
| Color temperature | K | 6500-9300k |
| Brightness adjustment | degree | 0-255 |
| View angle | ° | Horizontal ≥110° vertical ≥50° |
| The best view distance | m | 20-400 |
| Frame rates | Hz | 60 |
| Control mode | | Synchronous mapping / Asynchronous control |
| Drive mode | | Constant current,static |
| Power source voltage | AC V | 85-250 |
| Life span | | 100000 hours |
| Cooling mode | | structure-enhanced,natural convection |
| Strip width | mm | 9.8 |
| Strip material | | aluminum 6061 |
| Transparent rate | % | 50% |
| IP rate | IP | Double-side IP67 |
| Operating / Storage Temperature | °C | -35 ~ + 80°C / -55 ~ + 120°C |
| Installation Frame material | | 2.0mm cold-rolled galvanized steel sheet |
| Installation type | | quick installation Tool-free |
| Fire resistance | | Full V0 flame retardant |
| Maintain speed | | 10S / unit |
| Maintain mode | | Front side and Back side |

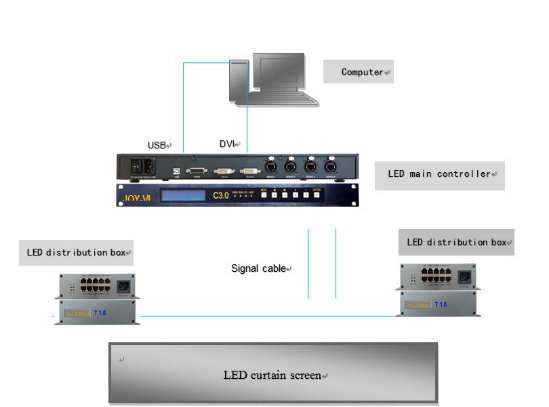

System topological diagram

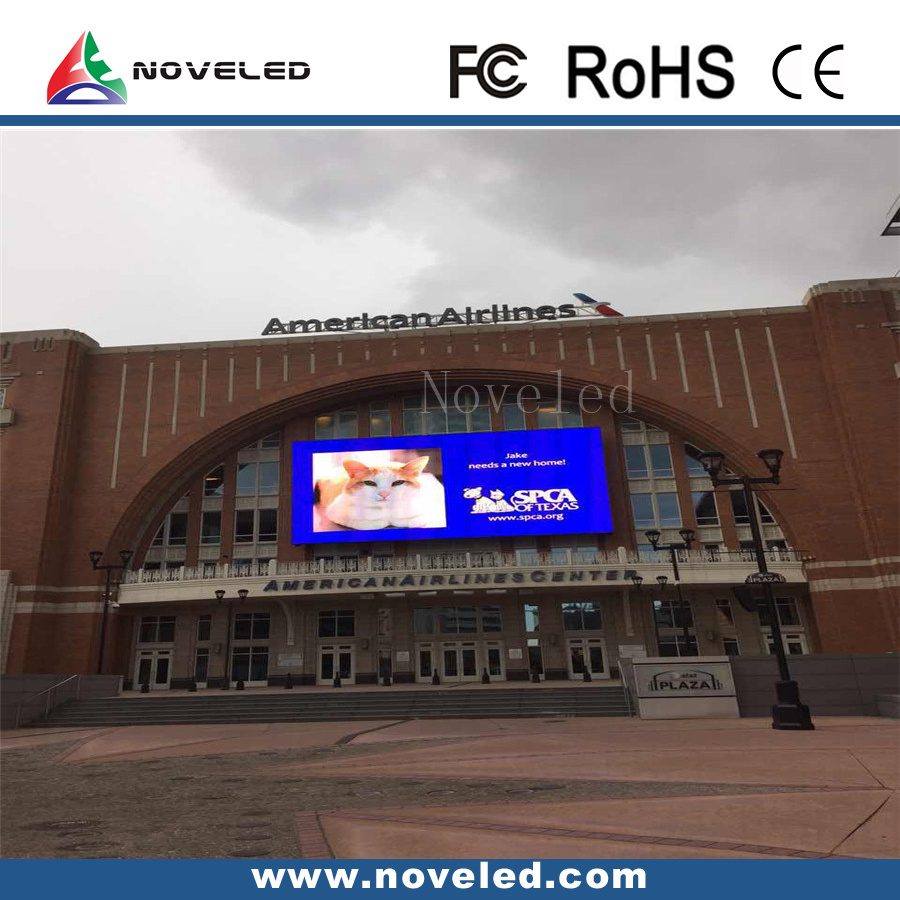

ApplicationWidely used in glasswall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.
| Prod Model: |
P20 |
| Cabinet Weight: |
9kg/PC |
| Cabinet Material: |
Alumium |
| Brightness: |
More Than 7000CD |
| Best View Distance: |
20-400m |
| Transparent Rate: |
50% |
| Usage: |
Transparent LED Display |
| Cabinet Size: |
500mmx 1000mm |
| Intallation: |
Quickly Installtion Tool Free |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
20mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Density: |
2500 |
