Tj 1210 Abrasive Cut off Wheels

Tj 1210 Abrasive Cut off Wheels
Price: US $ 0.1-199/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Suzhou Trojan Industry Material Co., Ltd.
Showroom Product Company Profile




Code principle

MaterialAluminium OxideSilicon carbideDiamond electroplatingResin-based diamondMetal -based diamond
SignsASDPDRDM

Example: A602515

A: Alumina Oxide
60: For Hardness HRC 60 metal
25: The outer diameter
15: The thickness

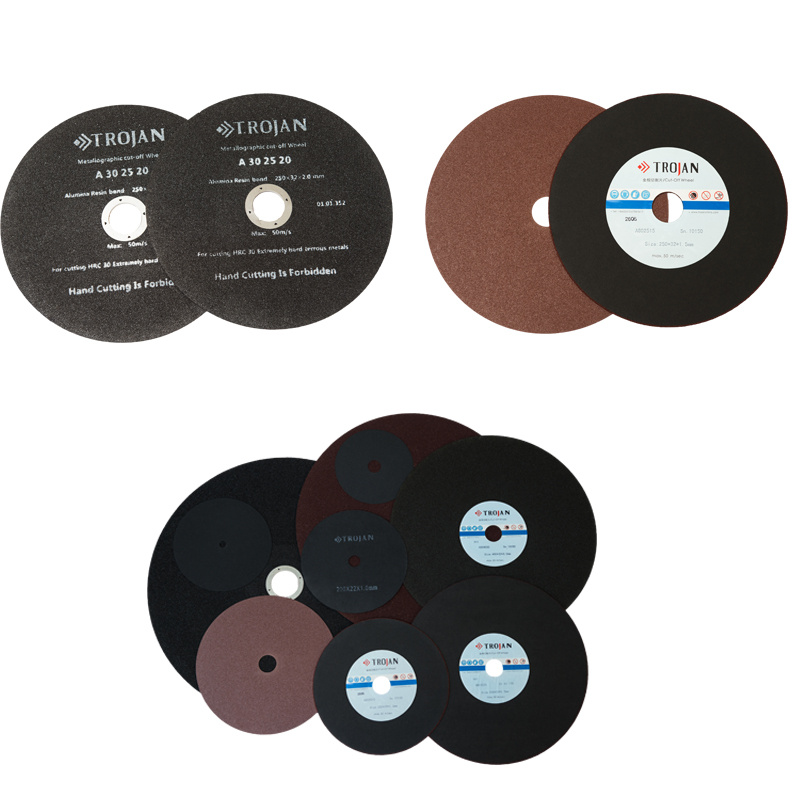

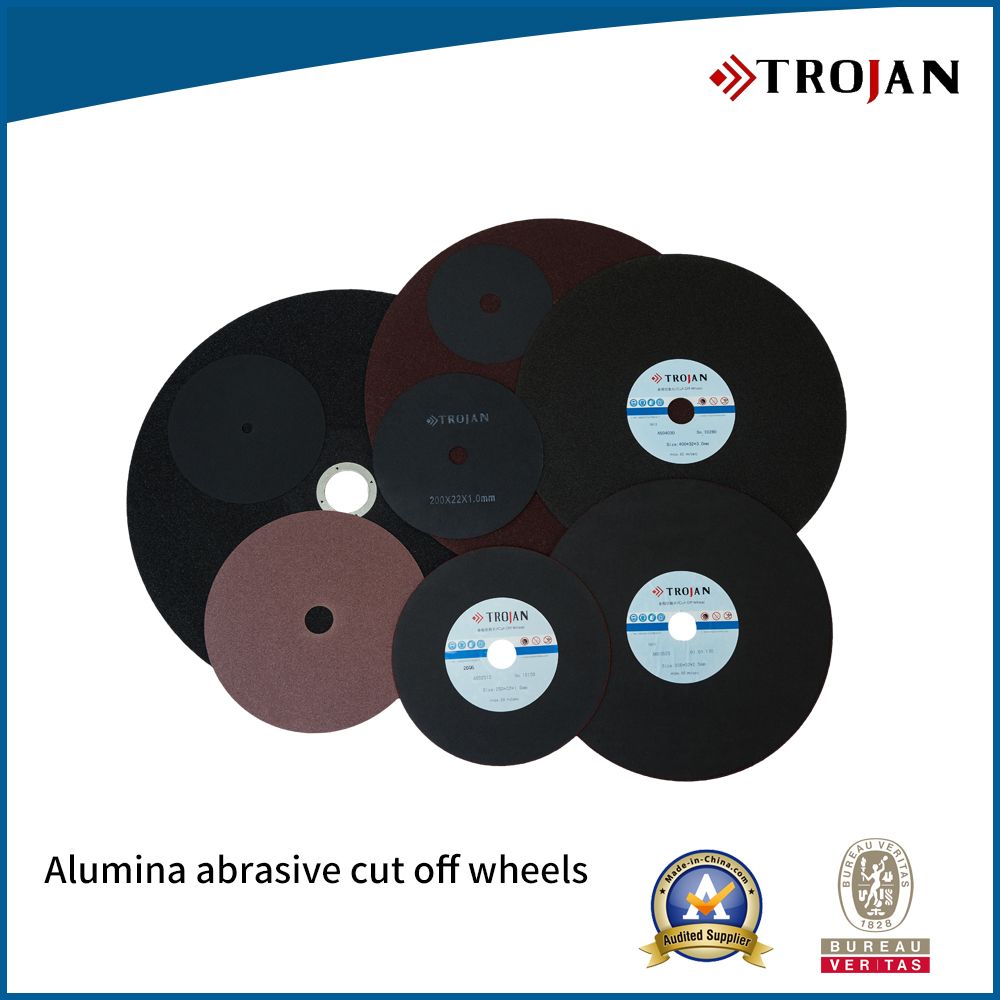

HRC 60 extremely hard alumina abrasive cut off wheels

For cutting hard ferrous metals HRC50-60, aluminium oxide material, resin bond.

No.CodeSpec (mm)Package
10112A601505H150*12.7*0.550pcs/box
10115A601810180*12.7*1.010pcs/box
10120A602010200*32*1.010pcs/box
10130A602312230*32*1.210pcs/box
10150A602515250*32*1.510pcs/box
10160A603020300*32*2.010pcs/box
10170A603525350*32*2.510pcs/box
10180A604030400*32*3.010pcs/box
10190A605040508*50.8*4.010pcs/box

HRC 50 medium hard alumina oxide abrasivecut off wheels

For cutting medium hard ferrous metals HRC 40-50, aluminium oxide material, resin bond.

No.CodeSpec (mm)Package
10212A501505H150*12.7*0.550pcs/box
10215A501810180*12.7*1.010pcs/box
10220A502010200*32*1.010pcs/box
10230A502312230*32*1.210pcs/box
10250A502515250*32*1.510pcs/box
10260A503020300*32*2.010pcs/box
10270A503525350*32*2.510pcs/box
10280A504030400*32*3.010pcs/box
10290A505040500*50*4.010pcs/box

HRC30 soft alumina abrasivecut off wheels

For cutting soft ferrous metals HRC > 20-40, aluminium oxide material, resin bond.

No.CodeSpec (mm)Package
10312A301505H150*12.7*0.550pcs/box
10315A301810180*12.7*1.010pcs/box
10320A302010200*32*1.010pcs/box
10330A302312230*32*1.210pcs/box
10350A302515250*32*1.510pcs/box
10360A303020300*32*2.010pcs/box
10370A303525350*32*2.510pcs/box
10380A304030400*32*3.010pcs/box
10390A305040500*50*4.010pcs/box

HRC 20 silicon carbide abrasivecut off wheels

For cutting the very soft non-ferrous metals HV < 200, silicon carbide material, Resin bond.

No.CodeSpec (mm)Package
10412S201505H150*12.7*0.550pcs/box
10415S201810180*12.7*1.010pcs/box
10420S202010200*32*1.010pcs/box
10430S202312230*32*1.210pcs/box
10450S202515250*32*1.510pcs/box
10460S203020300*32*2.010pcs/box
10470S203525350*32*2.510pcs/box
10480S204030400*32*3.010pcs/box
10490S205040500*50*4.010pcs/box




Payment & Shiping


RFQ

1, Min. Order Quantity

1 piece is OK.

2. How about your technical team construction?

We have professional technicians team with 10 years' experience.

3, What's our warranty?

12 months

4, Ways of payment

T/T, L/C, Pay pal, Western Union

5, Ways of shipment

EXW, FOB, DHL, FedEx, or upon your requirements

6, Are you a trader or manufacture?

We are manufacturer, owns our factory in Suzhou.

7, Can you accept OEM or ODM?

Of course,Logo is also acceptable

8, What is the delivery time?

No special requirements, can be delivered within 3 days. For customized models, delivery time shall be discussed and confirmed according to order



Contact


Prod Model: TJ 1210
Material: Silicon Carbide
Abrasive: Superabrasive
Shapes: Section Shape
Types: Cutting Wheel
Working Style: Cutting
Suzhou Trojan Industry Material Co., Ltd. is a supplier specialized in metallographic equipment and metallographic consumables. The company was founded in Suzhou (Shanghai) in China in 2005. We provide our customers the finest and most advanced equipment and consumables for sample preparation with professional technical support. For almost 11 years, Trojan's products have been widely used in lab for the metallographic sample preparation and analysis.

Our metallographic equipments include automatic & manual cutting machine, automatic & manual mounting press, automatic & manual grinding, polishing machines, analysis, hardeness tester. Metallographic consumables include alumina oxide, silicon carbide cut off wheel, diamond discs for cutting, compression mounting compounds, Acrylic system, Epoxy system for mounting press. Silicon carbide, alumina Abrasive paper, polishing cloth, polishing diamond suspension for grinding and polishing.

Our products are exported to the countries of European, American, Middle East, Asia, Africa, Australia, etc. We shall prompt science and technology innovation, serve our users honesty and credit, let our users be at ease and without worried to use our products in whole procession. The aim of our company is to enhance the benefits of man, and hence the company tries to serve the clients in all respects and regards the needs of the clients as the orientation for our efforts to do research work, and develop our products so as to provide our clients with reliable and fine-looking products easy to operate.
