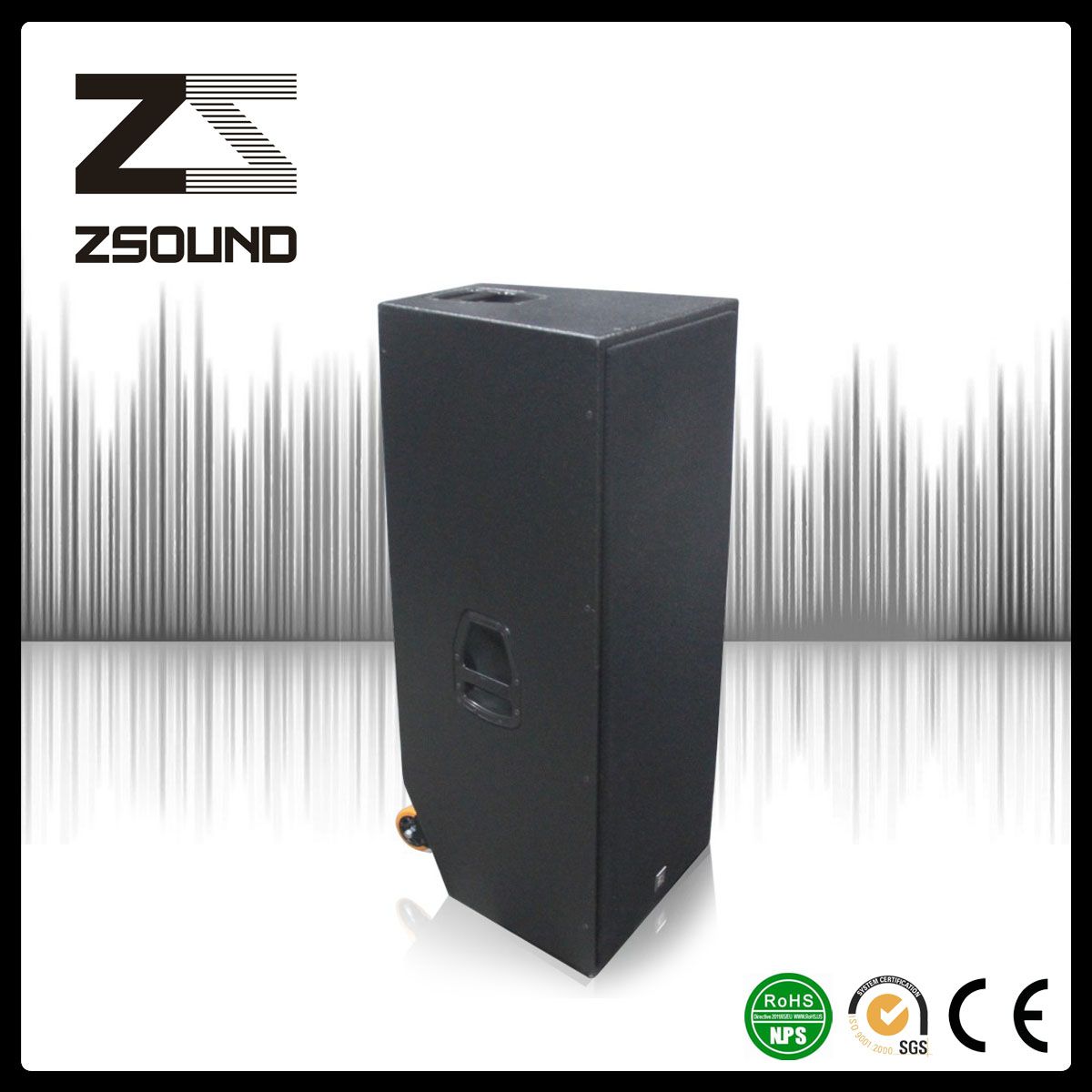

P153 is a large-scale full range speaker, which is designed for mid& small performances, no need any subwoofer. Its lower band can extend down to 40Hz. P153 applied one MF& HF coaxial horn(10" MF), the MF& HF sound ranges reaches 40M, extremely outstanding for outdoor stage using.
The enclosure consists of a 15″ LF driver,10″ MF driver and a 44mm composite aluminum diaphragm HF compression driver. The HF compression driver and MF driver forms coaxial structure. The voice coil of LF driver is 75mm, and the speaker frame is made of aluminum. The horizontal coverage of the HF horn is 80°, the vertical coverage of rotatable horn is 40 °. P153 provides 6pcs flying tracks used for fixed installations or hanging and angle modulation in touring performance. The cabinet is made of 18mm plywood, and finished with black durable water paint.Two handle cups are mounted on the top and bottom of the enclosure for easy carrying and transporting. The rear panel plate carries two parallel SPEAKON NL4MP connectors for loop in and loop out connections. The enclosure is well protected by black mesh grill and acoustical sponge.
Features:
Full band frequency response without subwoofer;
MF&HF coaxial structure;
Dolly design for easy transportation

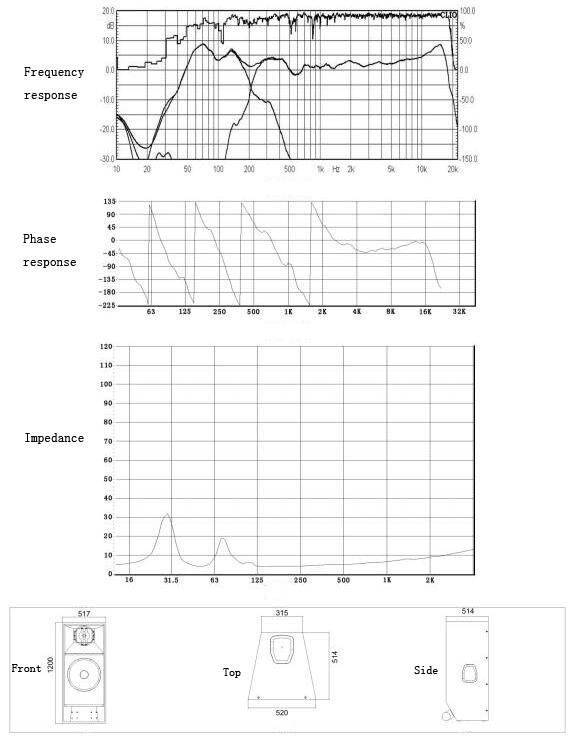

Specification:
| TECHNICAL SPECIFICATION | |
| FREQUENCY RESPONSE: | 45Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| NOMINAL COVERAGE (-6dB): | 60°(H)40°(V) adjustable |
| SENSITIVITY(@1w/1m): | HMF:103dB LF:98dB |
| POWER RATING (AES): | HMF:350W LF:600W |
| NOMINAL IMPEDANCE: | HMF:8Ohm LF:8Ohm |
| MAXIMUM SPL: | 128dB (continuous) 134 dB(peak) |
| DRIVERS: | LF 1 x 15" (75mm voice coil) neodymium woofer; MF 1 x 10" (65mm voice coil) neodymium mid-range; HF 1 x 1.75"( 44mm voice coil) neodymium compression driver |
| PHYSICAL DATA | |
| DIMENSIONS(H x W x D): | 1200 x 517 x 514mm |
| WEIGHT: | 57kg |
| CONNECTORS: | 2 x NL4MP Neutrik Speakon connectors |
| SPEAKER CABLES: | 1+1-LF, 2+2-HF/MF |
| MATERIALS: | 18mm oaken plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated foam |
Applications:
ZSOUND Pro Audio Technology co., Ltd is a company specializes in research, development, production and trade of ZSOUND pro audio.
The ZSOUND was derived form a speaker lab found by 4 speaker enthusiasts, they were form the same college and researched the brand new pro audio system together. From the driver of speaker, they selected form a large number of drivers to find out the excellent on. In the case of no suitable driver, they joint research with the speaker driver manufacturer to research the new driver for the high-quality loudspeaker box. The experience of many years of system debugging and the deep understanding of Pro audio system of the 4 people, had guided the speaker's development direction.
Pro audio system is not only a simple combination of speaker, amplifier and processor, the rational system design, installation, debugging and acoustical features are also the key to reply the true sound. ZSOUND provides the whole Pro audio system hardware, meanwhile it provides the system philosophy training. Philosophy system has already spread through the many times of Pro audio system technical training.
Today, ZSOUND have a lot of series of loudspeaker, including LA series line array, S Series sub-woofer, CM series coaxial monitor, M series monitor, CC series coaxial speaker, P series multi-function speaker, V series speaker, K series entertainment speaker. All ZSOUND products will have scientific design, accurate assembly and strict testing before being brought to marker, most of the product are applied to touring performance and fixed installation, such as stadium, theater, church,meeting room, music hall, bar, KTV, club, television stations and so on.
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
Sunny Yan
Sale Representative
Website: www.prozs.com
Mobile: +86 135818739656
Address: No.33, Jiaoxin Road, Nanha District, Guangzhou, GD, China
| Prod Model: | P153 |
|---|---|
| Certificate: | Ce, RoHS |
| Nominal Impedance: | Hmf:8ohm; Lf:8ohm |
| Maximum Spl: | 128dB (Continuous) 134 dB(Peak) |
| Driver Number: | Lf: 1X15 Inch; Mf: 1X10 Inch; Hf: 1X1.75 Inch |
| Power Rating(AES): | Hmf:350W Lf:600W |
| Frequency Response: | 45Hz-16kHz(±3dB) 40Hz-18kHz(-10dB) |
| Nominal Coverage(-6dB): | 60 Degree(H) 40degree(V) Constant Directivity |
| Weight: | 57kg |
| Connectors: | 2X Nl4MP Neutrik Speakon Connectors |
| Materials: | 18mm Oaken Plywood |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | SGS, ISO9001 |
| THD: | <0.005% |
| Monitor: | None |
