Textile Automatic Cutting Machine Cloth/Garment/Fabric End Cutter

Textile Automatic Cutting Machine Cloth/Garment/Fabric End Cutter
Price: US $ 50000-80000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal

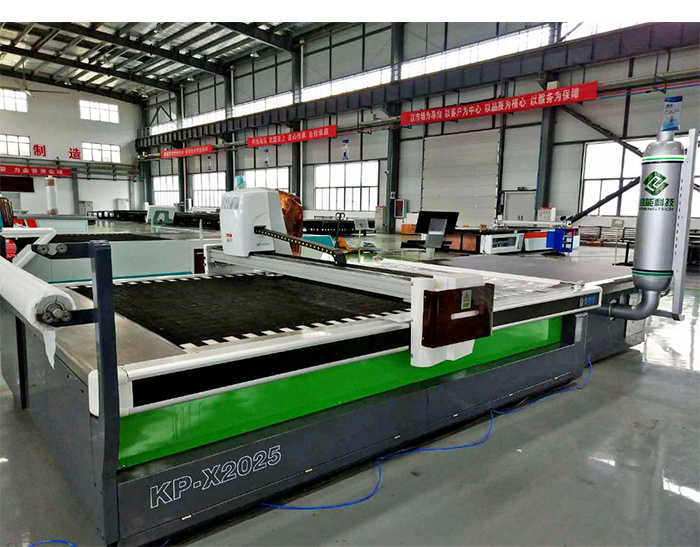

Textile Automatic Cutting Machine Cloth/Garment/Fabric End Cutter
The Cutting Machine is widely used in industrial garment cloth (knitted and woven), non-woven fabric, plush toys, shoes, leather, sofa cushion, car interior decorative fabric, bars, medical gauze, composite fabric, car seat, ect. Extremely suitable for cutting multiple layers of material at one time.

Outstanding Features:

Create newest auto cutter is mainly designed for composite fabric, which adopts Euro-America design concept. Its max cutting thickness can reach 70mm after absorption and general cutting length is 2000mm.
1.) computer design , automatic typesetting, saving original materials.
2.) computer controlled and automatic cutting, save the human resource, mass production.
3.) support many kinds of formats, direct open general dress design format, typesetting software.
4.) the unique algorithm and motion control technology , realized seamless between straight line and arc
5.) high cutting accuracy, self -design of automatic sharp pen cutter, high quality of cutter makes life longer.
6.) no need print out, save the typesetting, with high repeated utilization, plate-making management is convenient.
7.) easy to change the spare the spare part, and lower cost.
8.) nice automation,easy to operate.

Technical Parameters:

Model No.




Cutting area(mm0


Cutting thickness

70mm (vacuum suction)

Cutting speed(max)


Cutting accuracy


Cutting materials

Garment cloth (knitted and woven) ,non woven fabric, plush toys, leather, shoes, sofa, car seats, bars, medical gauze, composite fabric,etc.

Cutting style

Straight knife continuous up-down cutting

Cooling system

Auto air cooling system

Control system

Independently developed and able to connect with all kinds of CAD software




Multi-language ACS software ,auto change

Sharpen way

Double gear derogatory method

Air pressure supply


Max speed



Japanese Panosonic Servo motors&Drivers

Machine power






Machine out size(L*W*H mm)




Our Strengths:
1. Powerful Research & Developing Team:
Powerful R&D Team with over  10 years experience in program and control system on Inkjet plotter, and most Inkjet plotter suppliers adopt our control system.
2. Strict Quality Control:
100% strict test of high temperature aging without fault by 7*24 hours before packing.

3. Raw Material:
All raw materials are supplied from strict control channel. All our suppliers are high reputation  companies in China. We build long and stable cooperation relationship with them. In case of any quality problem, it can be easily be tracked.

4. Stable Control System:
All control systems are 100% developed by our own, which are of absolutely advantage compared with other suppliers. Their strong stability ensure the machine running steadily and durably.

5. Fast Delivery Time:
We have our own machining plant and all of our workers are well trained with more than 3 years skilled industry experiences. Upon these the delivery  time and quality are ensured.

6. Package:
 International standard plywood case,  custom suffocating free.

Q1.How to get the most suitable machine and best price?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.If we don't know how to use the machine, can you teach us?
Yes, we will, if you come to China, we will offer you free training until you can use machine freely.
Q3.How about your after-sales service?
We supply 12 months warranty for the whole machine (except for consumables & man made damages)and  24 hours service by phoneSkype, WhatsApp or Wechat.
Q4. Quality  Control
The whole production  procedures are under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work  very well before being out of factory.
The testing video and pictures will be available before delivery.

Prod Model: 2025
Cutting Type: CNC Mechanical Cutting
Application: Garment, Furniture, Car Interiors, Bags, Shoes
Cutting Mode: Vibrating Knife
Max Speed: 4000rpm/Min
Host Working Voltage: AC220V+/-10%
Vacuum Pump Working Voltage: AC380V+/-10%
Transmission Port: Ethernet Port
Fixation: Vacuum Absorption
Warranty: One Year
Power(W): 24kw / 27kw / 32kw
Guangzhong Yuda Automatic Machinery Co., Ltd is a high-tech company, which is focus on manufacturing Research and Development, And also the sales of CAD/CAM inkjet Plotter and Cutting Machine. Our Products spread garment\bags \gas mold \decoration and building design field etc.

In home, we are a manufacturer with complete independent researh and development capability in garment CAD inkjet printing control system, as our core technology of wide-frame printing control system to lead the market. Most of inkjet plotter companies adopted our garment CAD inkjet printing control system in domestic. Due to the stability of system and easy maintenance, garment CAD inkjet plotter quickly popularize in the industry, thus creating a factions of "Surf" Inkjet plotter. According to statistics, "Surf" factions occupied 1/3 in entire market of garment CAD inkjet printers.

"Quality is social responsibility" as company's philosophy.

Surf International(HK) Co., Ltd is Yuda's another trade company, which is registered in Hongkong. "Surf"as one of key brands, For its stable operation, high quality and durable is highly recognized in customers both domestic and overseas. With its reputation spread, Surf has become a most creditable brand in this field...Inevitably. It ensured high quality of product by our professional research and developing team. We have strong strength of product development and absolute advantage of technology both in hardware and software. Especially in programming development, it has already in leading position.
