Tct Weldon Shank Magnetic Annular Drill

Tct Weldon Shank Magnetic Annular Drill
Price: US $ 18-50/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

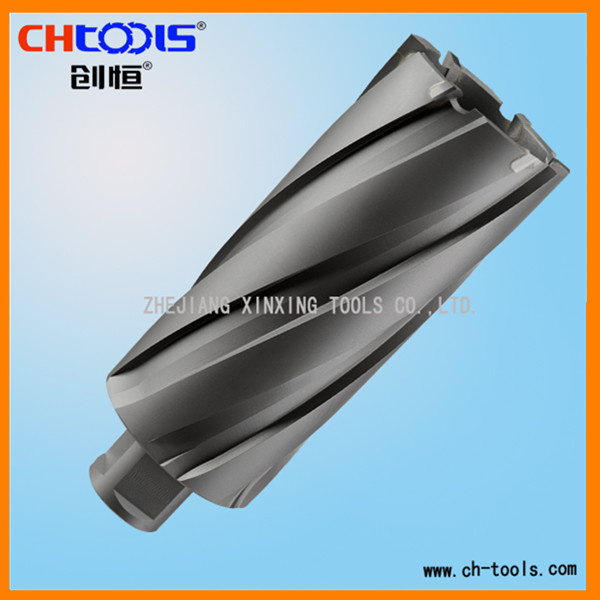

TCT weldon shank magnetic annular drill

1,Suitable for cutting holes on various materials with high speed;
2,Selected speical-purpose carbide tips for reduced damage of tips and better endurance;
3,Multi-cut geometry for increased chip removal and less resistance;
4,Various shank versions fit all magnetic drills and press;
5,Diameter from φ12~φ150mm,Cutting depth: 35mm,50mm,75mm and 100mm;
6,Speical dimensions φ150mm~φ200mm with 200mm D.O.C. are available.

ModelSizeModelSize
  DNTX-50180 18*75  DNTX-50430 43*75
  DNTX-50190 19*75  DNTX-50440 44*75
  DNTX-50200 20*75  DNTX-50450 45*75
  DNTX-50210 21*75  DNTX-50460 46*75
  DNTX-50220 22*75  DNTX-50470 47*75
  DNTX-50230 23*75  DNTX-50480 48*75
  DNTX-50240 24*75  DNTX-50490 49*75
  DNTX-50250 25*75  DNTX-50500 50*75
  DNTX-50260 26*75  DNTX-50510 51*75
  DNTX-50270 27*75  DNTX-50520 52*75
  DNTX-50280 28*75  DNTX-50530 53*75
  DNTX-50290 29*75  DNTX-50540 54*75
  DNTX-50300 30*75  DNTX-50550 55*75
  DNTX-50310 31*75  DNTX-50560 56*75
  DNTX-50320 32*75  DNTX-50570 57*75
  DNTX-50330 33*75  DNTX-50580 58*75
  DNTX-50340 34*75  DNTX-50590 59*75
  DNTX-50350 35*75  DNTX-50600 60*75
  DNTX-50360 36*75
  DNTX-50370 37*75
  DNTX-50380 38*75
  DNTX-50390 39*75
  DNTX-50400 40*75
  DNTX-50410 41*75
  DNTX-50420 42*75










Prod Model: DNTX
Shank: Weldon Shank
Shank Diameter: 19.05mm
Depth: 75mm
Treatment: All-Ground
Performance: Better Endurance
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.

Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.

We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

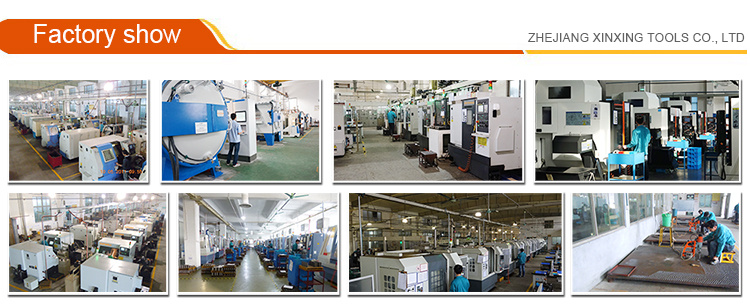

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.

For 25 years, the company has won over one hundred honors successively.

In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
