Table Model CNC Plasma Flame Gas Cutting Machine Cutter

Table Model CNC Plasma Flame Gas Cutting Machine Cutter
Price: US $ 8450-8800Set
Min Order: 1Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal




Main Features

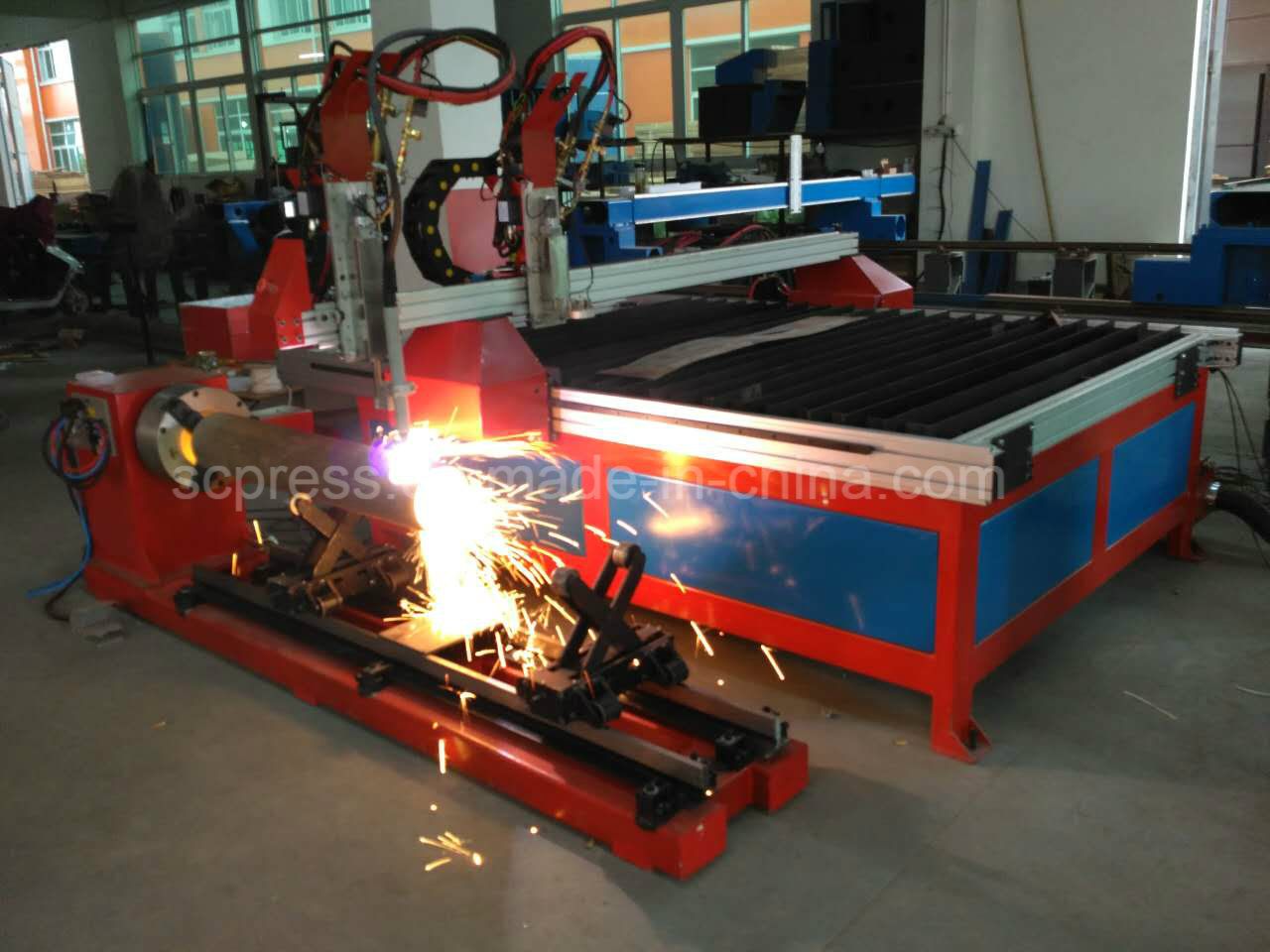

Desktop tube board integrated CNC cutting machine is our research and development, in order to more economical and practical CNC cutting machine, in the original desktop on the basis of the side with the intersecting line pipe cutting function, greatly reducing the occupation of the venue
TUBE NESTING SOFTWARE
Software operation is simple, intuitive interface, high degree of intelligence

Can be cut off the pipe, openings, slotted, branch pipe, consistent and other operations, and may at any time to expand the new features
Can carry out tube batch nesting, and can generate a variety of formats of control code
Axis direction, angle, output code format and other related functions can be defined by the software settings file
Complete independent property rights, procedures to update fast, convenient, support multiple
Machine use environment:
Temperature:-30 - 60 ºC; Humidity≤90%;Voltage:220V±10% 50Hz;


TECHNICAL SPECIFICATIONS
Specification           SCP1530
Voltage        220±10%V  AC 50HZ/60HZ 220W
Drive modeBilateral drive
Flat cutting method        Fire, etc. 2 with
Effective cutting range1500×3000
Cutting speed(mm/min)   0-6000(max8000)
Flame raised form          Manually raised
Plasma elevation formTurn up by arc pressure ( Automatic)
Plasma cutting typeAir
Applicable gas typeOxygen + acetylene / oxygen + propane
Gap pressure(Mpa)Max 0.08
Oxygen pressure  (Mpa)Max 0.7
Plasma voltage    Powermax85
Arc pressure regulatorHong  yuda
Numerical control systemMicro EDGEPR, American
Motor drivePanasonic servo motor ,Japan
Nesting softwareTube and tablet each set of software
RelayOmron
This product in the user no special requirements, the standard propane cut mouth

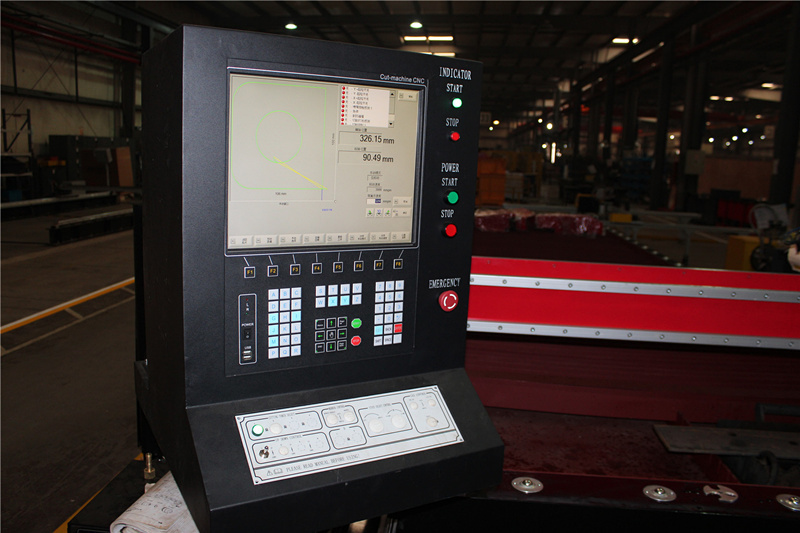

Controller Edge Pro from Hypertherm USA

Software Supports HPRXD and True Hole™ Technology
Hypertherm Sensor THC and Pronest nesting software
Heavy-Gauge Steel Construction
Panel Mounted 15" (38 cm) Flat Panel TFT Touch Screen
Hypertherm Phoenix CNC Software
Microsoft Windows XP® - Embedded Version
Intel 2.4 GHz, 512 Megabytes RAM or greater
120 Gigabyte Hard Drive or greater
 2.0 USB Ports, (1) Parallel Port, (1) RJ-45 Network Port and (2) RS-232
Serial Ports
RFI / EMI Shielding for Machine Side Opto-Isolation
1024 Lines of User-Definable Interface Signals ( 512 In / 512 Out )
On-Board Voltage/Temperature Sensing and Motion Diagnostics
Industrial Keyboard & Mouse



Prod Model: SCP-1503
Power: Hypertherm From USA
Main Motor: Siemens Motor From Germany
Electric: Scheider From France
Servo: Panasonic Servo Motor, Japan
Relay: Omron
Nesting Software: Tube and Tablet Each Set of Software
Controller: Edge PRO From Hypertherm USA
Horizontal Air Cable Drive: Hypertherm
Votage: 220V/380V/415V(Optional)
Safety: Ce and IP54
ShenChong Forging Machine Co., Ltd. is committed to bringing high standard of professionalism, integrity and service in order to achieve a high reputation in the manufacturing & processing industry. We are a professional manufacturer of National Mechanical Industry, which produces press brake, shearing, section forging machines. The registered capital is RMB 6, 000, 000.

Shenchong occupies 20, 000 square meters workshop and office place. At present, the Company is staffed with 200 employees, 70% of which have junior college education background. During the producing of high-tech machine in the long run, the Company is not only able to supply a full range of CNC products, but also foster a strong skilled and talented team. The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

Based on the advanced international management mode, our company brings pays more attention to the machine designs and quality of raw materials. In the process of prospecting its modern corporate system, the Company has attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovationm, equipment. We believe that we are a competitive supplier in our field and we warmly welcome your inspection.
