Impregnated diamond core bit:
Introduction of Impregnated diamond core bit
1.The impregnated diamond bits are the most commonly used bits in the mineral exploration industry,
as they have the widest range of application.
2.Impregnated Diamond Core Bits are manufactured with very small, high quality sythetic diamonds,
mixed evenly through a metal alloy matrix.
3.The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new
sharp diamonds are exposed to continue cutting through the rock rock.
Features of Impregnated diamond core bit
1. High wear resistance and impact-resistant toughness
2. Long drilling life
3. High drilling efficiency
4. Labor intensity can be reduced
Dimensions of Impregnated diamond core drill bits
standard outside and inside diameter
Details of Impregnated diamond core drill bits
1. Bit crown profiles
2. Waterway:
3. Matrix height:
6mm, 8mm,9mm,10mm,12mm,14mm are available, and 6mm is our company's default
Generally, 6mm height is recommended for conventional bits, 8mm or higher are recommended for wire line bits
4. Threads:
standard threads as well as thread types required by clients are available
Other available types of diamond drill bits
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: WLA. WLRSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: WLQ. WLB3, RSG, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: WLN, WLN3, NMLC,
NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: WLH, WLH3, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: WLP, WLP3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

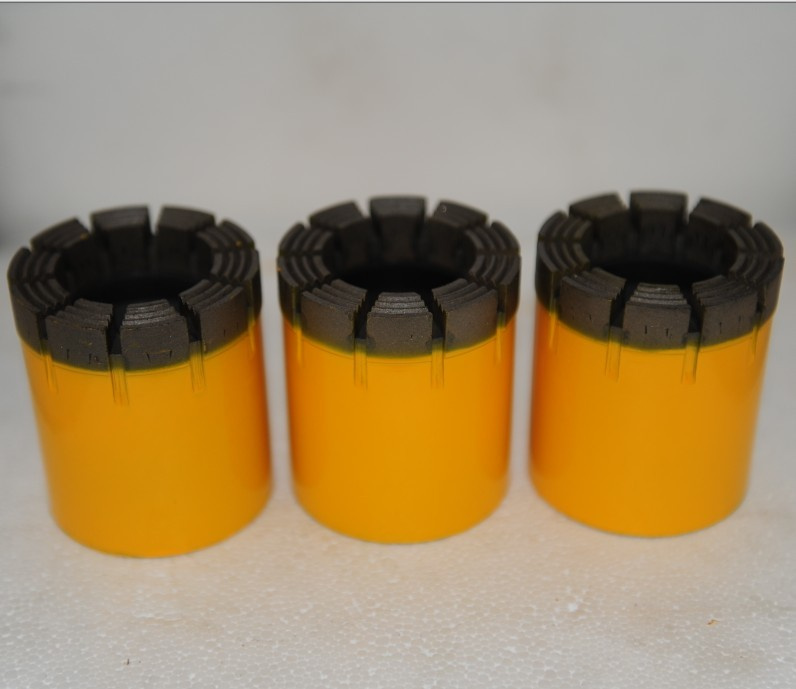

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
