This kind of MM-S181R is the 1100W powerful double mitre Metal Band Saw featuring a Tiling Saw Arm and Saw Frame Swivels allowing angular cuts from -45 to +90 degree, this keeping space requirements to a minimum as there is no need to change the position of the material when mitre cutting. The optimal cutting capacity and the adjustable cutting speeds make this metal bandsaw ideal for DIY, Craftsmen and workshops. Such Miter Band Saw is an economic
alternative to frame and circular metal saws.The sawing machine is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification.

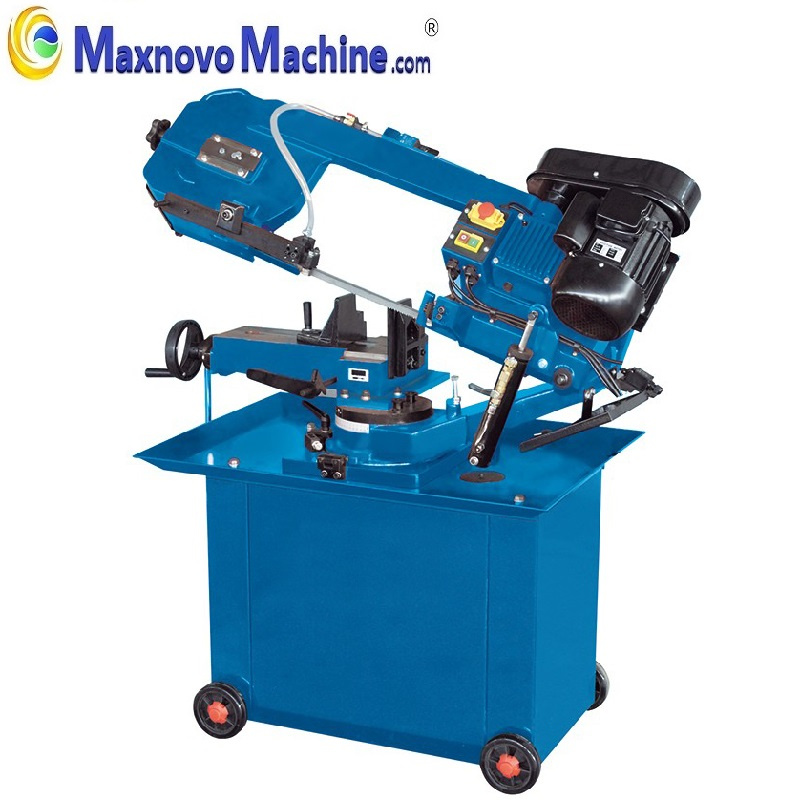

The 1100W Metal Band SAW with Tiling Saw Arm and Saw Frame Swivels allowing angular cuts from -45 to +90 degree
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Saw frame swivels - allowing angular cuts from -45 to +90 degree
-Tiling saw arm for mitre cutting
-Swivel Head Metal Cutting Band Saw
-1100W powerful driving motor
-Long life - the saw blade is used over its entire length
-Low-noise running
-Stable casting type
-Lowering of saw bow by means of hydraulic cylinder with infinitely variable throttle valve
-Micro switch for automatic limit stop
-Scale good read for angle adjustment
-With high-grade bimetallic saw band supplied as standard
-Saw belt tension at the front adjustable via hand-wheel
-Adjustable material stop for series productions
-Protective switch for the belt cover
-Fully equipped machine, the user can immediately start to work productively
-Ideal for cutting of profiles, pipes, solid materials and etc
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Metal Band Saw With Tilting Saw Arm |
| Product Item : | MM-S181R |
| General Information |
| Lifting the saw bow : | Manual |
| In Feed : | Continuously variable adjustable |
| Saw Band Speed : | 34 /41 /59 /98 m/min |
| Saw Band Dimensions : | 2362 X 19 X 0.9 mm
( L X W X Thickness ) |
| Cutting Angle : | From -45 degree to +90 degree |
| Working Capacity |
| Cutting capacity Round at 90 degree : | Ø 180 mm |
| Cutting capacity Flat at 90 degree : | 180 X 280 mm |
| Cutting capacity Round at 45 degree (L/R) : | Ø 128 mm |
| Cutting capacity Flat at 45 degree (L/R) : | 128 X 80 mm |
| Electrical Connection |
| Connecting Voltage : | Single Phase 230V or Three Phase 400V |
| Main Motor : | 1100W powerful motor |
| Coolant Pump Motor : | 50W |
| Dimensions |
| Net Weight : | 175 KGS |
| Gross Weight : | 200 KGS |
| Packing Size : | 1350 X 780 X 1200 mm |
| Packing Type : | Export Type Wooden Case |
| Standard Equipment : | Bi-metal saw band
Machine substructure
Coolant Pump |
We are the professional OEM Manufacturer Vendor for world famous GERMANY Top Brand Machinery Companies for more than 12 years, high precision machine for demanding users. Our well-established team has good technical background and full sincerity to ensure all customers (same as you) world-wide to buy safely, qualified teammates strives each day to give customers best machines and best service.
Moreover, you certainly would get trustable support and right solutions from us in time, the right solution for every application, you may solve any task in this way. The MAXNOVO Guarantee of quality: All MAXNOVO products are produced under high quality requirements.
It is our full pleasure to share latest product knowledge and professional experience with you together, to support you and your business much more success. Welcome customers to visit our company official website (www.maxnovomachine.com) to send enquiry to us so you would get the best factory direct price, it is All For You !
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM manufacturer factory with ISO certificate.
2. Question : Why choose cooperate with us ?
Answer : Right people, Right product, Right price ;
Manufacturer Factory -wide customer awareness ;
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;
3. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM to meet clients' requirements.
4. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
5. Question : What is the average delivery time ?
Answer : Most of time, it would be within 1 week since after confirm receiving customers' contract money.
