Super Quality Hammer Crusher Parts & Hammers

Super Quality Hammer Crusher Parts & Hammers
Price: US $ 20000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Description

    Crusher hammer such as clinker crusher hammer and raw material hammer is one of the core parts of hammer crusher.Our hammer crusher parts:crusher hammer use refining, vacuum casting,directional solid and etc technicals to increase the grain refinement and make the hammers performance achieve the best performance. Hammer hasrdness is the most essential factor in determining hammer life so the hammer head must be extremely hard and resistant to wear. Our company uses a specical method of heat treating that make the hammer hardness and wear resistance reach the best state of cooperation, thus greatly improve hammer's service life time. According to the material, our crusher hammer can be dividede into: high manganese hammer, high chrome hammer, bimetal composited hammer. The bimetal composite hammer, our national patent product, is called "Hard Stone Killer" by many clients. Our crusher hammer generally can save users 1/3 equipment investment, saving 1/2 the power consumption, save a lot of maintenance costs.

     ZTIC is the leader in offering wear solutions to crusher operators in China. We provide wear parts with designs and alloys specifically developed for each application and specific location within each crusher.Our crusher parts are made of manganese steel - the toughest and most wear-resistant steel available.  In addition to the crusher components listed above, we also make cast components for the crusher itself such as the pitman arm, side plates, cheek plates, etc.

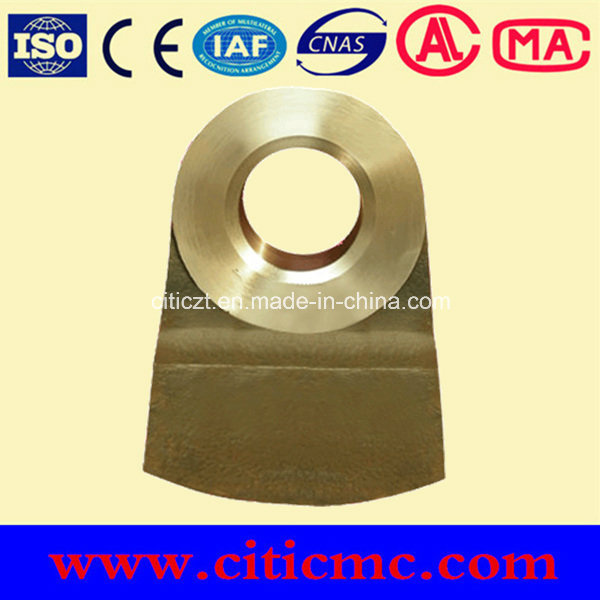

1.High Chrome Crusher Hammer

For our high chrome hammer or hammer block,while producing:
Adopt progressive solidification process, makes Cr7C3 type carbide vertical growth against the working face. In the case of not lower the toughness of the parts, at the same time the macro-hardness of the working face and micro hardness of Cr7C3 type also improved.
Use multiple micro-alloyed methods to receive dispersion strengthened and progressive hardening.
Use annealing, quenching, tempering heat treatment process to make the blow bars'surface hardness reaches 58-65HRC.

   Hammer crusher is suitable for crushing brittle, resistant plate, water content not high materials. In construction industry,chemical industry, electric power,mining,metallurgy and other industries, small rock crusher (or hammer block) are used to crush limestone, shale,coal,gypsum,chalk,asbestos ore,coke etc.Usually in the ore it contains SiO2,Ai2O3 etc high hardness stone which hardness up to 1100~1800HV,viewing from theoretical point,the hardness ratio requirment between hammer (or hammer block) (HM) and crushed material should be no less than 0.8,that means the hardness of the hammer (block) working parts should be above 1375-2250HV,so that the hammer can withstand the wearing and cuting from the crushed material and receive good wear-resisting performance. Nowadays, single material can't have the conbination of high hardenss and toughness, we specially design thesmall rock crusher (or hammer block) which working parts using high chromium cast iron and assembly parts using alloy steel to receive good performance servce.Working in with our resistant plate will get the best performance.
Our high chromium cast iron hammer (or hammer block) adopt the lost foam mold vibration casting. Under vacuum negative pressure vibration casting, we not only can refine grain, improve the density of the casting parts, but also make the gas and inclusion up floating, and purify the chromium iron water, so as to improve the comprehensive mechanical properties of the parts, greatly improve the service life and fully satisfy the users.
Details of High Chrome Crusher Hammer :

High Chrome Crusher Hammer




Spectrometer chemical analysis and control while producing

Molding Process

Water-glass sand casting or lost form casting

Melting facility

Medium frequency electric furnace

Heat Treatment

Anneal, quenching, tempering

Quality Guarantee

One year against manufacturing defeat


Hardness, flaw detector test


ISO9001~2008 Passed; BUREAU VERITAS

2.High Manganese Hammer
The high Mn hammer head serious product make by our company ,while producing:
use the molding cold iron in the working part in order to increase the compactness of working part.
Use the refining techniques of furnace bottom blowing argon to quick-wear part. We use diversified qualitative change to increase grain boundary strength.
Use diversified inoculation to refined grain.
These High manganese little hammer for clinker crusheringinduce the hammer made by our company with higher wear resistant safety and reliability nature. Our customers are satisfied with our hammer, and our goods are exported to serious countries.
Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
? Increased wear life
? Less on-going wear part maintenance
? Designs and tools for quicker change out
 Hammer crusher wearparts:

Hammer crusher wearparts.
We produce Hammers in One and Two-Piece styles, Grates, Breaker Blocks, Side Liners, Breaker Bar Sleeves, Rotor Hubs, Complete Rotor Assemblies, Top Cover Liners and Throat Collars.
Breaker Blocks
Side Liners
Breaker Bar Sleeves
Rotor Hubs
Complete Rotor Assemblies
Top Cover Liners
Throat Collars
Prod Model: Super quality hammer crusher parts & Hammers
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: High Chrome Crusher Hammer
Control: Spectrometer Chemical Analysis and Control While P
Molding Process: Water-Glass Sand Casting or Lost Form Casting
Melting Facility: Medium Frequency Electric Furnace
Heat Treatment: Anneal, Quenching, Tempering
Testing: Hardness, Flaw Detector Test
Certificate: ISO9001~2008 Passed; Bureau Veritas
Quality Guarantee: One Year Against Manufacturing Defeat
Luoyang Zhongtai Industries Co., Ltd. (LYHMC) is a global supplier of technology and services to customers in the process industries, including Mining, Construction, Metallurgical, Environmental, Power, Chemical, Marine, Casting&Forgings.

LYHMC has been specialized to focus on for the mining of coal, ferrous metals, non-ferrous metallurgical and mining industry, mining, nonmetal mines, cement, building materials, ceramic proppant industry, power industry, petroleum, chemical industry, transportation, the tourism industry and other customers to provide complete sets of major technical equipment, high-tech products and technology services, in particular ----

• Roasting kiln (oven), pelletizing kiln, cooler, jaw crusher, vibrating screen, sintering machine, tunnel kiln, shredders, cooling tower, as the representative of the metallurgical and mining machinery and equipment and petroleum coke processing equipment

• Mainly to the ore mill, crusher, set spiral classifier, cyclone separator, flotation machine, transportation is one filter dewatering machine and screening sets of mineral processing equipment

• Preheater, dryer, made of powder machine decomposition furnace, roller press, vertical mill, crusher, rotary kiln, ball mill, preheater, making powder machine, cooling machine, dryer, cooling towers and other host devices as well as belt conveyors, feeders, bucket elevators, chain plate conveyor and other auxiliary equipment on behalf of the 5000t / d new dry process cement clinker production line as the representative of the equipment of the cement and building materials

• Single rope winding and multi-rope friction mine hoist, mine conveyor equipment

• A series of jaw crusher series impact crusher series cone crusher, roller press, ball mill, vertical mill, high pressure roller mill, spring cone crusher, circular vibrating screens and other equipment as the representative of broken screening plants

• A single wire loop fixed grips gondolas passenger ropeway, single track circulation off hanging passenger ropeway, pulsating cyclic group car passenger ropeway, two-the reciprocating passenger aerial tramway, towing passenger ropeways as well as single-wire loop aerial two-cycle tramway as the representative of the air passenger, cargo ropeway

• Itself back basic steam calcination furnace, the outer back the basic steam calcination furnace as the representative of sodium bicarbonate production line equipment, and the synthesis column, distillation column, a cooling tower, tank, heat exchanger, reactor, dryer, condensation, reactor, feeding machines and other equipment for the petrochemical equipment, as well as the heart of the oil rig equipment --- oil mud pump and other petrochemical equipment

• Casting&Forgings: Castings by the company such as--Racks, Gears, Tyres, Supporting Rollers, End Cover, Propeller Brackets for ships Horns etc., Large Bearing Rings; Large Forgings--High-Power Turbine Generator Rotor, Large Hoist Shaft Rollers, Forgings for ships, Pressure Container etc.
