Super Fine Diamond Abrasing Powder

Super Fine Diamond Abrasing Powder
Price: US $ 0.1-0.2carats
Min Order: 10carats
Pay Type: T/T,Western Union,Paypal,Money Gram
Super Fine Diamond Abrasing Powder

Synthetic diamond is the hardest industrial material. It is also known as laboratory-created diamond, laboratory-grown diamond, cultured diamond or cultivited diamond) is diamond produced in an artificial process, as opposed to natural diamonds, which are created by geological processes.

 The properties of synthetic diamond depend on the details of the manufacturing processes,however, so synthetic diamonds (whether formed by HPHT or CVD) have properties such as hardness, thermal conductivity and electron mobility that are superior to those of most naturally-formed diamonds.

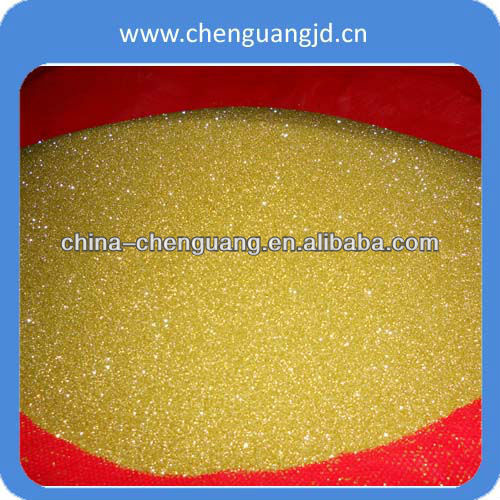

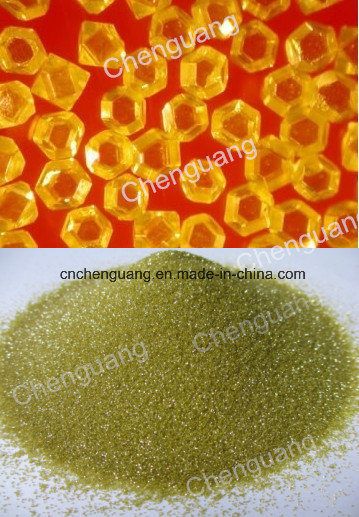

Synthetic Diamond Grit
1. Complete crystal forms
2.High purity
3.Great thermal stability
4.TI&TTI value reaching the international level

(1 )Item: synthetic diamond grit
Color: yellow
Grit Size:
 16/18(D1180),18/20 (D1001),20/25 (D851),25/30 (D711),30/35 (D601),35/40 (D501)
40/45 (D425), 45/50 (D356), 50/60 (D301), 60/70 (D251),70/80 (D213), 80/100 (D181)
100/120 (D151),120/140 (D126),140/170 (D107),170/200 (D91),200/230 (D76)
230/270 (D64),270/325 (D54), 325/400 (D46)

Application:
Synthetic diamond is the hardest industrial material. It is characterized as high strength, excellent wearability and thermal stability . Synthetic diamond grit is suitable for making diamond saw blades, circular saws, drill bits, wire saws and milling tools .
Also used for high-end grinding tool, hard alloy, stone, ceramic and other hard material grinding.

Picture:

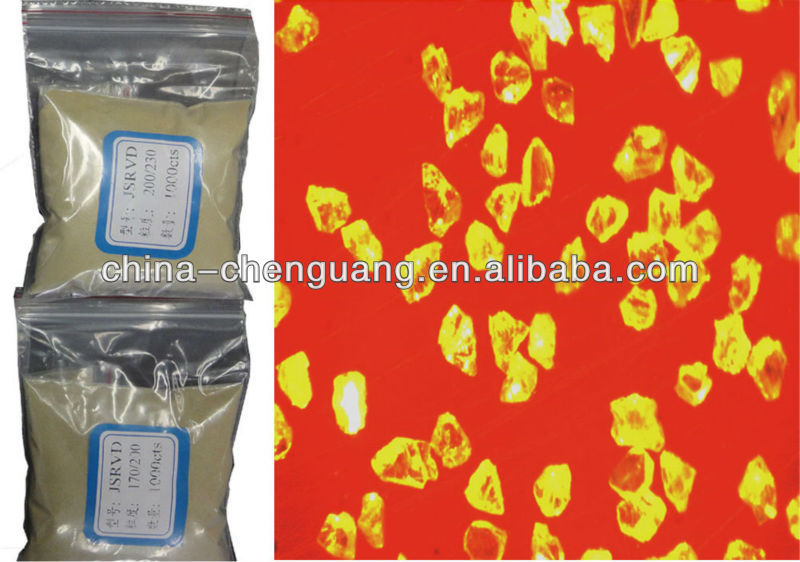

(2)# ‚ RVD Diamond Crushing Material:

  1. Irregular shape

  2. Good self-sharpening

  Item: rvd diamond crushing material

 Size:

    100/120 230/270

    120/140 270/320

    140/170 325/400

     170/200 400/500

     200/230 500/600

Applications:
 1.Suitable for resin bond diamond tools making and rough grinding. For making Diamond Saw, Diamond Blade, Grinding wheels, Drills, Electroplate tools, etc.

 2. Widely used in machine, metallurgy, oil, geology, building materials, electron,

and meter, national defense industry and frontiers of technology.

 Picture:



(3) # ƒ Synthetic Diamond Micron Powder:


For polishing: 0-0.5,0-1,0.5-1,0.5-1.5,0-2, 1-2,1-3,2-4,2.5-5,3-6
For Lapping   ; 4-8, 5-10,6-12,8-16,10-20
For Grinding  : 12-22, 20-30,22-36, 36-54


Our company's other available size of industrial synthetic diamond:

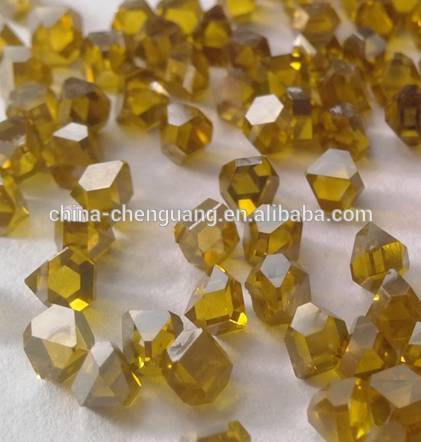

4)# Big Size Synthetic Diamond

(Application:  cutting tools, drilling tools, grinding tools, dressing tools, etc.)

18/20  16/18   14/16   12/14  10/12  1.0mm  1.2mm  1.4mm  1.6mm     1.8mm  2.0mm  2.2mm  2.4mm  2.6mm   2.8mm   3.0mm

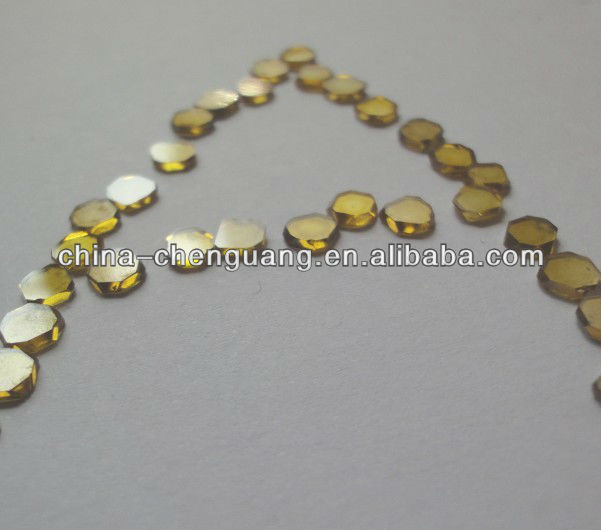

5)# Synthetic Diamond Plates
(Application : cutting , dressing, optics tools, wearing parts, etc.)
   2.5mm*2.5mm*1.1mm      3.0mm*3.0mm*1.1mm    3.5mm*3.5mm*1.1mm
   4.0mm*4.0mm*1.1mm      4.5mm*4.5mm*1.1mm    5.0mm*5.0mm*1.1mm

Packaging & Shipping


Company Information
 Company Profile:

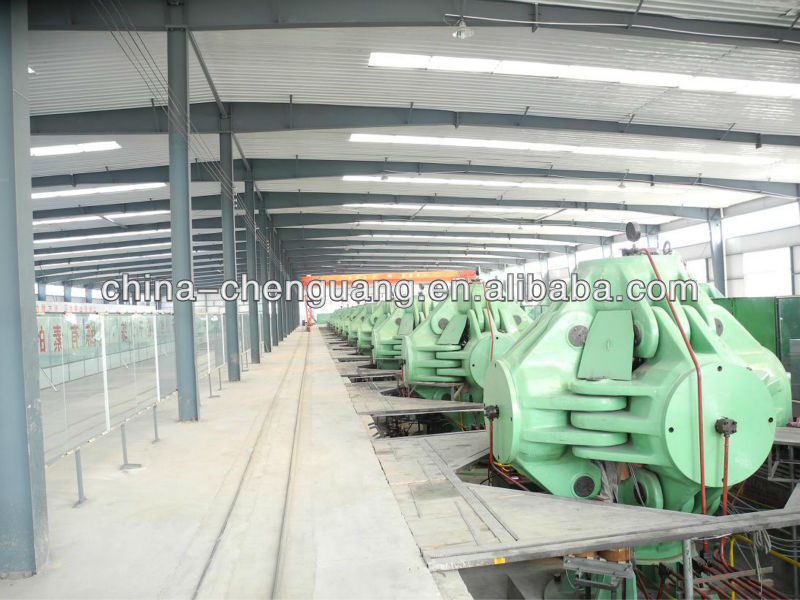

Chenguang machinery & Electric Equipment Co.Ltd (Diamond division) specialized in development, production, and marketing of ultra-hard materials. We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since 1993. We utilize a wide range of advanced production equipment and test instrument in an environment using strict quality control procedures for all our products and solutions for many well-known Chinese enterprises. Who have enjoyed at least 10 years with us.
We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.





Prod Model: cs
Mesh Size: 40/50
Color: Yellow
Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.

We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.

Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
