Stx-603 Precision Diamond Wire Saw

Stx-603 Precision Diamond Wire Saw
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal

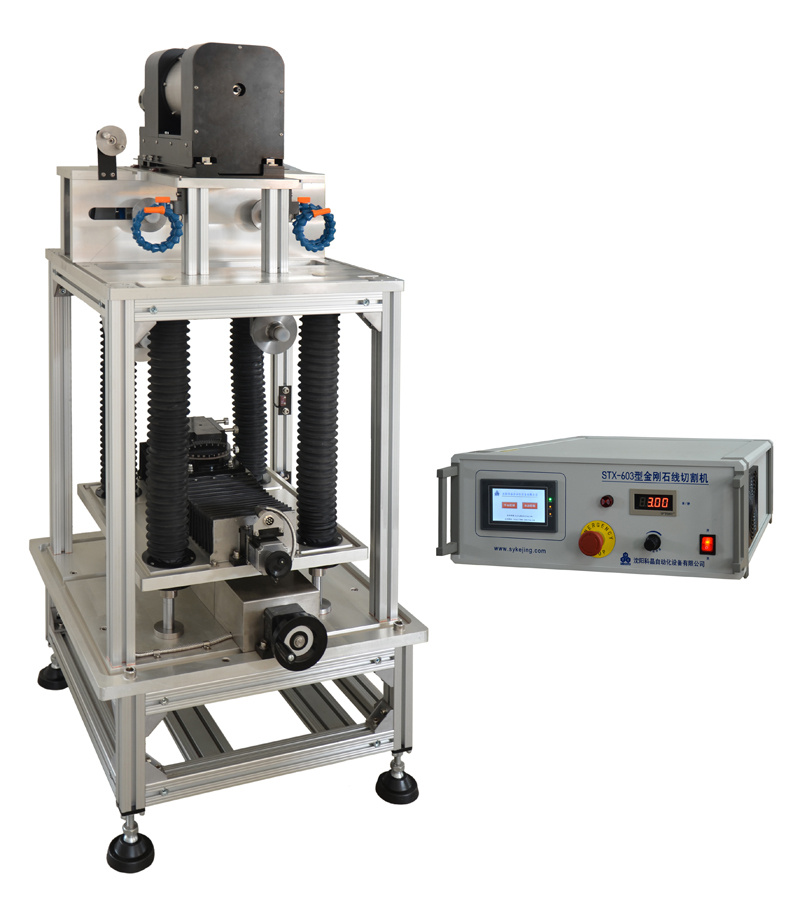

STX-603  Precision Diamond Wire Saw
Model:STX-603  Precision Diamond Wire Saw
STX-603  Precision Diamond Wire Saw is a CE certified cutting saw and designed for material researchers to precision cut materials, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc. Especially for precision cutting ultrathin samples, the final thin can reach to 0.1mm. Product sells to research institutes, universities and research department of famous companies, small and medium-sized companies for the relevant material analysis.
Precision cutting analytical material samples, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc.
1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile material.
2. Cutting by diamond wire, convenient to operate, good quality.
3. Heavy-duty aluminum alloy structure with compact size.
1Wire traveling speed0~3m/s(adjustable)
2Diamond wire length≤80m
3Diamond wire diameter≤0.45mm
4Z-axis operating platform max travel distance≤165mm
 Y-axis operating platform max travel distance≤180mm
5Y-axis traveling position accuracy0.01mm
6Two dimension adjustable operating platformHorizontal rotating :360°, Two dimension vise:(+/-)10°, position accuracy:5'
7Max. cutting diameter and lengthØ150mm×150mm
Specification:1. Size:617mmx 620mm x 1451mm
2. Net weight:110kg
Diamond wire2pcs
Tension wheel2pcs
Leading wheel2pcs
Water pump1pc
Resin ceramic block2pcs
Accessories :
1. Diamond wire:Φ0.14mm, 0.20mm, 0.30mm, 0.40mm,0.45mm
2. Cutting coolant Circulating Tank with Pump
 Cool Lubricant
Carton, suitable for long-distance transport


1, Min. Order Quantity
1 piece is OK.
2. How about your technical team construction?
We have professional technicians team with 10 years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer, owns our factory in Shandong .
7, Can you accept OEM or ODM?
Of course,Logo is also acceptable
8, What is the delivery time?
No special requirements, can be delivered within 15 days. For customized models, delivery time shall be discussed and confirmed according to order

Prod Model: STX-603
Shandong Ziyu Machinery Co., Ltd, situated at Jiaodong Peninsula in Shandong province which is famous for its outstanding person and excellent geographical location, possessing beautiful sceneries, comfortable weather and convenient water, land and air transportation.

As one non-governmental enterprise with combination of science, business and trade, our company covers 18, 000square meters floor area, owns over 30 qualified technicians, including 5 national grade technologists and possesses strong power to carry out research and development depending upon our own scientific research organization and develop wood machinery, hardware tools and electric tools by ourselves. Meanwhile, performance and design of many products have filled the blank state of similar products in China and many technologies have won national patents and are in highest popularity in the world.

From 2008, every year, we often take part in lots of exhibistions home and abroad, In the exhibition, we can talk to many customes from some countries, and we get at least 8- 10 oders, and the value is USD200000
