| Price: | US $ 99-1999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

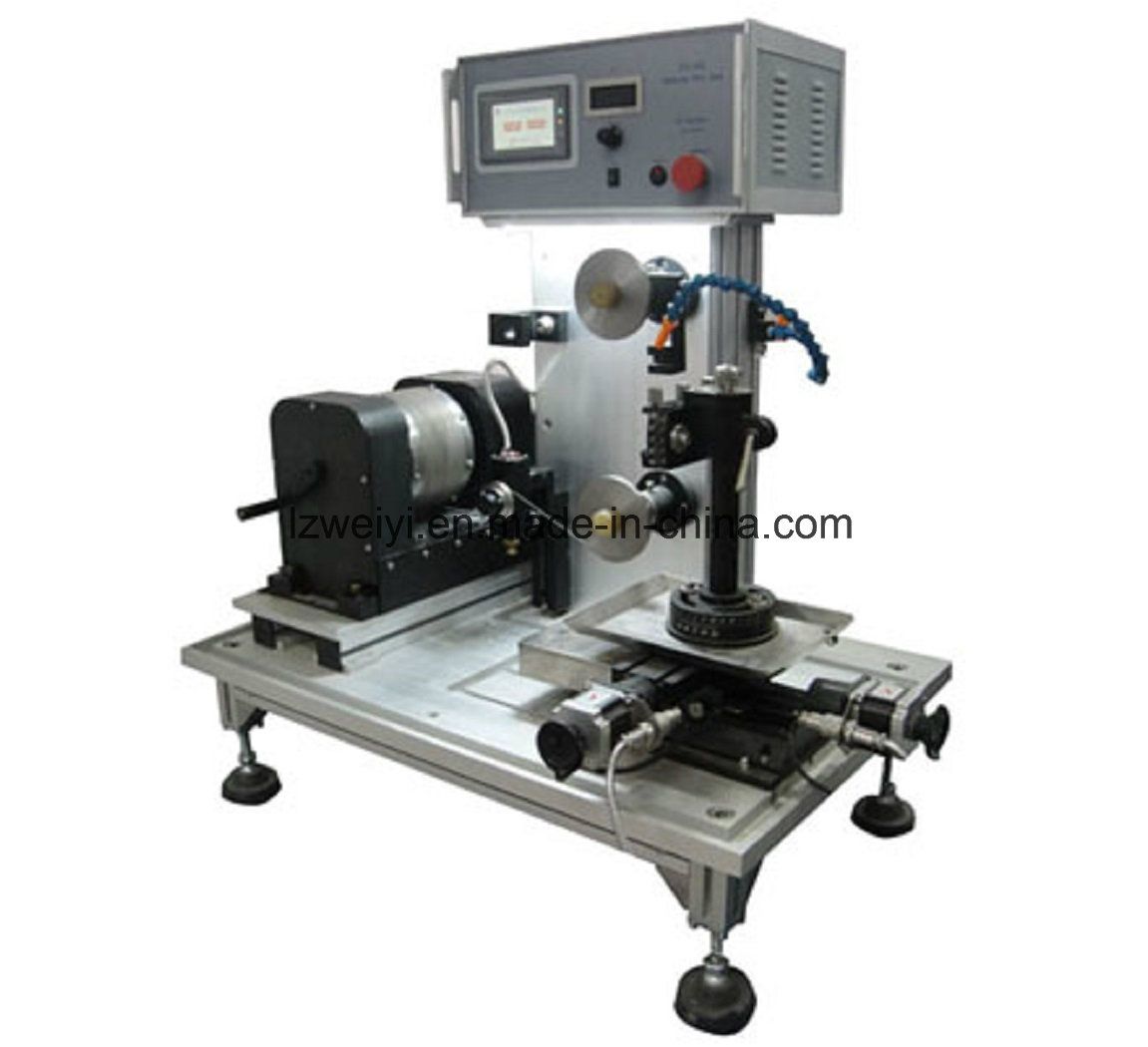

| Model: | STX-402 Desktop Diamond Wire Saw | ||||||||||||||||||||||||
| Brief Introduction: | STX-402 Desktop Diamond Wire Saw is a specialized researching and manufacturing diamond wire cutting machine, desk-top equipment, used for cutting different hardness crystal, ceramic, especially for processing fragile crystal. Max. cutting dimension is 6 inches. | ||||||||||||||||||||||||
| Main Feature: | Cutting all kinds of mentals and nonmetalcomposite materials, different hardness crystal, ceramic, especially for processing fragile crystals. Sample holder can adjust two dimension, can ensure accuracy of the cutting crystal orientation. Can use metal wire and abrasive grout for cutting. Diamond wire cutting, better processing quality. | ||||||||||||||||||||||||
| Technical Parameter: | 1. 30-64m domestic and imported 0.25-0.45 diameter mini diamond wire back and forth cutting, wire length adjustable. 2. Stepper motor feed automatic cut, cutting speed is adjustable and depends on different materials, can improve the cutting quality, increase acceptable life of mini diamond wire. 3. Equip with two dimension adjustable horizontal and vertical rotary angle accuracy:+/-10sample holder, convenient to adjust crystal cutting crystal orientation. 4. Cutting or slicing all kinds of materials, especially for very brittle crystals, such as SrTiO3, ZnO, LiNbO3 and GaAs etc, slicing the success rate can reach as much as 99%. 5. X-axis travel distance:≤110mm Y-axis travel distance:≤110mm 6. Max. cutting diameter and length:80×100mm 7. Diamond wire length:≤80m Diamond wire diameter:≤0.45mm Accuracy:0.01mm | ||||||||||||||||||||||||
| Specification: | Size:810mmx 700mmx910mm Weight:110kg | ||||||||||||||||||||||||
| Standard Accessories: |
| ||||||||||||||||||||||||
| Optional Accessories : | 1. Diamond wire:Φ0.14mm, 0.20mm, 0.30mm, 0.40mm, 0.45mm 2. Cool Lubricant |
| company information | Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building . |
| In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets. |
| Prod Model: | STX-402 |
|---|---|
| Used: | It Is New |
| Customer: | Physical Aspects |
| Lab: | The University |
| Material: | Quality Control |
| Style: | Desk |
