Stone Tool Fabrication Cutting Machine High Quality Bridge Saw Hq700

Stone Tool Fabrication Cutting Machine High Quality Bridge Saw Hq700
Price: US $ 25000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T



Model NO. : HQ700

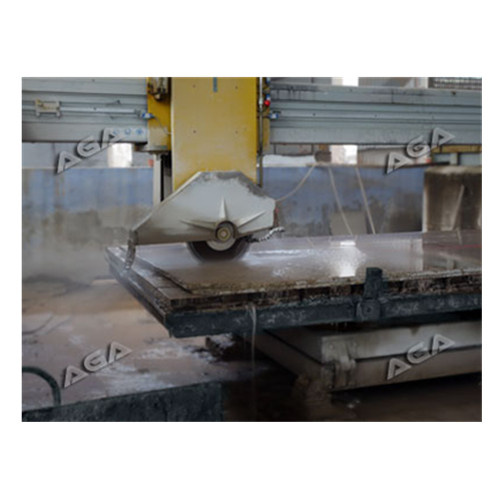

Bridge saw cutting machine for marble granite stones.
It is applicable on cutting and trimming slab, countertop, vanity, steps,etc.
The bridge saw works by industrial computer with programs for automatic cut, and also capable of manual operation. All the operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2m length and 2 m width with laser guide sensor for cutting guide.

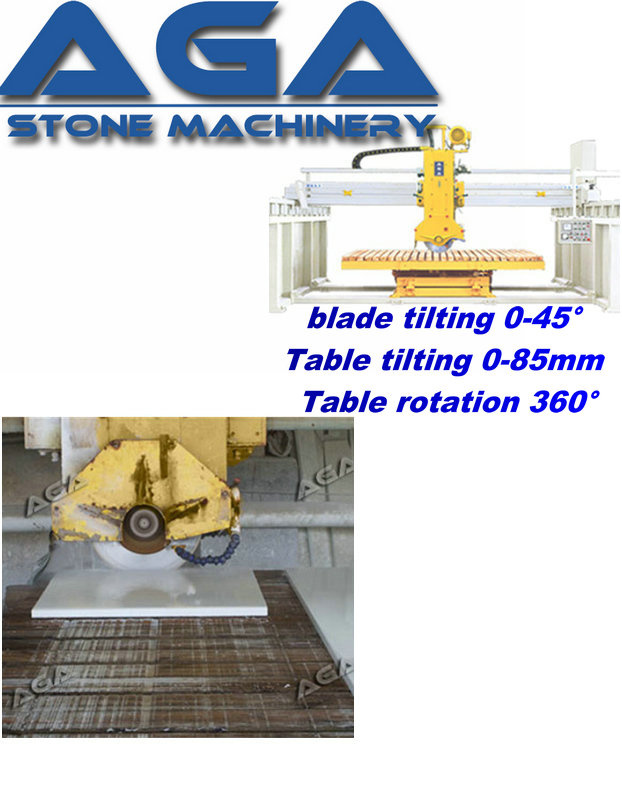

The table tilts up to 85 for easy load of big slabs and also turns 90/360 degree to change the cutting direction.


Feature
1. Long bridge structure for cutting big .
2. Tilting table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X,Y,Z axis ensuring cutting accuracy +/-0.2 mm.
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.

Specification:


Max. cut size
( L x W )
mm3200 x 2000
Max. cut thickmm230
Table size     ( L x W)mm3200 x 2000
Table tilting°0-85
Table rotation°0-360
Blade tilting°0-45
Max. blade sizemmΦ700
Spindle motorKw18.5
Dimention
( Lx W x H )
m6 x 5.8 x 3.5

Applicable stone range of the stone cutting machine
Granite , Marble, Sandstone, Limestone, Quartz and so on.


Functions of the stone cutting machine
1. Cutting slabs intor various sizes of tiles/cut-size;
2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds,
stair, windowsill ... ect.





Our machine

We are professional in making marble granite machine, such as Polishing Machine XMJ1050-16C, ZDMJ-16C,  Bridge Saw XZQQ625A, HQ400/600/700, HQ1200, Block Cutter DQ2200/2500/2800,DS1600,DL2200/25003000, CNC Wire Saw WS2000, Balustrade Cutting Machine DYF600, Column Cutting Maching SYF1800, Edge Polishing Machine MB3000, MB3000L, Splitting Machine P90/95, P240, Pressing Machine P72/ 80, P74, Stone Crusher PS22... ect, please visit our website for more machine pictures: www.againdustry.com .

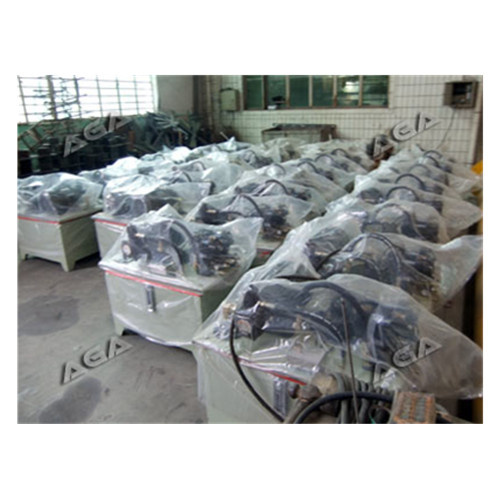

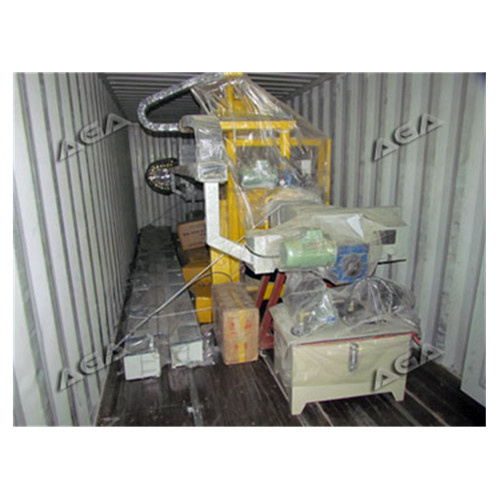

Packing





Our guarantee & after sale service

AGA insists on equipments high quality and advanced technology to assist customers in their pursuit of a true competitive advance.

1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) When receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ

1. How to pay to you?
T/T is advance we accept 30% deposit, 70% before shipment
2. How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client's specific requirements, it would be 10 days longer.
3. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4. How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5. What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as Possible for container loading.


About us

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equiments for other contruction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, Mid East, Egypt, India, etc.

* Our team is always available to answer to your questions and requests about buying stone and concrete splitting machinery.
* Before and after the purchase, AGA affers precision, power and personalized support, no matter where in the world the requirement is found.
* Please feel free to call or email us for any questions you may have.

Lillian Leung
What a.pp/m.obi.le: +86 18259462283


For more details information, please visit our website: www.againdustry.com or www.marblegranitemachine.com , will offer the machine video for your reference if you need, thanks !





Prod Model: HQ700
Max. Cut Size (Lxw): 3200X2000 mm
Max. Cut Thick: 230 mm
Table Tilting: 0-85'
Table Rotation: 0-360'
Blade Tilting: 0-45'
Max. Blade Size: 700mm
Spindle Motor: 18.5 Kw
Table Size ( L X W ): 3200 X 200 mm
Type: CNC Cutting Machine
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.

AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
