Stone Crusher Vibrating High Carbon Steel Double Crimp Screen Wire Mesh
| Price: |
US $ 2-20/Square Meter |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T |

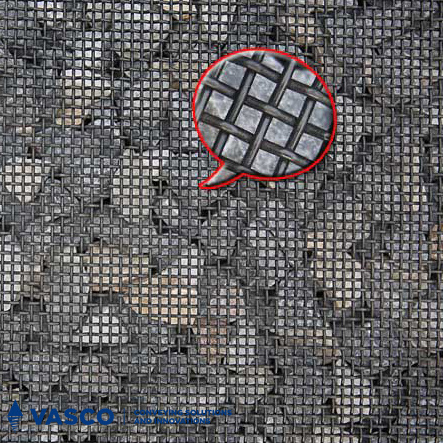

Double Crimp ScreenDouble Crimp Screen has the wires pre-undulated with strict steps in order to obtain regularity in the mesh.
Due to its high percentage of screening surface, they are used to classify, with great precision and a high performance, materials that do not have a tendency to block. The high resistance to traction of the steel used allows obtaining a great resistance to vibration and a long service time. Double Crimp Screens are produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface Treatment: galvanized or painted.
Mesh Size: 1mm - 100mm.
Hole Type: square, rectangular and long slot.Opening Size: 2.0 - 80.0 mm
Wire Diameter: 0.8 - 8 mm
Supplied Dimensions: as required by customer, in rolls or formats
Installation Instructions:
The screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame. Features:Varied lengths
Require less maintenance
Sturdy construction
Application:
The Double Crimp Screen can be used in the following fields as:
* Safety grids (e.g. car industry, mechanical engineering, building industry)
* Filling elements for gates and fences in buildings and gardens
* Booth construction
* Plant breeding
* Pigeon barriers
* Noise protection

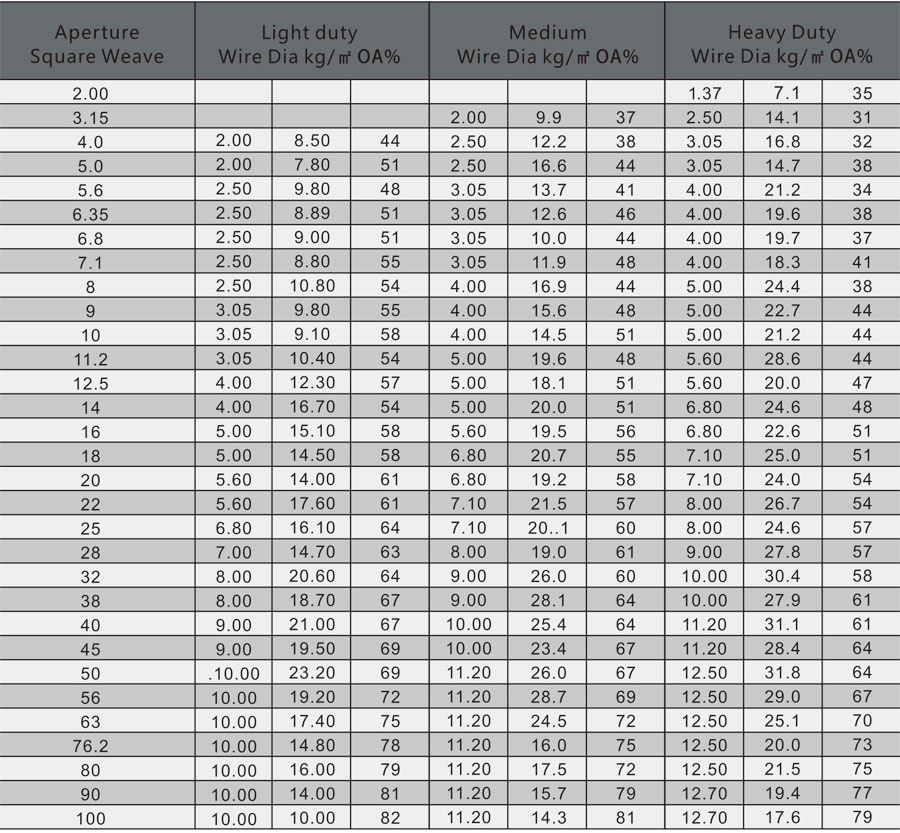

Specification:
Carbon Steel Parameter:
| Opening Size: |
2.0 ~80.0 mm |
| Wire Diameter: |
0.8 ~ 8 mm |
| Supplied Dimensions: |
as Required by Customer, in Rolls or Formats |
| Hole Type: |
Square, Rectangular and Long Slot |
| Mesh Size: |
1mm ~100mm |
| Surface Treatment: |
Galvanized or Painted |
| Material: |
Black Wire, Spring Steel Wire, Manganese Steel Wir |
