Steel Rebar Coupling Manufactured by CNC Machine

Steel Rebar Coupling Manufactured by CNC Machine
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Changzhou Jianlian Reinforcing Bar Conjunction Co.,LtdAdd: hengshanqiao town, Wujin district, Changzhou City, Jiangsu Province, zip:213119, China

: +86 519 8861 2996 F:+86 519 8861 0996 M&Wsp:+86 18261196612

Advantage of Steel Rebar Coupling:
1,Wide working range: adaptable for diameter 12mm-40mm same diameter, different diameter,
bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 Grade 60 and grade 75 or ASTM A706 standard
2,High strength: stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar).It can satisfy the requirements stipulated in the Chinese standard JGJ107-2010 and meet ACI 318 TYPE 1 and ACI 318 TYPE 2.
3,High efficiency: upset forging and threading one rebar end only needs no more than one minute, and handy operation and quick link.
4,Environmental protection and economy profit: no environment pollution, can work all day, not affected by weather, economize energy source and bar material.
5.No reduction of the bar cross section area.
6.Allows full ductile elongation of bars.
7.Easy installation, no torque wrench required.
8.One standard coupler for all splicing requirements (Standard/Position).
9.Manufactured under strict quality assurance plan, ISO 9001 and ASME certified.
10.Full traceability of material origin and production batch.
11.Solves bar congestion problems.
12.No staggering of spliced bars required.

2. Application:
Easy connection by bar rotation until full thread engagement.
Parallel thread: No risk of thread mis-match. No risk of cross-threading.

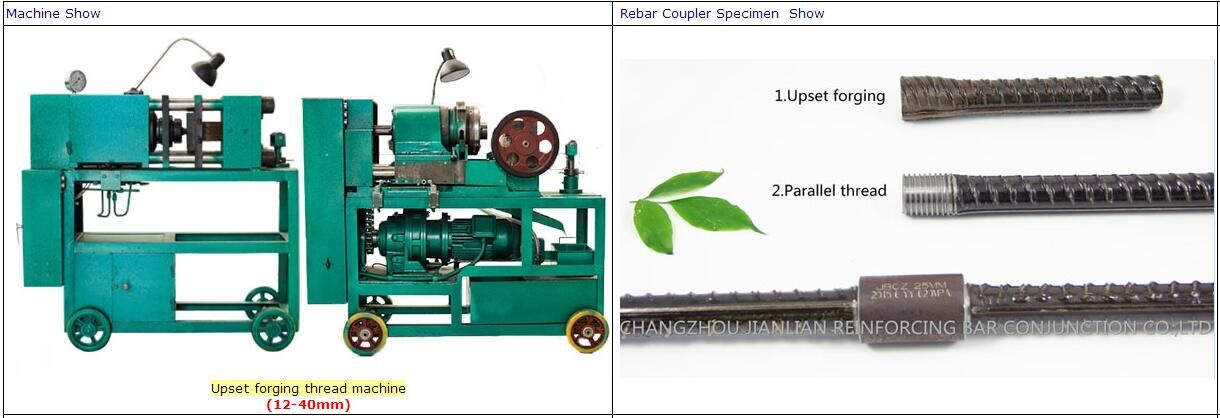

3. Products photos:
1. Rebar forging machine: make the rebar end bigger
2. Rebar threading machine: cut threaded on the bigged rebar end

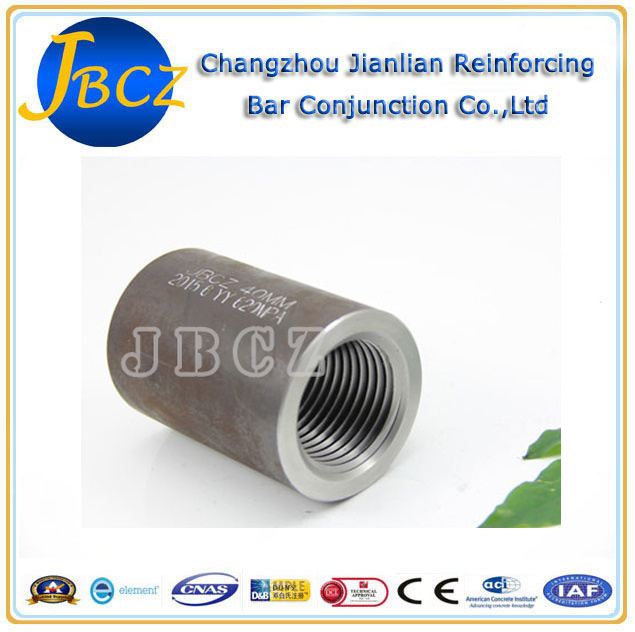

3. Use
Steel Rebar Coupling to link steel bar together.
Fortec Type Rebar Cage Used Adding Length Parallel Threaded Coupler

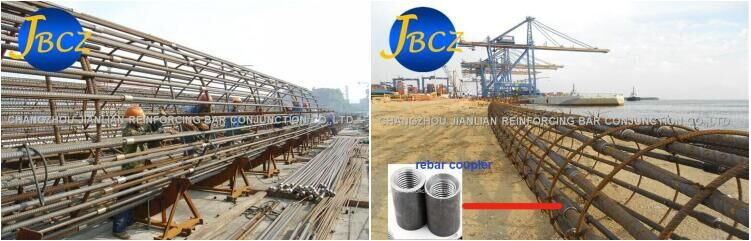

4. Product Application show:
Steel Rebar Coupling means use rebar threading machine process thread on rebar end
for rebar connection.

Fortec Type Rebar Cage Used Adding Length Parallel Threaded Coupler

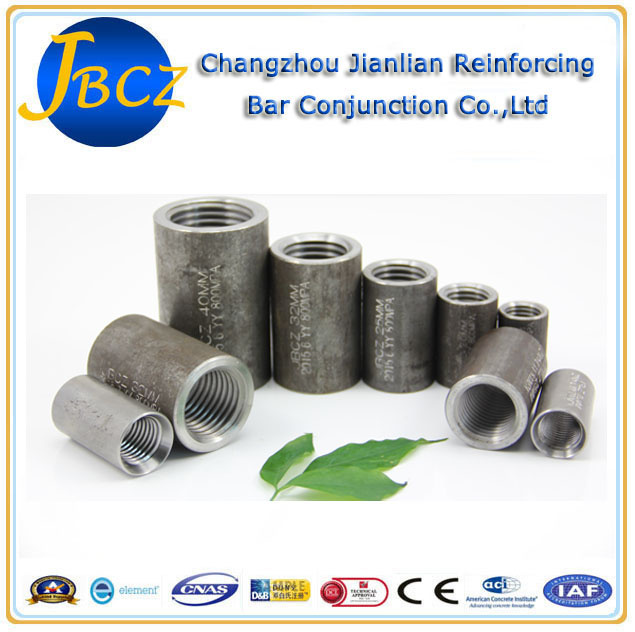

5. Standard parameter of Steel Rebar Coupling we can also produce rebar coupler according to your requirement!
The Parameter For Steel Rebar Coupling (MM)
Steel bar Diameter(MM)1214161820222528323640
Out Dia.of Coupler(MM)2022262932364044.5505662
Inner Dia.of Coupler(MM) 11.913.917.419.420.923.926.329.331.834.840.3
Length of Coupler(MM)3034404448526066728090
Size of Thread(MM)M14
*2
M16
*2
M20
*2.5
M22
*2.5
M24
*3
M27
*3
M30
*3.5
M33
*3.5
M36
*4.0
M39
*4.0
M45
*4.0

6. JBCZ company other rebar coupler products:
As China first and biggest manufacturer factory, we JBCZ also have other more REBAR splice machine and rebar coupler, such as:
6.1 Dextra type rebar coupler-Upset forging parallel threaded coupler
6.2 Rib Peeling roll stamping rebar coupler and rebar threading machine
6.3 Cold extrusion press threadless rebar coupler and rebar pressing machine
6.4 Taper threading machine and taper threaded coupler

7. More information about China first manufacturer of rebar coupler--JBCZ

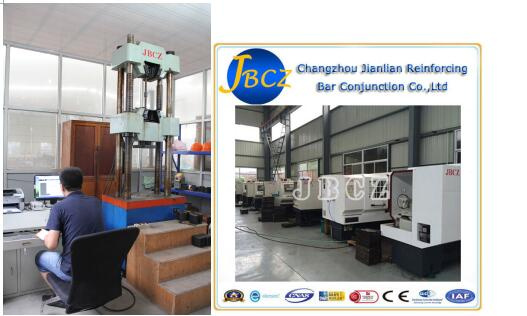

Rebar coupler yield strength and tensile strengt test Lab and CNC rebar coupler workshops!

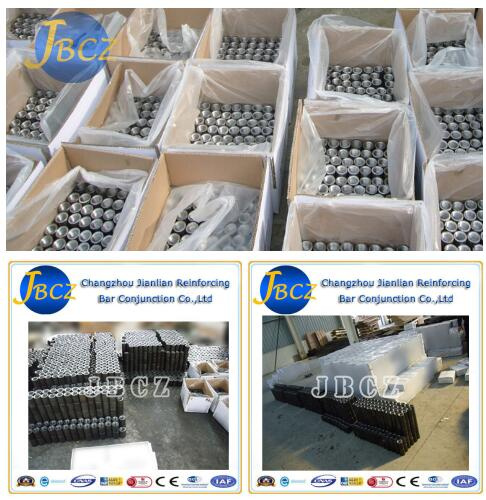

8.Package:
Couplers are packed by white cartons , machine are packed by wooden case.

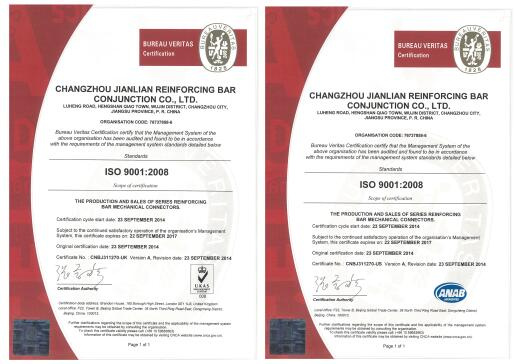

9.Certificate

10. FQA
Q1: Are you trading company or manufacturer ?

A: We are factory. We are the FIRST manufacturer of rebar coupler since 1987.

Q2: How long is your delivery time?

A: Generally it is within 5-10 days if the goods are in stock. or it is within  15-20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge , clients do not need to pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment 100% in advance.  Can communicate.

B:All the payment go through Aliababa Onetouch or Alibaba assurance payment


Q5: How can I know the quality of JBCZ rebar coupler?
A: We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.

Q6: Where is your company?
A:Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!

If you have any problems, please send message to me, I will reply you within 1 working day.
Contact me for FREE SAMPLES now!



Prod Model: 16-40mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Gd-150;Gzl-45
Colour: Red, White, Green
Function: Process Rebar Dia. From12~40mm
Tensile Strength: 1.08-1.35 Times of Rebar
Certificate: CE and ISO
Gzl-45: Patent No. Zl97247900.7
Gd-150: Patent No. Zl97243207.8
Port: Shanghai Port by Sea
Thread Type: Parallel Thread
Quality: Wonderful
Structure: Control
Flexible Or Rigid: Rigid
Material: Carbon Steel
Standard: Standard
Connection: Mechanical Connection
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:

1. Upset forging parallel thread machine and coupler

2. Rib peeling roll stamping machine and coupler

3. Cold extrusion press machine and coupler

4. Taper thread machine and coupler

The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.

Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.

With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.

Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.

We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
