| Price: | US $ 1-38000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |

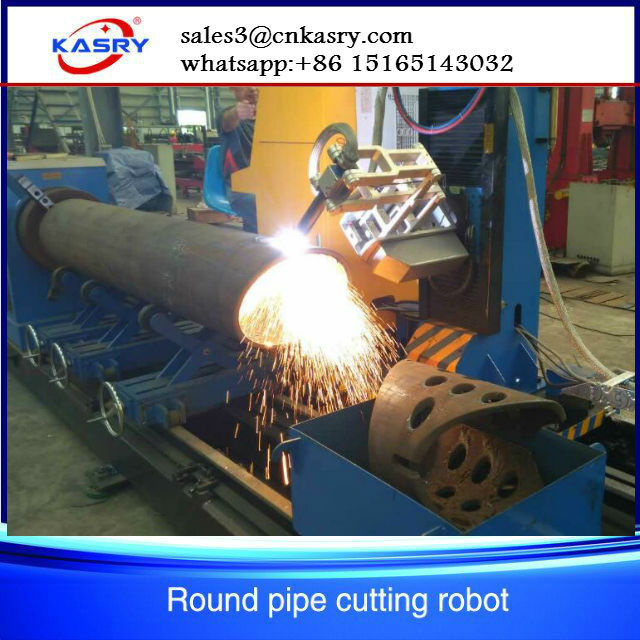

Steel pipe cnc plasma cutting beveling machine/Pipe bevel cutter
KR-XY5
5axis/8 axis Round pipe cutting and beveling machine
https://www.youtube.com/edit?o=U&video_id=QYgWlwlg9rM
5 axis dust removal system cnc pipe profile cutting machine
https://www.youtube.com/edit?o=U&video_id=qwuMfj2JCy0
Kasry round pipe cutting and beveling machine KRXY-5, wildely used in steel structure construction industries, oil&gas pipeling industries, offshore buildings,marine engineering, ship building,vessel&boiller industries,etc.
♣ 1. Easy to operate,simple programming.good compatibility.
♣ 2. Support TEKLA,can generate whole project material budget chart,avoid waste.
♣ 3.Auto cad generate G code, can realize batch nesting. Pipe componets batch exchange,save time ,save labor,save cost.
♣ 4.Optimization nesting, support twist angle nesting, and remain materials can second nesting,save raw materials 1%-2%.
♣ 5.Huge photo graphics data base.
♣ 6.3D modeling, can realize obseving cutting track in real time, and continuous cutting.
♣ 7.Once you buy Kasry pipe machine, Kasry pipe software promised upgrate life time for free.
Technique Parameters
No. | Pipe plasma cutting machine | Parameters |
1 | Cutting diameter | 1. Φ= round : 50mm~630mm , 2. Effective cutting length 12m 3. or as required |
2 | Cutting method
| Plasma / flame |
3 | Plasma power brand | Hypertherm 105a/125a/200a/260a |
5 | Plasma cutting wall thickness (quality cutting thickness) | According to plasma power source |
6 | Flame cutting wall thickness | 1.Vertical cutting 6-60mm 2.Beveling cutting 6-40mm |
7 | Plasma cutting thickness | HPR 105A 1.vertial cutting 1-20mm 2.beveling cutting 6-14mm 3.cutting thickness depand on the plasma power |
8 | Plasma cutting thickness | ≤25 |
9 | Requirements of the workpiece ovality | ≤1% |
10 | Cutting speed | 10~2000mm/min |
11 | Move speed | 10~6000 mm/min |
12 | Axial swing angle of cutting torch | α=±45° |
13 | For maximum weight cut tube | 5000Kg to 7500kg |
♣ pipe plasma cutting machine, Kasry system software promised can be upgrade free for life long time.
Machine Parts
CNC pipe profile cutting machine and detail machine parts :
cutting and beveling torch,
Taiwan Advantech IPC with KASRY auto pipe apply
3 Jaw rotary chuck
| Prod Model: | KR-XY5 |
|---|---|
| Cutting Method: | Flame Plasma |
| Cutting Shapes: | Round Pipes |
| Cutting Diameter: | 50-630mm |
| Cutting Length: | 12m |
| Certificates: | Ce,ISO,SGS |
| Industries: | Steel Structure Fabrication / Pipeline Engineering |
