Standard Short Pitch Precision Roller Chain

Standard Short Pitch Precision Roller Chain
Price: US $ 0.5/Foot
Min Order: 50/Foot
Pay Type: L/C,T/T,D/P,Western Union,Paypal
SMCC roller chain is one of the most widely used and welcome products in the market. Its continuous innovative development is suitable to be the solutions for many conditions, standard roller chains, motorcycle driving chain, O-ring motorcycle chain, high strength roller chain, conveyor chains, agricultural driving chain, galvanized chain, nickel-plated chain, lubrication-free chain and oilfield chain etc.

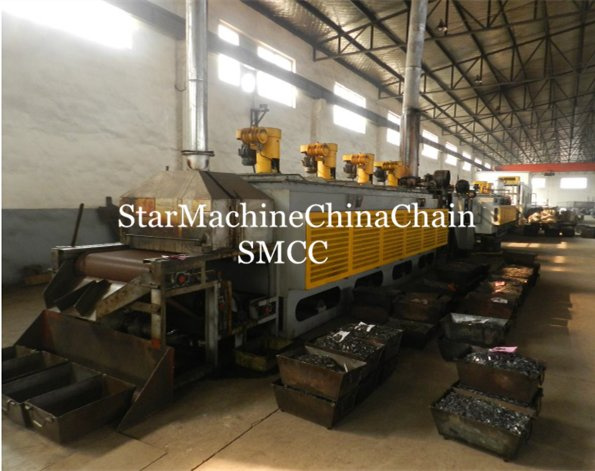

Our SMCC chain was produced by machinery processing from raw materials to finished products and a full set of quality testing equipment. Mechanical processing equipment include grinding machines, high speed punching machines, milling machines, high speed automatic rolling and assembling machine. Heat treatment was processed by continuous mesh belt conveyor furnace, mesh belt conveyor annealing furnace, advanced central control system of heat treatment, rotary furnace for chain component heat treatment, which ensure the stability and consistency of the key function of chain components.
We are the best suppliers of Chinese largest palletizing robot enterprises. These items are durable quality with affordable prices, replace of Japan chains, Taiwan chains exported to Europe, America, Asia and other countries and regions.


Product NameShort-pitch precision roller and bush chains
Model04C, 06C, 085, 08A, 10A, 12A, 16A, 20A, 24A, 28A, 32A, 36A, 40A, 48A      25, 35, 41, 40, 50~240
06B, 08B, 10B, 12B, 16B, 20B, 24B, 28B, 32B, 40B, 48B, 56B, 64B, 72B Simplex, Duplex, Triplex,
Quadruplex
Materialcarbon steel, alloy steel, stainless steel, nylon
Design styleCustomize and standard
Quality approvedISO90001, SGS
Surface Treatmentrust-preventative oil
Shipping Typesea & air
Packagingcarton, wooden case, pallet

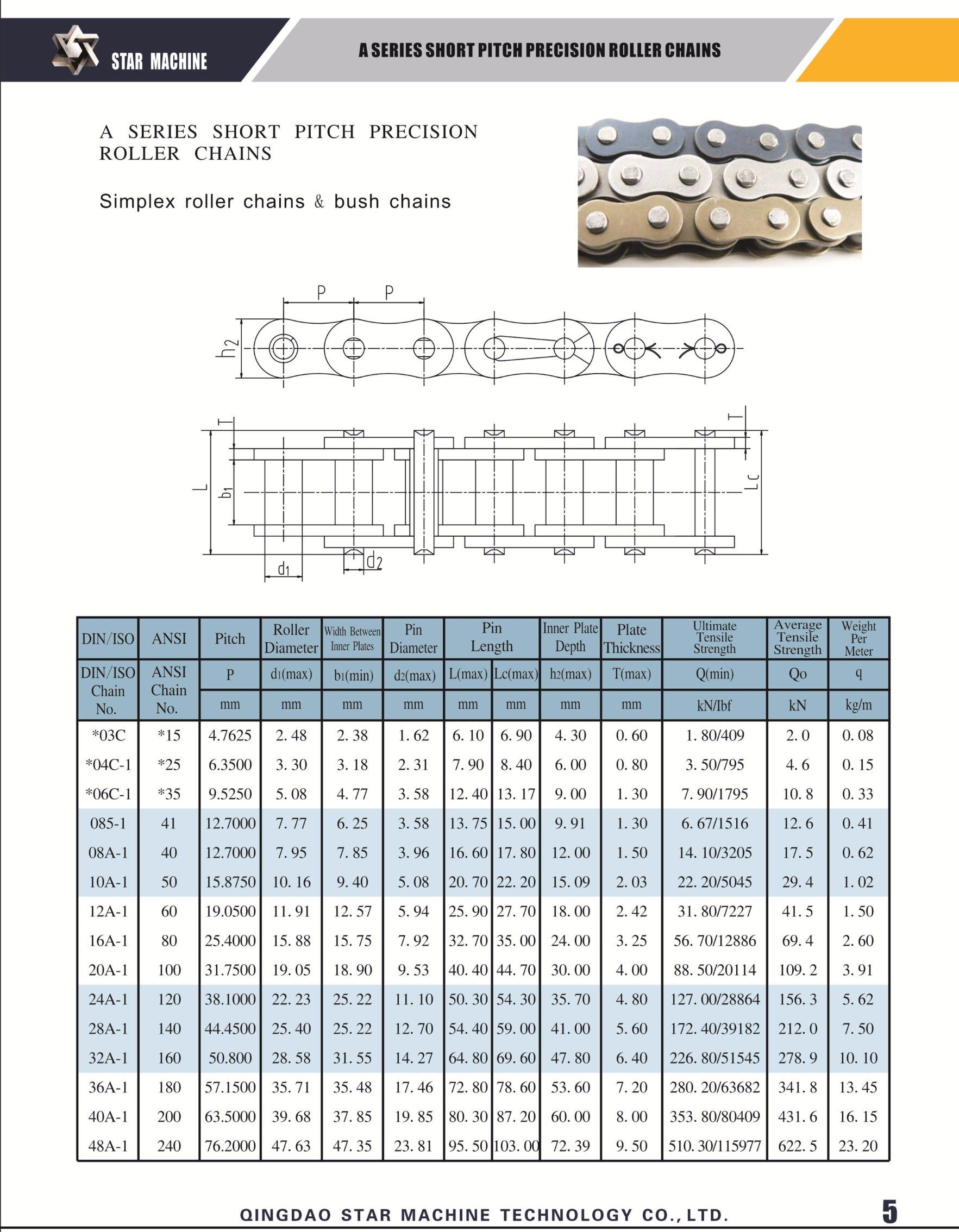

A Series Short Pitch Precision Roller Chain

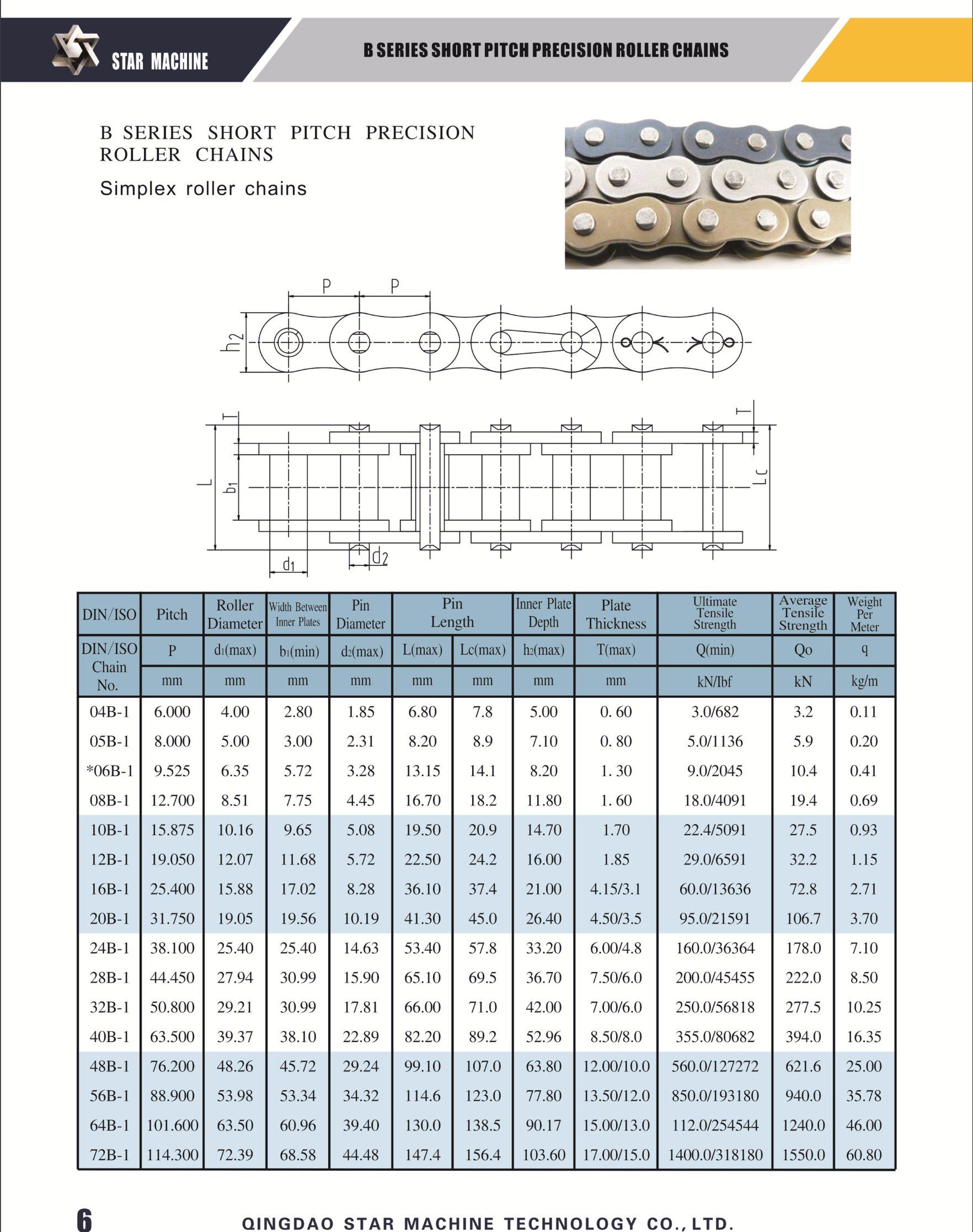

B Series Short Pitch Precision Roller Chain

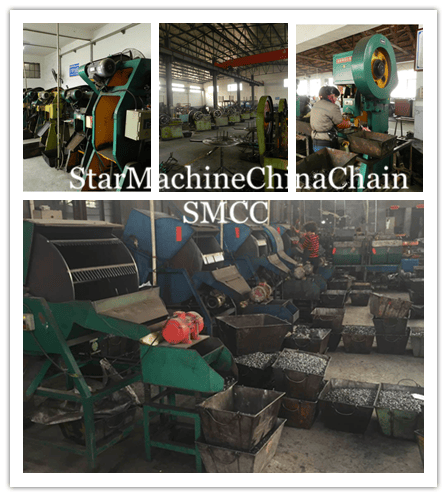

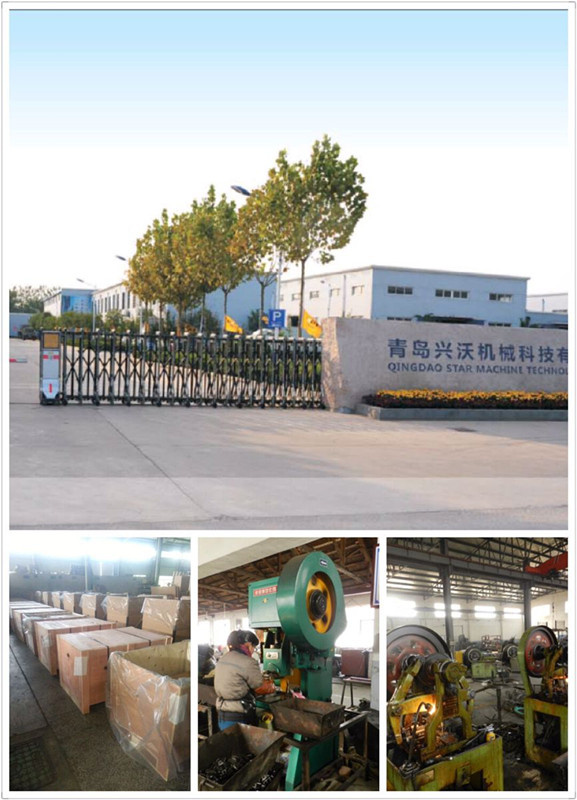

Workshop Show




Package & Delivery


Let us work together to make win-win profits!
Prod Model: 04C, 06C, 085, 08A~48A; 06B, 08B~72B
Pitch Range: 6.35mm-114.3mm
Colors: Nature, Black, Blue, Znic Plating (Galvanization)
Average Tensile Strength: 17.5kn-1550kn
Usage: Transmission Chain, Conveyor Chain, Driving Chain
Certification: ISO90001, SGS
Packaging: Carton Cases, Gunny Bags, Pallet or Wooden Box
Special Treatment: Heat Treatment, Polishing and So on
Application: Food and Baverage Industry, Machinery and So on
Standard: ANSI/DIN/ISO/BS
Material: 40mn Metal Alloy Steel, Stainless Steel 304, Nylon
Surface Treatment: Shot Peening
Chain Size: 15, 25, 35-240, 04b, 05b, 06b, 08b-72b
Qingdao Star Machine Technology Co., Ltd. Is a large enterprise groups engaged in researching, production, marketing and technical services, having three large research and production bases and one large marketing center for transmission parts, bearings, chains, sprockets, tractor driving axles and hydraulic steering units. Covering 80, 000 square meters, now we have 816 employees including 167 senior professional technicians and a global network of sales and service system. We mainly exported to Europe, South America, Southeast Asia, Russia, etc. Annual export volume of about 3000000 US dollars, And maintain 300% growth in sales revenue for the last 3 years. 2017 is expected to achieve sales revenue of $10 million, an increase of 300%.

"You provide a request, We'll give you a perfect product". We uphold the business philosophy "integrity, efficiency, collaboration, innovation", quality first, advanced technology, precision production, integrity management, efficient service, to support our customers with the top quality products and super sophisticated technology.
