| Price: | US $ 10-25/Square Meter |
|---|---|
| Min Order: | 10/Square Meter |
| Pay Type: | L/C,T/T,Western Union |

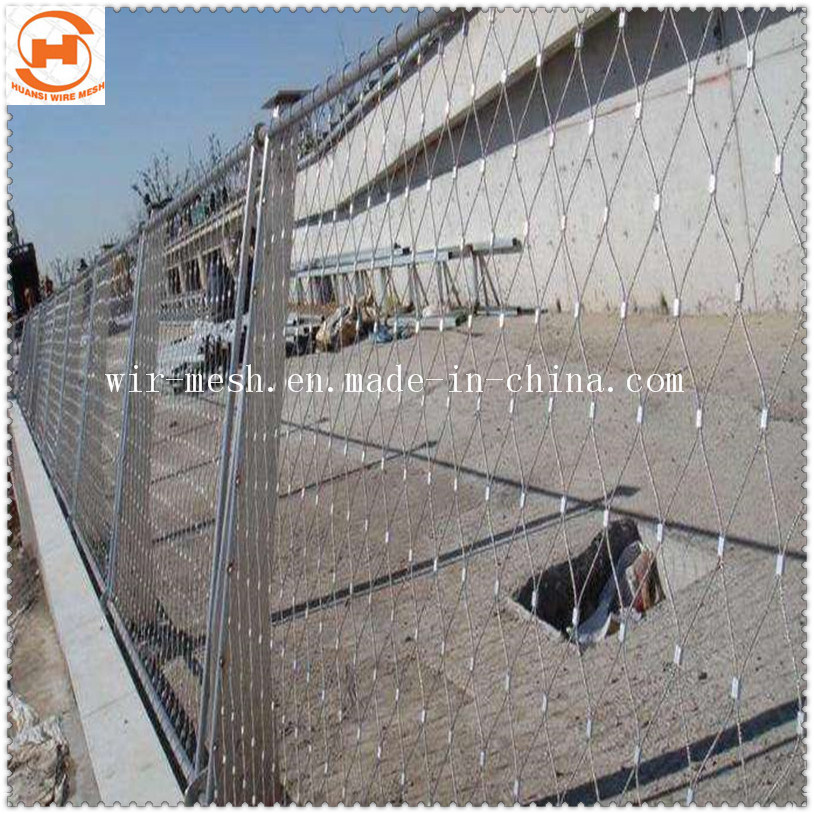

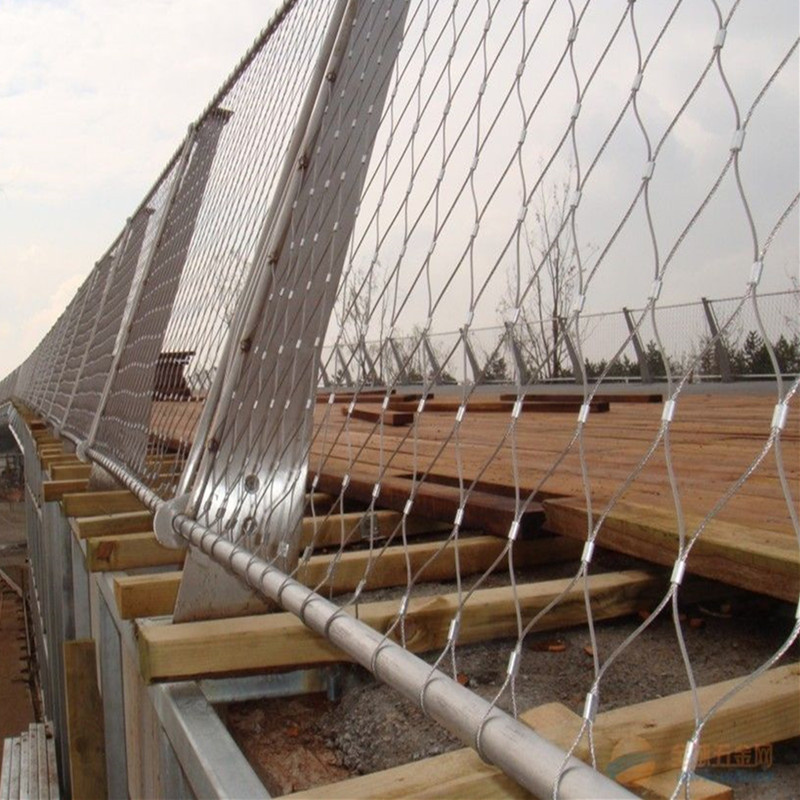

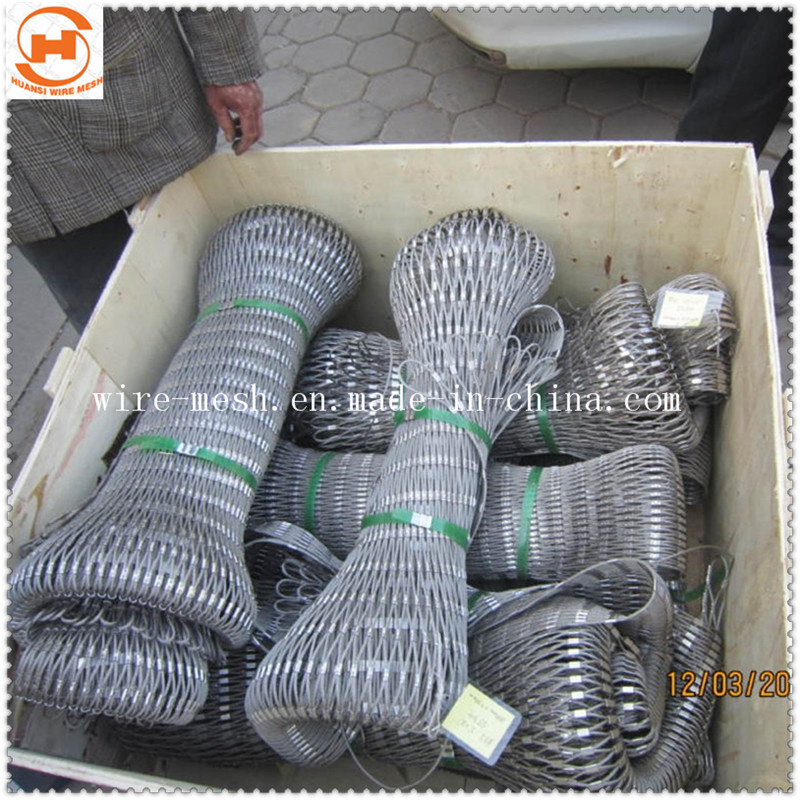

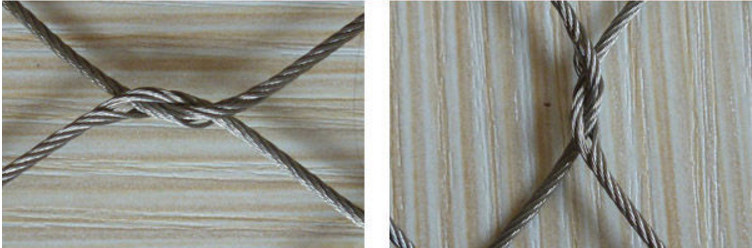

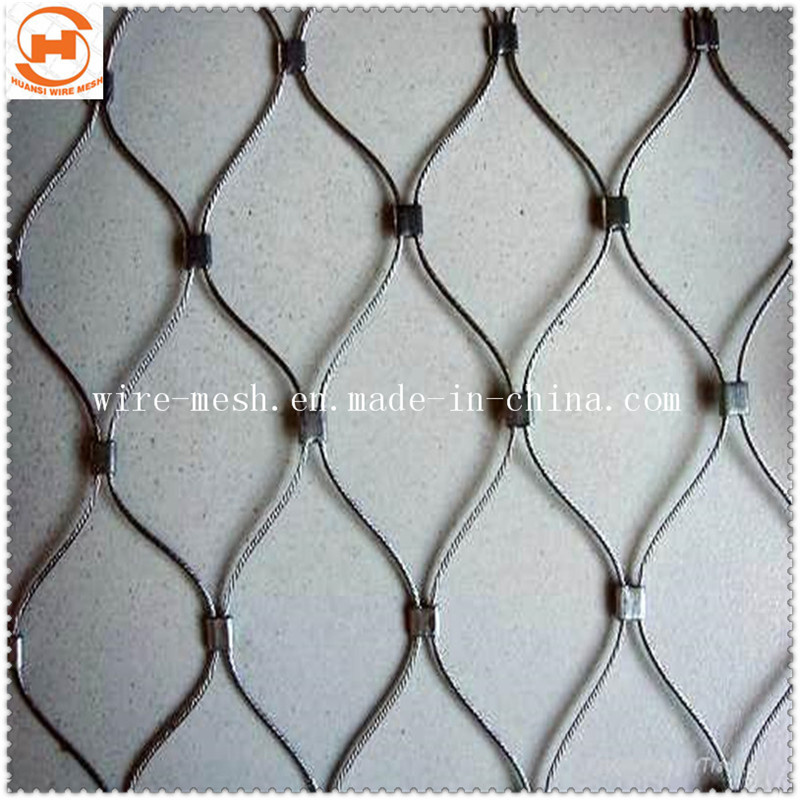

Stainless steel wire rope mesh:
Material :304, 304L, 316, 316L,
Structure: 7x7 rope, 7x19 rope, etc.
Rope diameter : 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm
Aperture :20 mm x 20 mm, 30 mm x 30 mm, 40 mm x 40 mm, 50 mm x 50 mm, 60 mm x 60 mm,
76 mm x 76 mm, 90 mm x 90 mm, 102 mm x 102 mm, 120 mm x 120,etc
| Type | Breaking load ( KN ) | Wire Dia.(MM) | Mesh Opening (MM) |
| 7 X 19 | 7.38 | 3.2 | 120x120,102x102, 90x90,76x76,51x51 |
| 7 x 7 | 4.18 | 2.4 | 102x102, 90x90,76x76,51x51 |
| 7 x 7 | 3.17 | 2 | 76x76,60x60,51x51,38x38 |
| 7 x 7 | 2.17 | 1.6 | 76x76,51x51,38x38, 30x30,25.4x25.4 |
| 7 x 7 | 1.22 | 1.2 | 51x51, 38x38,30x30 25.4x25.4,20x20 |
| Prod Model: | Rope Mesh |
|---|---|
| Wire Dia.: | 1.2mm-4.5mm |
| Material: | SUS304 |
| Hole Shape: | Diamond |
| Application: | Cages |
| Type: | Stainless Steel Plain Wire Mesh |
| Material Type: | Stainless Steel Wire |
| Weave Technique: | Plain Weave |
| Wire Mesh Width: | 1m |
| Technique: | Woven |
| Nickels: | 8% |
| Certification: | ISO9001 |
