Stainless Steel Shackles for Rigging Hardware
| Price: |
US $ 0.2-80/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
Stainless Steel Shackle for rigging hardware.
Usage:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings

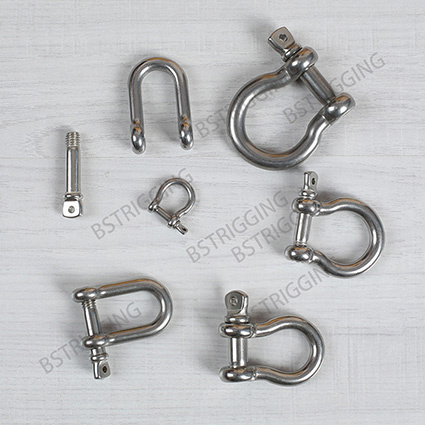

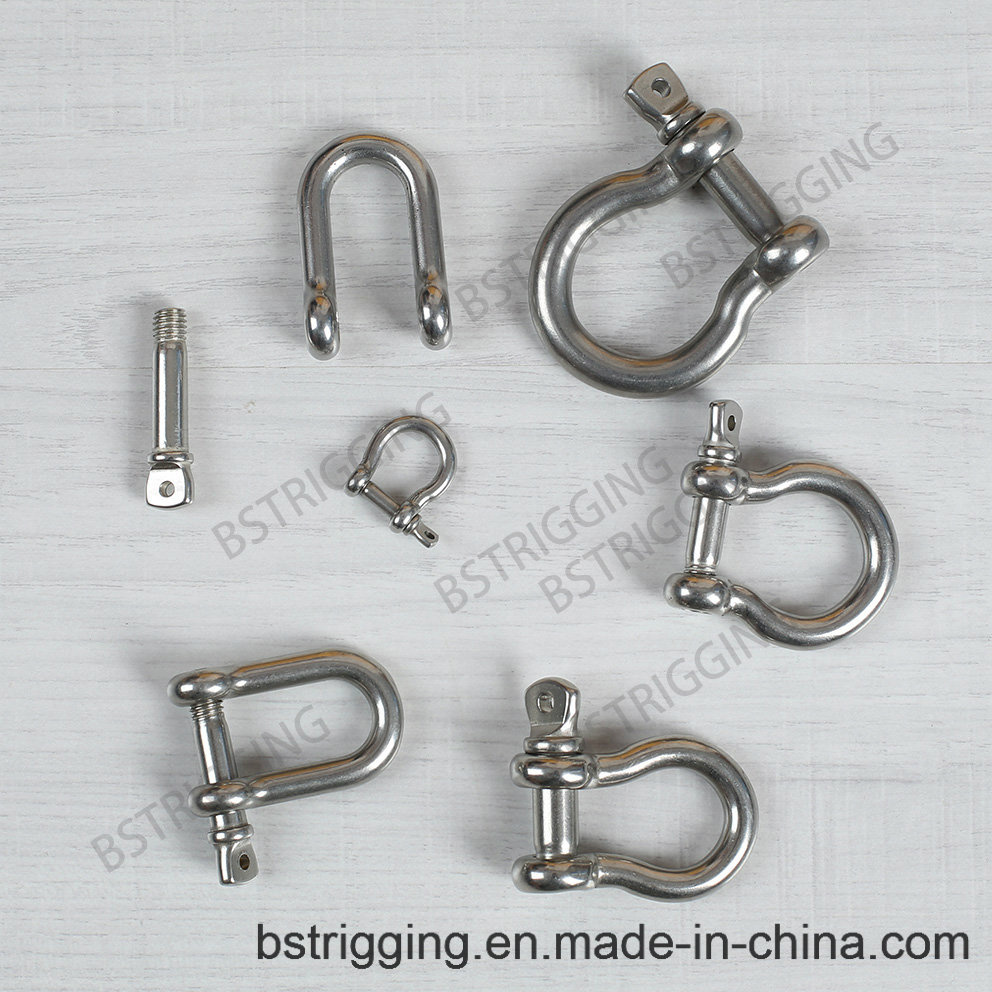

We can supply varies types shackles : JIS D shackle , European D shackle , and Bow shackle etc .
Material: Stainless steel 304/316
Finish: High polished
Size:Different size available(as below)
Delivery time:10-20days according to your order quantity

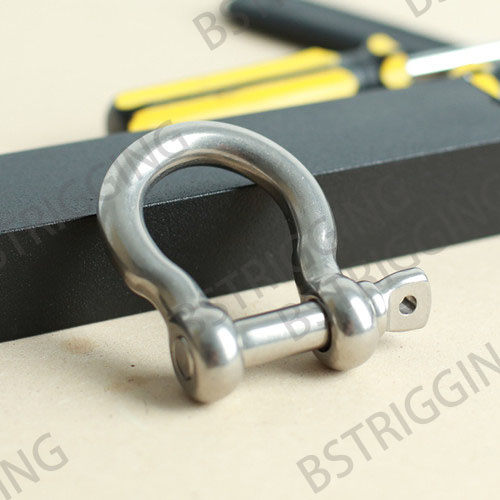

Bow shackle:
| SIZE | M(mm) | H(mm) | W(mm) | C(mm) | F(mm) | weight(G) |
| 4 | 4 | 16 | 8 | 4 | 14 | 7.5 |
| 5 | 5 | 20 | 10 | 5 | 18 | 14.5 |
| 6 | 6 | 24 | 12 | 6 | 21 | 25 |
| 8 | 8 | 32 | 16 | 8 | 28 | 61 |
| 10 | 10 | 40 | 20 | 10 | 35 | 120 |
| 12 | 12 | 48 | 24 | 12 | 42 | 208 |
| 14 | 14 | 56 | 28 | 14 | 49 | 324 |
| 16 | 16 | 64 | 32 | 16 | 56 | 485 |
| 18 | 18 | 72 | 36 | 18 | 63 | 700 |
| 20 | 20 | 80 | 40 | 20 | 70 | 971 |
| 22 | 22 | 88 | 44 | 22 | 77 | 1270 |
| 25 | 24 | 100 | 50 | 25 | 88 | 1705 |
| 28 | 28 | 112 | 56 | 28 | 98 | 2660 |
| 32 | 32 | 128 | 64 | 32 | 112 | 3800 |
| 38 | 38 | 152 | 76 | 38 | 133 | 6737 |

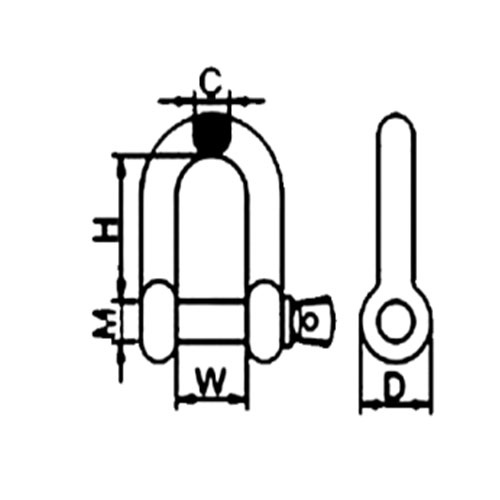

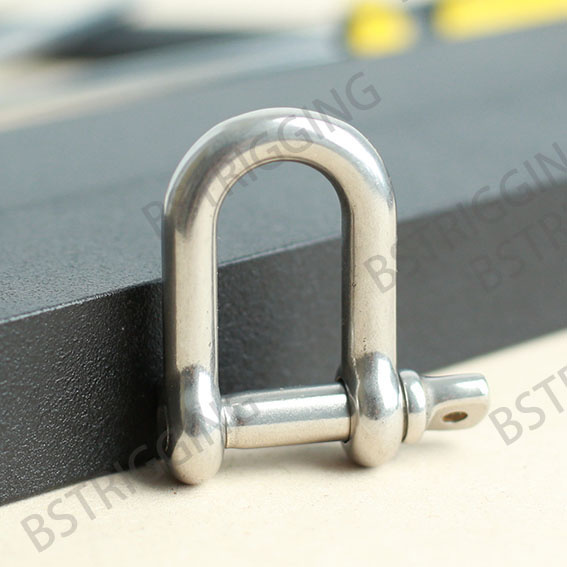

D Shackle JIS type :
| SIZE | M(mm) | H(mm) | W(mm) | C(mm) | weight(G) |
| 4 | 4 | 14 | 8 | 4 | 7.5 |
| 5 | 5 | 18 | 10 | 5 | 13 |
| 6 | 6 | 21 | 12 | 6 | 23 |
| 8 | 8 | 28 | 16 | 8 | 54 |
| 10 | 10 | 35 | 20 | 10 | 108 |
| 12 | 12 | 42 | 24 | 12 | 185 |
| 14 | 14 | 49 | 28 | 14 | 288 |
| 16 | 16 | 56 | 32 | 16 | 433 |
| 18 | 18 | 63 | 36 | 18 | 625 |
| 20 | 20 | 70 | 40 | 20 | 850 |
| 22 | 22 | 77 | 44 | 22 | 1140 |
| 25 | 24 | 87 | 50 | 25 | 1610 |
| 28 | 28 | 98 | 56 | 28 | 2360 |
| 32 | 32 | 112 | 64 | 32 | 3400 |
| 38 | 38 | 133 | 76 | 38 | 6100 |
| 50 | 50 | 175 | 100 | 50 | 13320 |
D shackle European type: | SIZE | M(mm) | H(mm) | W(mm) | C(mm) | weight(G) |
| 4 | 4 | 16 | 8 | 4 | 7.5 |
| 5 | 5 | 20 | 10 | 5 | 14 |
| 6 | 6 | 24 | 12 | 6 | 24 |
| 8 | 8 | 32 | 16 | 8 | 57 |
| 10 | 10 | 40 | 20 | 10 | 114 |
| 12 | 12 | 48 | 24 | 12 | 195 |
| 14 | 14 | 56 | 28 | 14 | 304 |
| 16 | 16 | 64 | 32 | 16 | 455 |
| 18 | 18 | 72 | 36 | 18 | 658 |
| 20 | 20 | 80 | 40 | 20 | 893 |
| 22 | 22 | 88 | 44 | 22 | 1200 |
| 25 | 24 | 100 | 50 | 25 | 1700 |
| 28 | 28 | 112 | 56 | 28 | 2485 |
| 32 | 32 | 128 | 64 | 32 | 3590 |
| 38 | 38 | 152 | 76 | 38 | 6400 |
| 50 | 50 | 200 | 100 | 50 | 14020 |
Packing:
FAQ1. What products do you supply?
Our Products range : Shackles, Turnbuckles, Snap hooks ,Wire rope clips,Swivel, Rigging screw, Lifting eye bolt, Lifting eye nut , Wing nut , Spring snap hook , Quick link , Pad eye, Round ring, D ring and Marine hardware, also any kinds of drill chuck for power drill .
2. Does a trial order acceptable?
Yes, we accepte any trial order.
3. What is your MOQ?
Normally MOQ is 100pcs/item, but different items with different requirement, please contact with us .
4. What is your payment terms?
T/T will be better , L/C also OK , please contact with us for further communication.
5. How long is your delivery time?
Around 10-30days, according to your order quantity.
6. Do you offer samples?
For normal products, we can provide 1-2 pieces free samples. But the express cost would be on your account.
7. Can you help customer to design their own products?
Yes, if you need , we can help you to design the products as your requirement .
8. How do you control the quality?
We will do the strict inspect for the material and the finished products , to make sure to supply the best quanlity products for you .
Any questions , please let me know .
| Material: |
Stainless Steel |
| Shape: |
Bow Shape,D Shape |
| Color: |
Ss Color |
We Weihai BST Intl' Trade Co., Ltd established in 2011, We can supply various hardware products and electric tools accessories.
Our factory lies in Wudi City, Shandong Province, which has been known as the Fort of Qi Yan and Hinge of Ji Lu since long before. As it is founded in the center of Wudi where the geographical position and transportion are all very convenient, so that we can deliver the goods in time.
As a manufacturer specializing in stainless steel rigging, our products mainly include five fields, i. e. Hardwares, riggings, construction & decoration accessories, pipe fittings. These stainless steel products are mainly contains:
Shackles, wire rope clips, turnbuckles, snap hooks, swivels, links, connectors, eye nuts, eye bolts and other electric tools accessories include all sizes Keyless Drill Chuck, and Key-type Drill Chuck. With the good quality. They are mainly exported to North America, Middle East, Southeast Asia, West & East Europe and other areas.
Due to the advanced equipment and high quality technicians, we can produce excellent products. Meanwhile, we are ready to accept processing trust against users' designs and samples, and assemble products with users' components. Because of our competitive prices and promopt delivery we have enjoyed a high reputation at home and abroad.
Welcome your inquiry.
