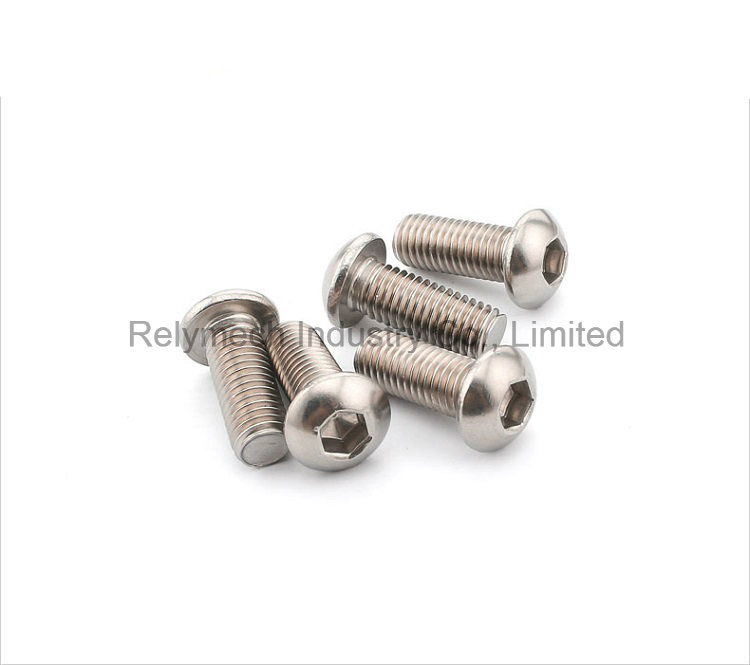

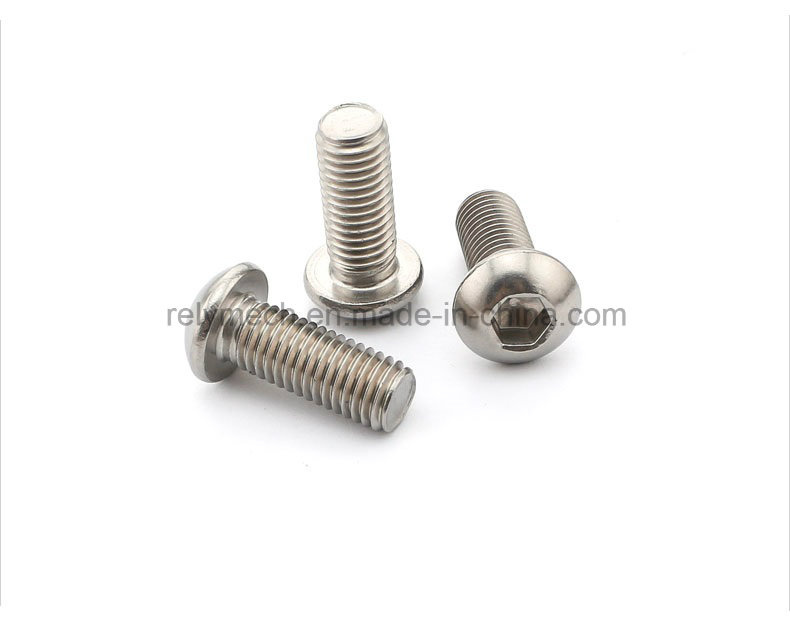

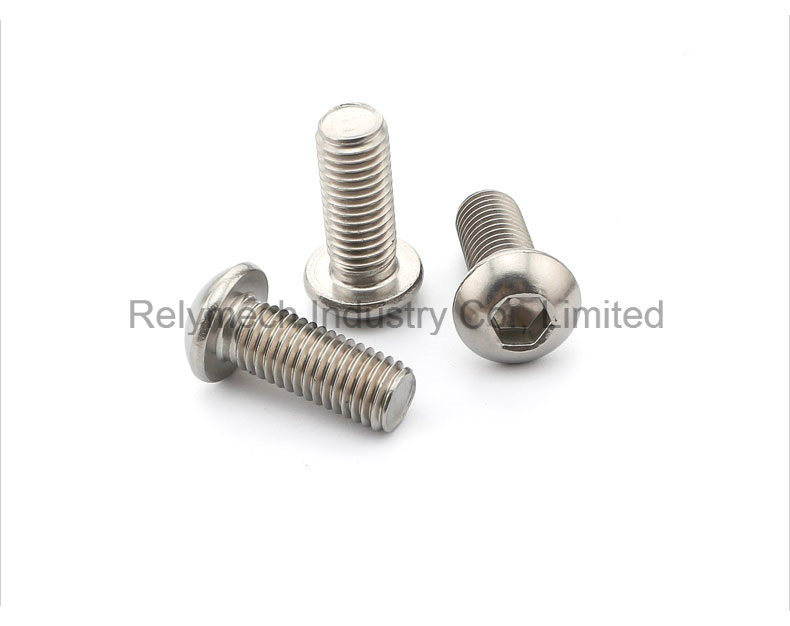

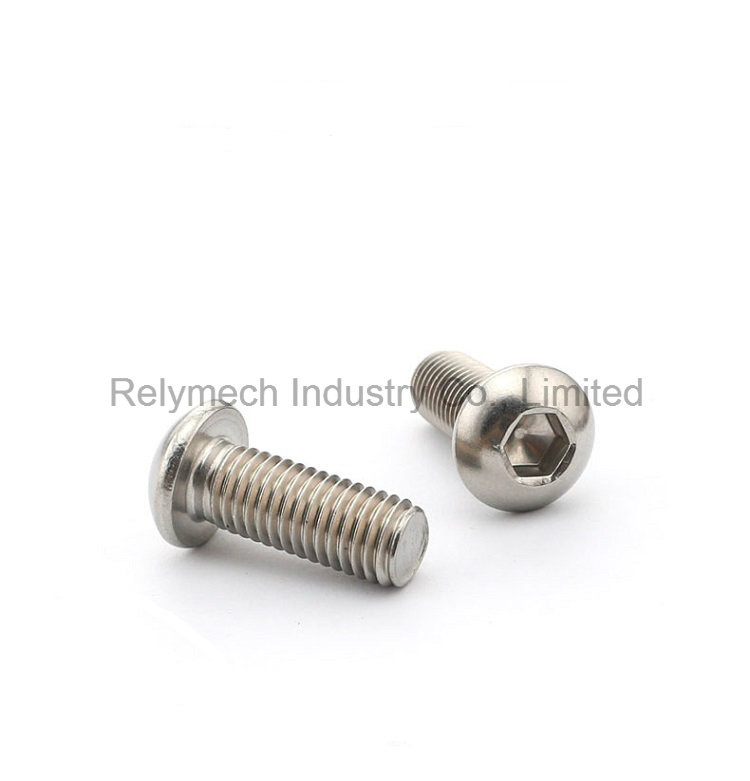

Stainless Steel Hex Socket Pan Head Machine Screw M3-M10

Price:	US $ 0.01-0.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Nanjing Relymech Machinery Co., Ltd.

Showroom Product Company Profile

Name	Hex socket pan head screw
Material	stainless steel 304
Standard	GB
Packing	Plastic bag or paper box

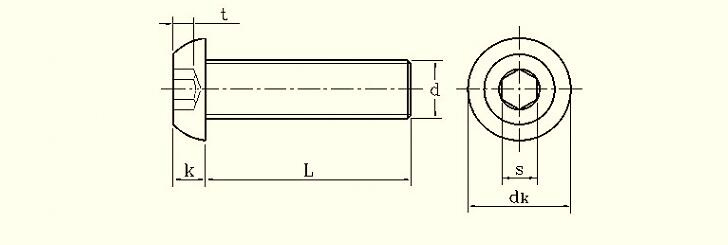

Specification: D is thread diameter, L is thread length, head is not included.

*DL**	*DL**	*DL**	*DL**	*DL**	*DL**
*M36**	*M46**	*M58**	*M610**	*M812**	*M1020**
*M38**	*M48**	*M510**	*M612**	*M816**	*M1025**
*M310**	*M410**	*M512**	*M616**	*M820**	*M1030**
*M312**	*M412**	*M516**	*M620**	*M825**	*M1035**
*M316**	*M416**	*M520**	*M625**	*M830**	*M1040**
*M320**	*M420**	*M525**	*M630**	*M835**	*M1050**
*M325**	*M425**	*M530**	*M635**	*M840**
*M330**	*M430**		*M640**	*M850**
			*M650**	*M860**

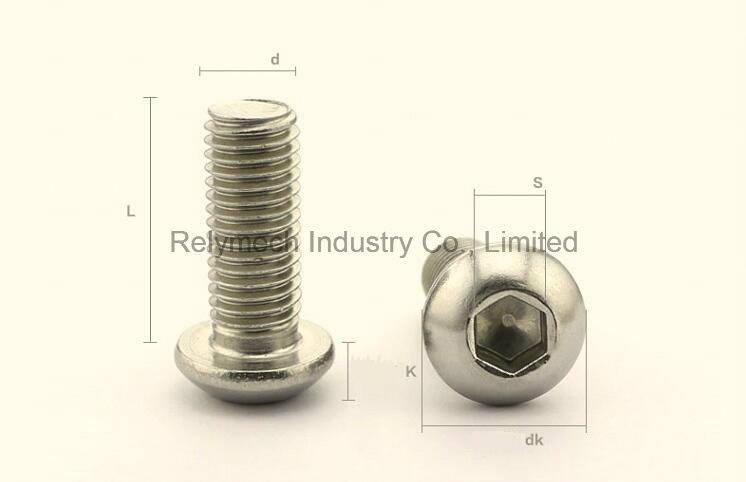

Nominal Dia. d(mm)	Pitch P(mm)	dk(mm)		k(mm)		s(mm)		t(mm) min
Nominal Dia. d(mm)	Pitch P(mm)	max	min	max	min	max	min	t(mm) min
M3	0.5	5.7	5.4	1.65	1.4	2.045	2.02	1.04
M4	0.7	7.6	7.24	2.2	1.95	2.56	2.52	1.3
M5	0.8	9.5	9.14	2.75	2.5	3.071	3.02	1.56
M6	1	10.5	10.07	3.3	3	4.084	4.02	2.08
M8	1.25	14	13.57	4.4	4.1	5.084	5.02	2.6
M10	1.5	17.5	17.07	5.5	5.2	6.095	6.02	3.12
M12	1.75	21	20.48	6.6	6.24	8.115	8.025	4.16
M16	2	28	27.48	8.8	8.44	10.115	10.025	5.2

Remark: Above datas are measured by manual for your reference, details in accordance with the final product.

Why Choose us?
Over 10 years export expenrience;
Less MOQ;
Competitve Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.

Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, electrical parts and pneumatic components etc.

Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer.

Prod Model:	M3 M4 M5 M6 M8 M10
Material:	Stainless Steel
Type:	Pan Head
Connection:	Common Bolt
Head Style:	Round
Standard:	GB

Relymech Industry Co., Limited is dedicated to industrial parts service as fasteners, pneumatic components, mechanism transmission parts etc. Our team have more than 10 years' expereience in the design, process and sales in this industry. Our products are widely used in machinery, automatic industries to domestic and oversea markets.

We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer.

Relymech, your reliable partner!
