Product Description

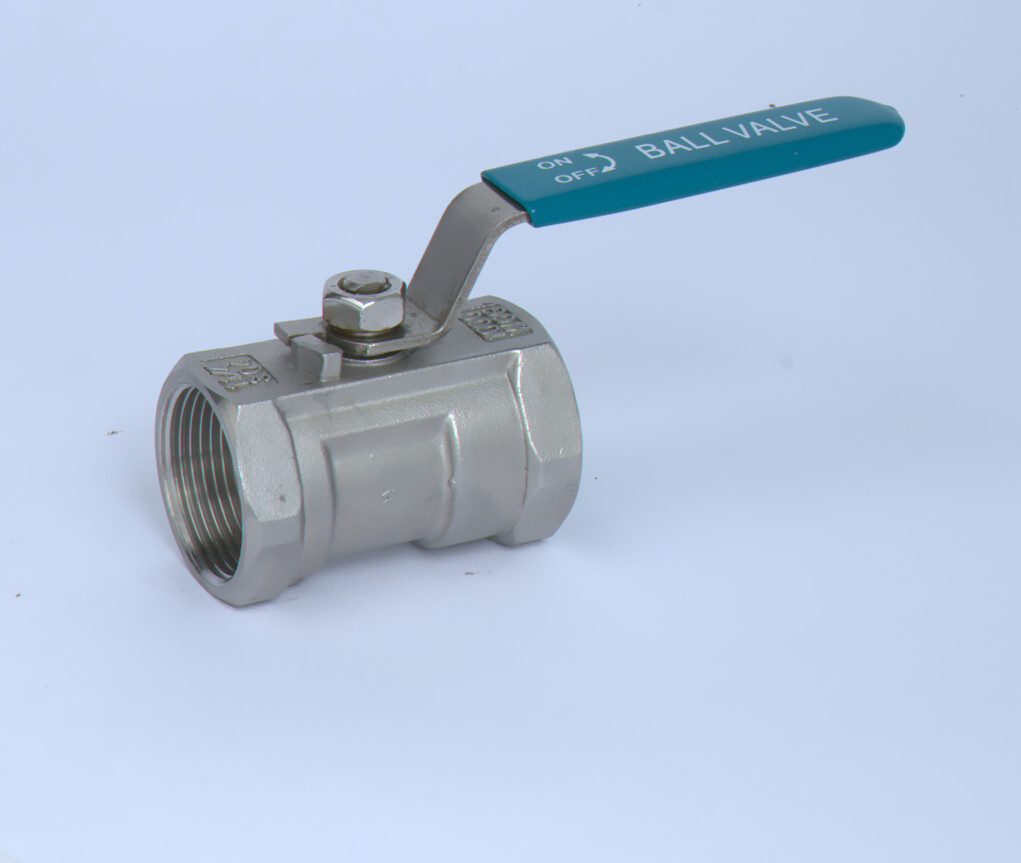

stainless steel 2 pc ball valve with high mounting
Description of Valve:
1) Ball valve Material: Stainless steel 304 316 WCB
2) Ball valve Size: 1/4" - 4"
3) Ball valve Working pressure: PN63
4) Ball valve Bore: Full bore
5) Ball valve Connection type: male thread and weld
6) Ball valve Optional BSP. BSPT. NPT. DIN2999
7) Suitable media: Water, oil, air and some corrosive liquids
8) The specifications can be designed and satisfied for customers' special requirement
Any interest you, pls contact with us freely,
Looking forward to our cooperation!
Trademark: ouming
| Product name | Stainless Steel ISO5211 Pad 3PC Ball Valve (06) |
| 1)Material | SS201 SS304, 304L, 316, 316L |
| 2)Size | 1/4''-4''&DN6-DN100 |
| 3)Certificate | ISO9001: 2000,CE |
| 4)Working pressure | 1000psi(6.4MPa) |
| 5)Connection Ends | Threaded and weld |
| 6)Suitable medium | Water, gas, air and some corrosive liquid |
| 7)Temperature Range | -20-300 degree C |
| 8)Investment | casting body and cap |
| 9)Sealing | PTFE, RPTFE, PPL |
| 10)stem | SS304,SS316 Adjustable stem packing, |
| 11)Locking | option |
| Our advantage | Survival by quality and development by credibility.
Quality first, customer upmost ! |
| 100% leakage tested at 100 psi air under water |
| Blow-out proof stem, ball are made of ss316 or customer request |
| Pure Teflon seals and seats |
| Can do OEM products |
| Shipment |
|
| Delivery time | usually 25 days around and can negotiate as per order qty |
| Shipping port | Ningbo / Shanghai |
| Term of Payment | 30% TT deposit, the balance against copy of B/L |
| Package detail | inner CTN, outside plywood case |
| MOQ | 20 PCS/size |
| Gurantee Period | 18 monthes |
| Capacity to produce | 100, 000 PCS/week |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 19368.33square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.

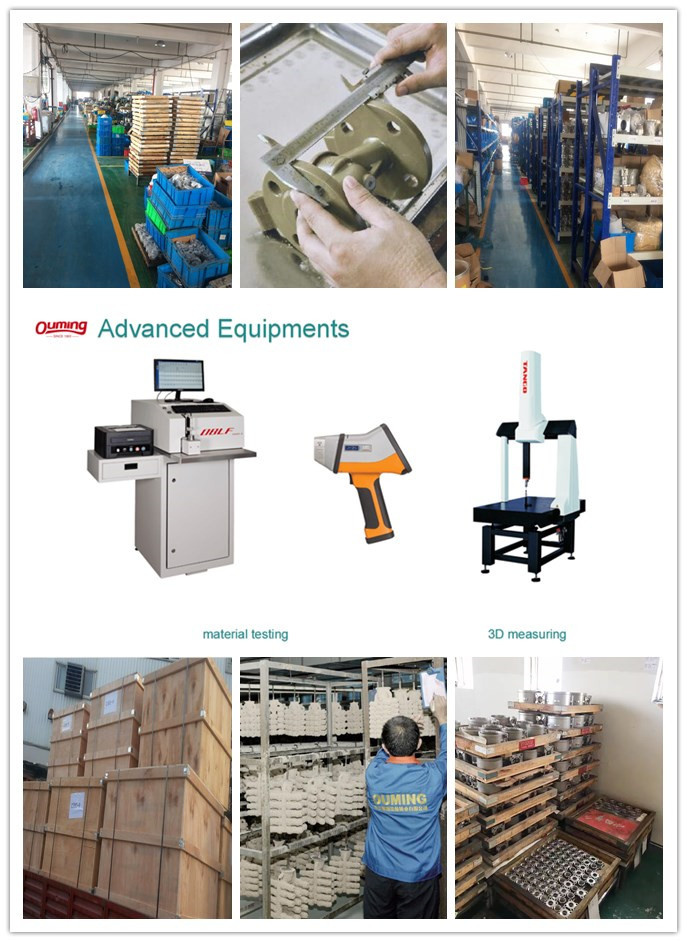

We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
