| Price: | US $ 3000-20000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

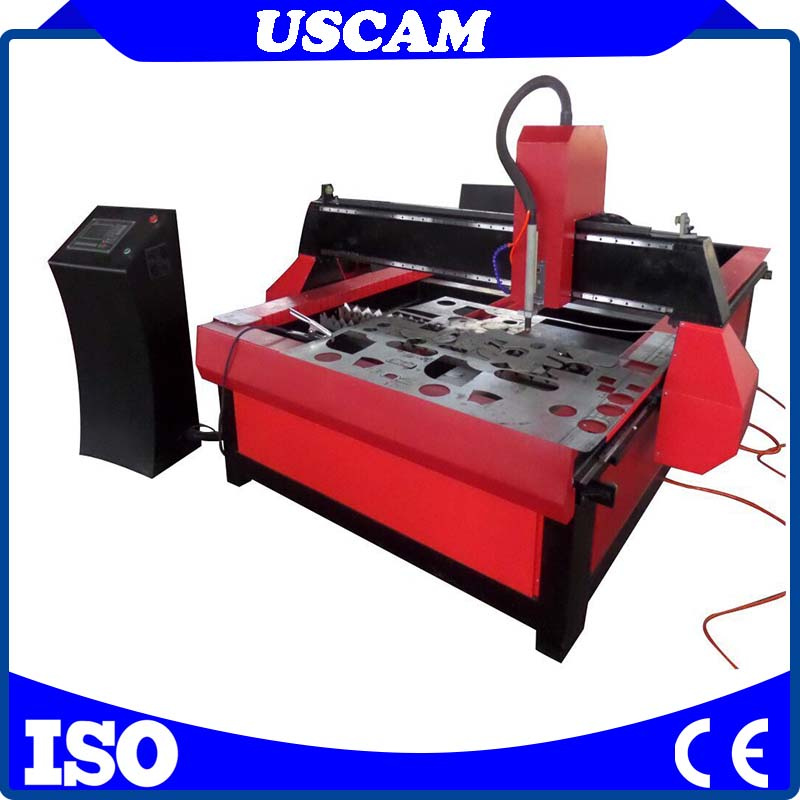

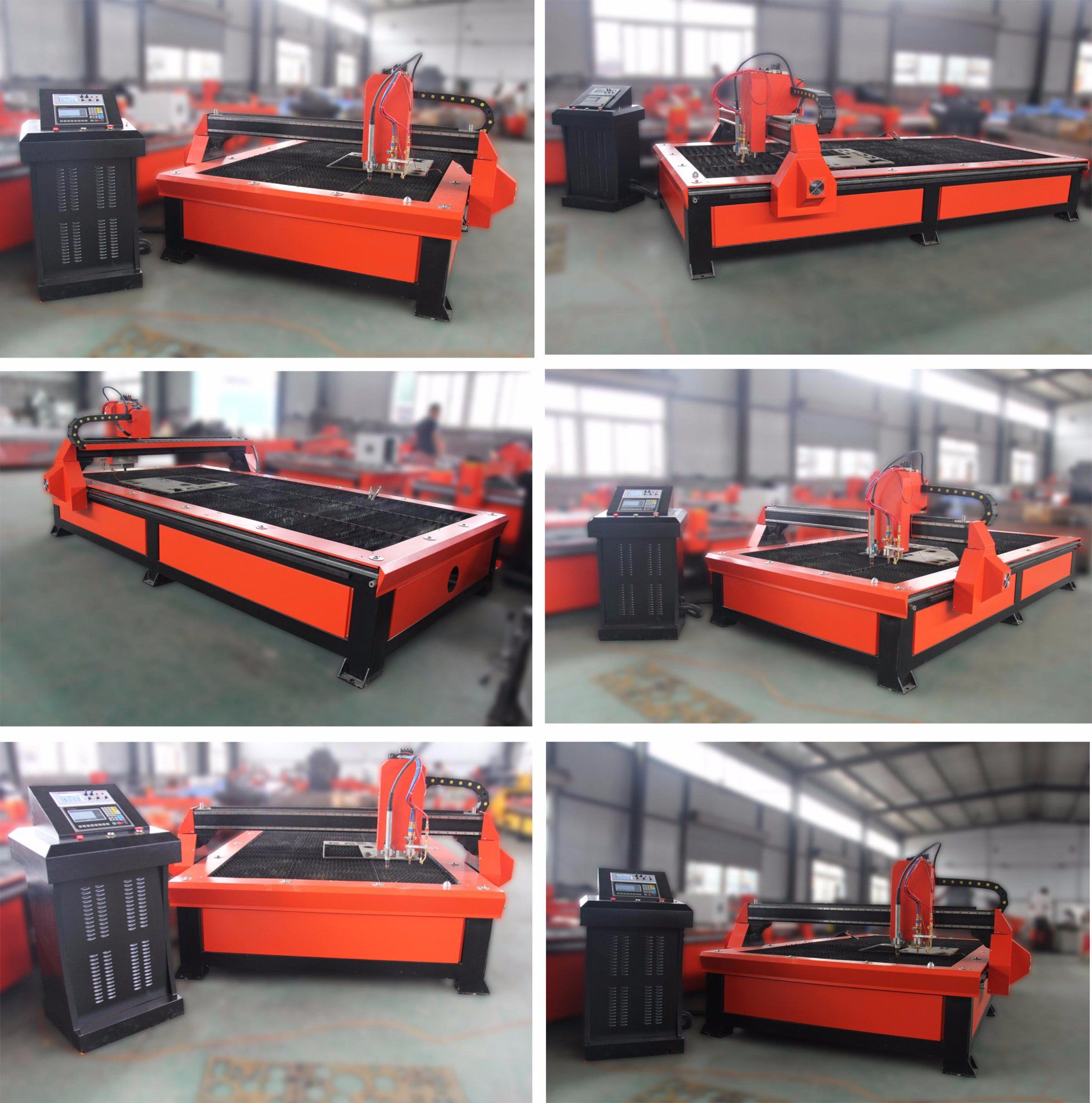

Features plasma cutting machine 1. The rack is fully welded, solid and reasonable, simple and durable.
2. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option:squar raill)
3. Independent research the water cooling system to ensure that the materials smooth deformation of incision.
4. High configuration. Automatic THC/ARC, stable performance, arc success rate of 99% or more.
5. Support Fastcam software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats.
U disk exchange control system processing files, easy to operate
Parameters
Working Area | 1300x2500mm/1500*3000mm/2000x3000mm |
Working material | Iron, steel, aluminum, sheets, galvanized sheets, titanium plates |
Cutting thickness | 0.5-40mm |
Cutting speed | 0-8000mm/min |
Control system | Beijing Start control system(The updated controller) |
Control software | Fastcam |
Drive system | Stepper /Servo |
Input voltage | 220V / 380V - 50HZ |
Plasma power | 63A(100/120/160/200A for option) |
Files transfer | USB interface |
Arc | Untouched arc striking |
File format | G-code |
Plasma source | Huayuan or Hypertherm(depend on you) |

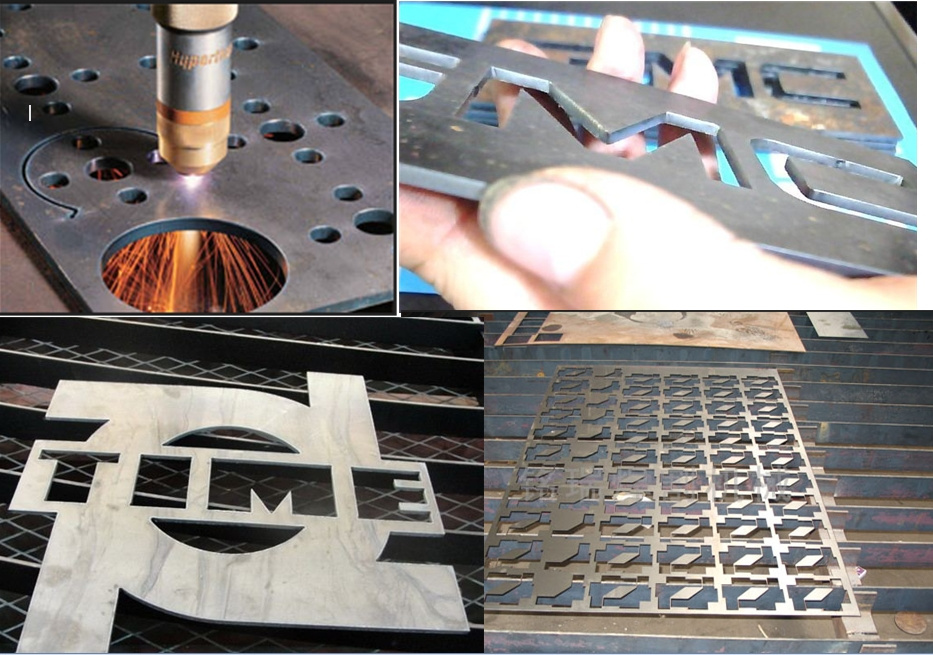

Application and Sample
CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.
Package and Shipping
1. Lead time: Within 7-12 working days after receiving payment.
2. Packing: All machines are packed with standard inner plastic wrap and outer plywood case.
The inner package would be helping to tight all the small parts in the package. And the plywood is firm enough to protect the cnc machine during shipping.
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
FAQ
Q1 For offer the most suitable machine,how should i do ?
1).What material you cut ?
2)what is the thickness metal you cut ?
3). What size of machine you need ? our standard size working area 1200x1200/1300x2500/1500x3000/2000x3000/2000mm
Q2.If we do not know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or WhatsApp.

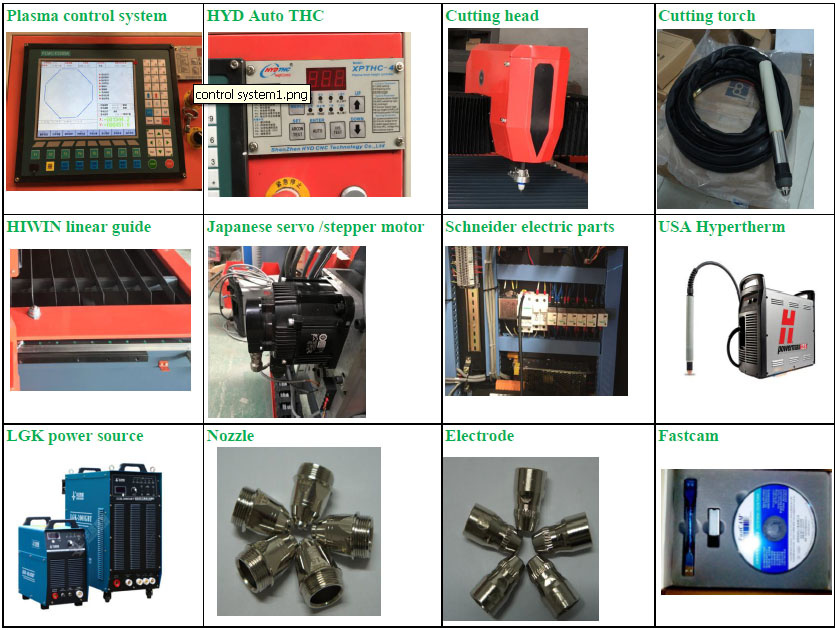

| Prod Model: | USP1325 |
|---|---|
| X Y Drive System: | Rack and Pinion Drive, Hiwin Linear Rails |
| Z Drive System: | Ball Screw, Hiwin Linear Rails |
| Drive Mode: | Stepper or Servo |
| Working Voltage: | AC380V/50Hz |
| Positioning Accuracy: | 0.03/300mm |
| Connecting Way: | USB Interface |
| Plasma Power Source: | Hypertherm, Huayuan |
| Cutting Thickness: | 1-50 mm |
| Plasma Table: | Knief Table Surface |
| Control System: | Start Control System |
