Home Toolbuy Products Stable and High Precision CNC Milling Machinery Tool

Stable and High Precision CNC Milling Machinery Tool

Stable and High Precision CNC Milling Machinery Tool
Price: US $ 12500-25500/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

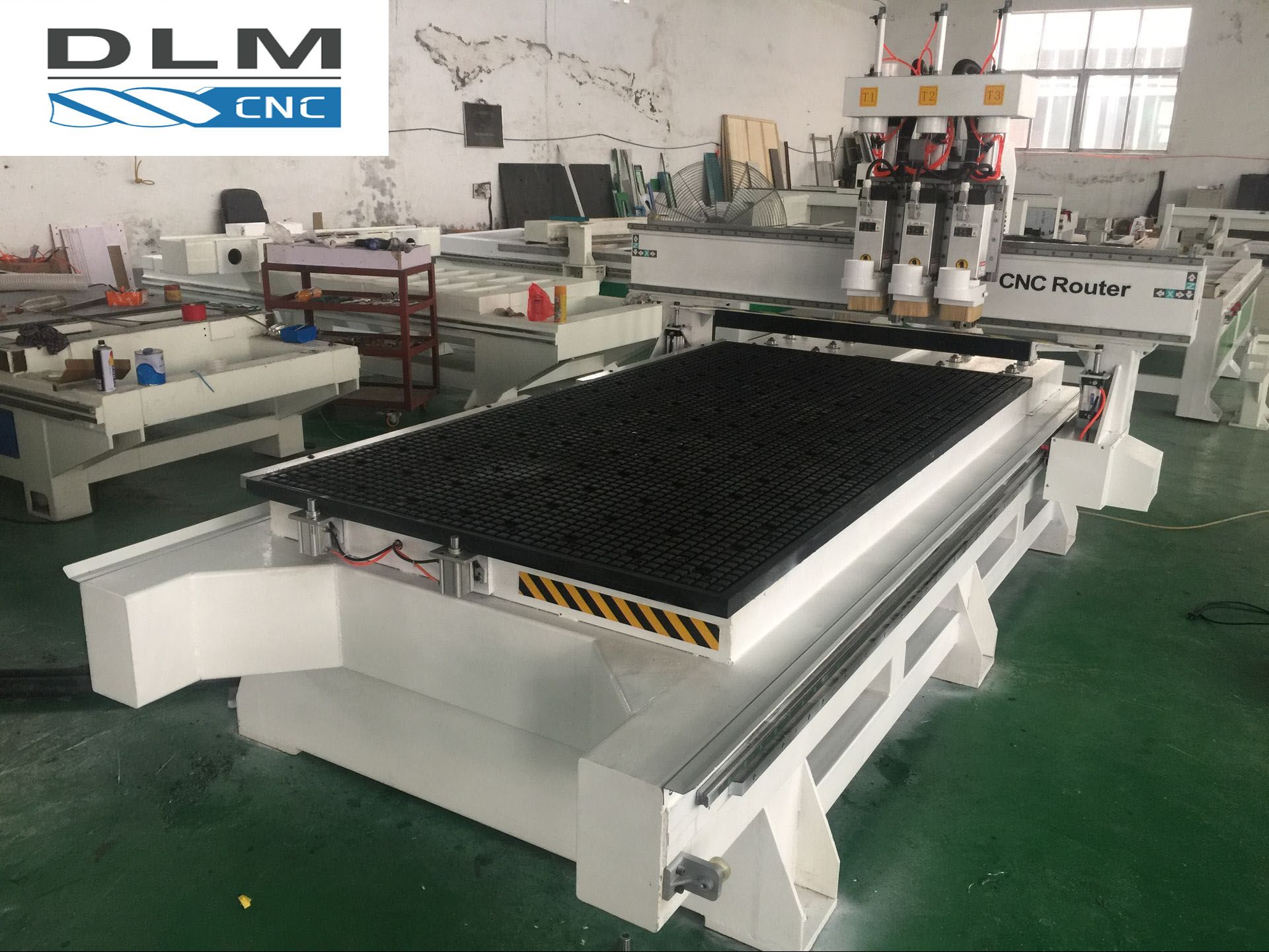

CNC Woodworking Machinery Tool
Door Making Machine model NM-483




Technical Parameter:
ModelNM-483 (Asynchronous Type)
X-Y-Z axis working area1,300 x 2,500 x 200mm
Machine size3100 x 2200 x 1750mm
Resolutions0.025mm
X-Y movementRack and pinion, gear drive/Taiwan
Z movementBall screw drive/Germany
GuideLinear 20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle 1-36kw (Chinese Fan cooling)
Spindle 1-318,000rpm
Inverter power7.5kw
Drive motorsstepper
Working voltageAC380V/50-60Hz, 3-phase
Command codeG code
Computer interfaceUSB 2.2
ColletER25- 3.175mm, 6mm, 12.7mm
SoftwareType3 Software/France
ControlsDSP A15 For Two Spindle
Packing dimensions3220 x 2280 x 1870mm,1300 kgs
Standard equipment included1. Auto tool surface sensor
2. Manual oil lubrication system
3. Dust hood
4. T-slot table with mechanical clamps






Prod Model: NM-483

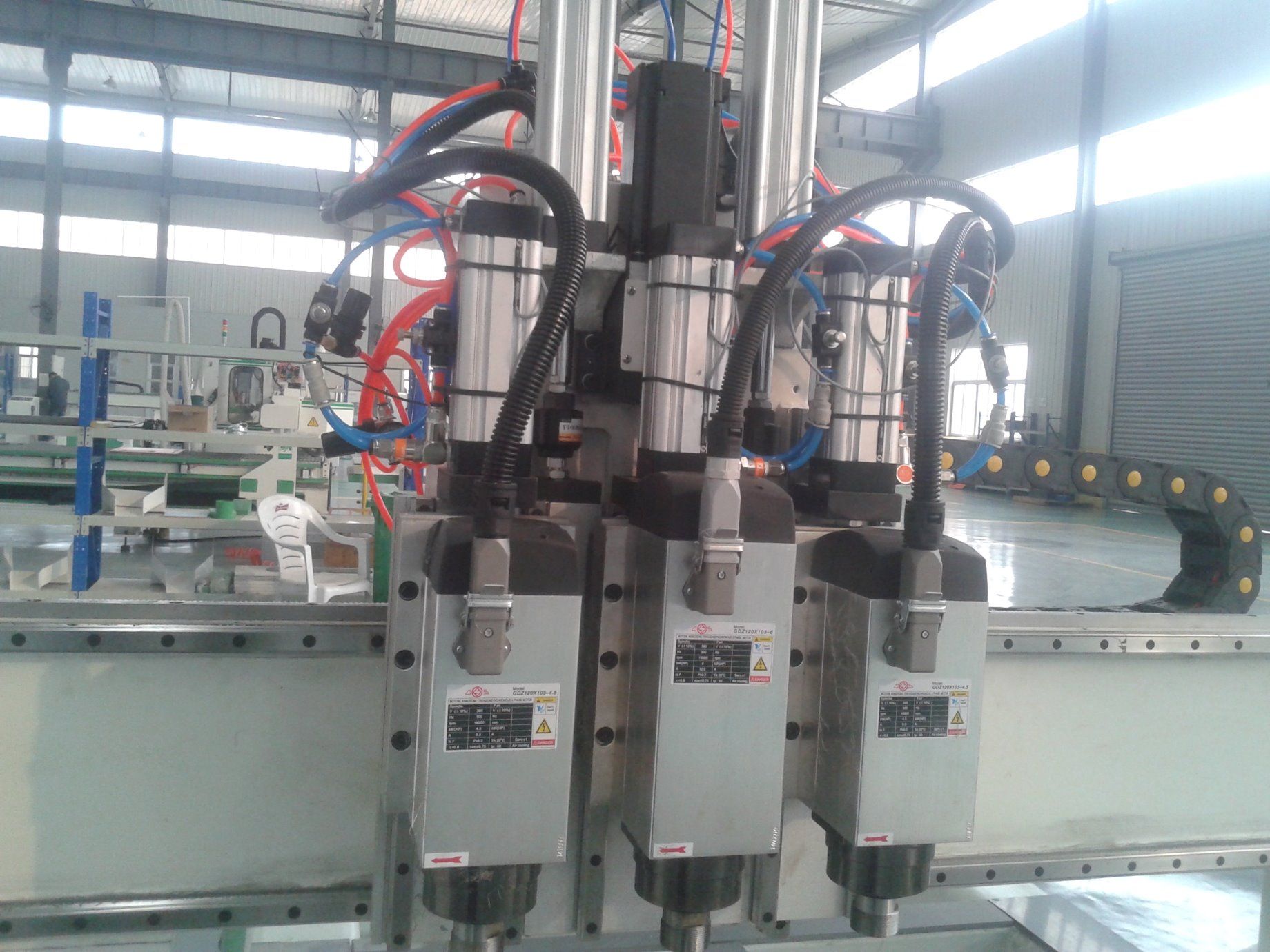

Spindle: 6kw Air Cooling Spindle
Controller: Nk-105 DSP
Table: T-Slot Vacuum Table
Rail: Taiwan Linear Rail
Rack: German Helical Racks
Pump: 5.5kw Air Cooling
Software: Type 3 / Artcam
Inverter: Fulling / Delta
Dust Collector: 3kw
Ball Screw: High Precision
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.

We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
