Square Wood Multiple Blade Saw from China Supplier

Square Wood Multiple Blade Saw from China Supplier
Price: US $ 2200-3100set
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Money Gram
                      Square Wood Multiple Blade Saw from China Supplier

1. Product introduction:
This machine is designed for cutting the original wood cutting machine, its main features and performance: the use of the upper and lower shaft structural design, pre-sawing navigation to ensure the accuracy of the template, regardless of the length of the wood can ensure that the sawing timber size tolerance in 0.5MM Within the standard deviation of small size, saving wood, from top to bottom saw shaft, saw blade using professional saw blade, saw the surface smooth, no need to plan, to ensure that no saddle. The use of automatic sub-device to improve the utilization of wood: the pressure roller active, increase the tension, feeding steady, the domestic initiative, the axis of water to cool the saw blade, grease cooling, enhanced blade life, Greatly improve the efficiency; for saw blade is simple and convenient. This product is specialized processing fixed width wood 5CM, each time up to four 5CM wide finished board. Simple operation, not allowed professional band saw master operation, ordinary artificial can operate for the enterprise to save a lot of labor costs. It is suitable for wood processing enterprises such as solid wood flooring, wooden pallets, blockboards, fingerboards and solid wood furniture. It is the necessary production equipment for wood processing enterprises.

2.Machine Features :
(1). Operation safe, semi-automatic feeding system, there is no security risk. The yield is high, and the yield per day (8 hours) is about 20 cube.
(2)Simple operation, just ordinary staff can be processed high-precision sheet. Plate thickness can be freely adjusted to saw the plane, the finished product is smooth, no need to plan.
(3) Ultra-thin saw blade, using a 1.8 - 3mm saw blade. High precision, no size of the first problem, reduce the process, reduce the waste of wood, increase timber utilization.
(4). Cooling dust removal system, so that the blade will not work for a long time at high temperatures to extend the life of the saw blade to reduce dust.

3.Technical parameter
Maximum processing widthinfiniteinfinite
Maximum processing height1-8cm8-16cm
Adjustable speed motor0.75KW1.5kw
Main motor11KW*222kw*2
Speed of mainshaft2800r/m2800r/m
Dimensions (L × W × H)1600*800*1500mm1800*1600*1200mm

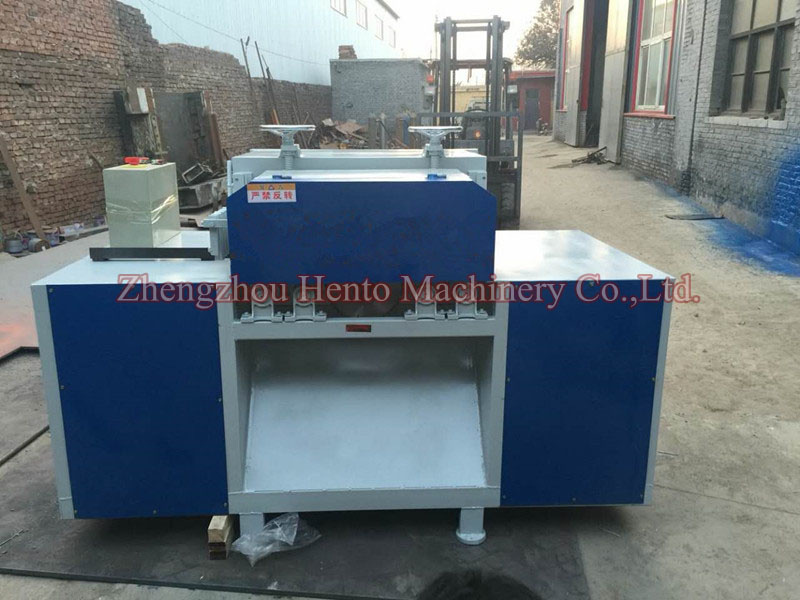

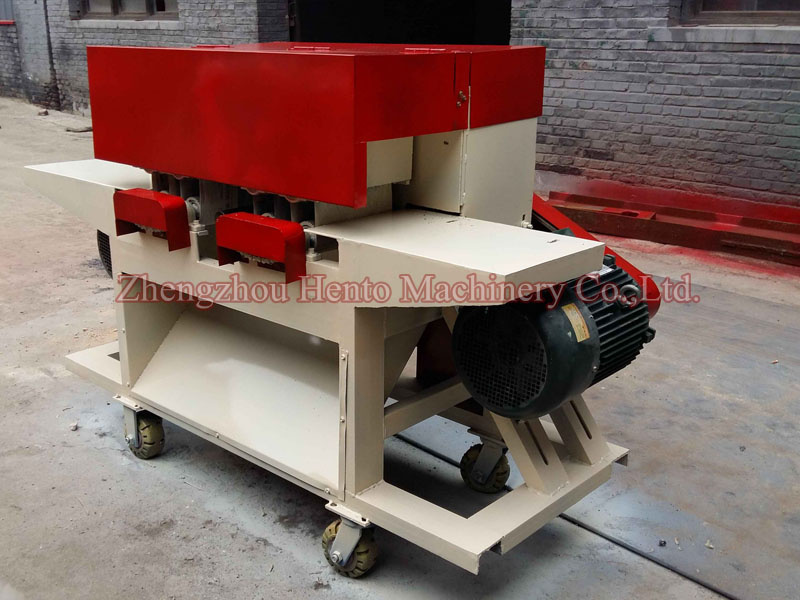

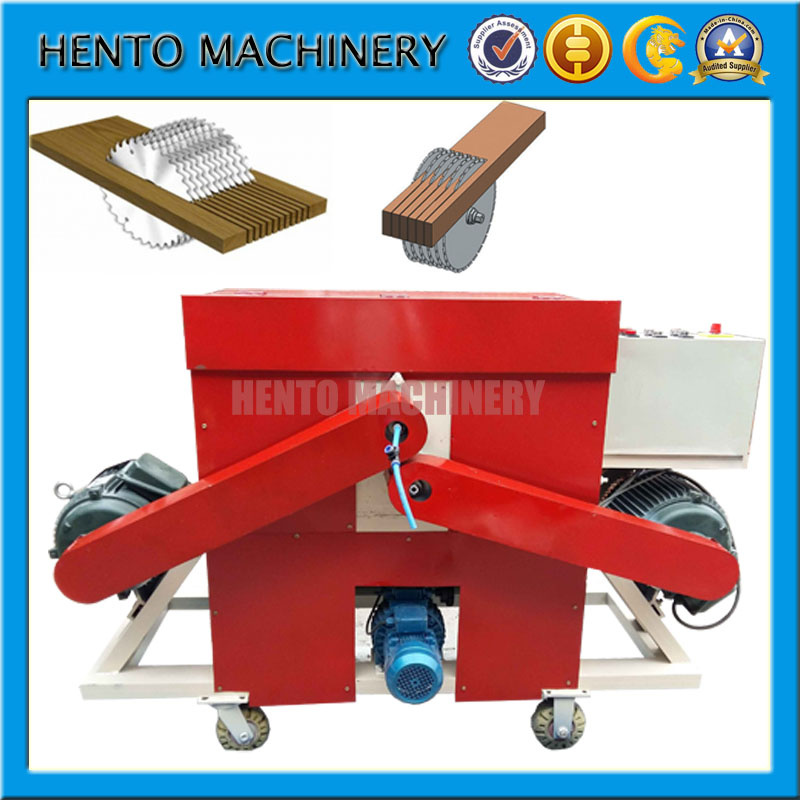

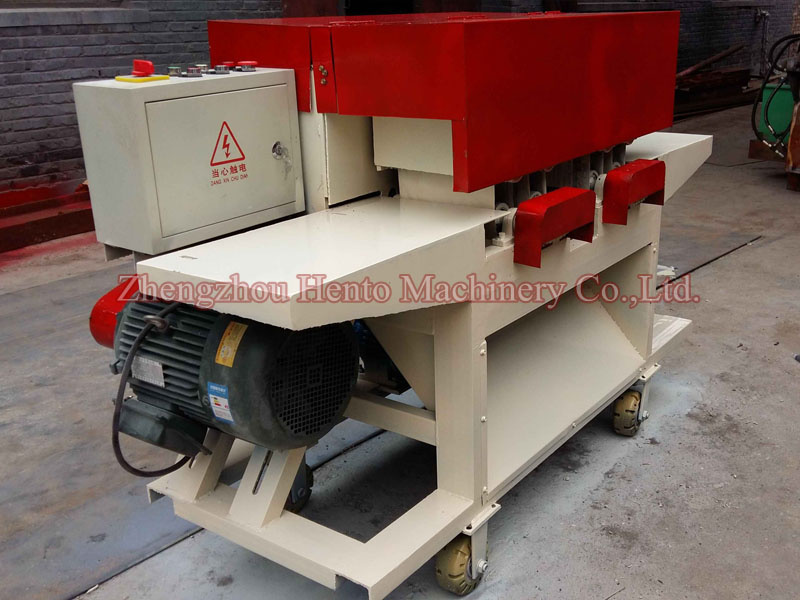

4.Machine Photos:

5.Company Certificate:


7.Our Customers:

8.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
Prod Model: HT-FMDPJ01
Name: Square Wood Multiple Blade Saw
Voltage: 380V.Customized
Power: 0.75kw
Weight: 500kg
Material: Stainless Steel
Speed Of Mainshaft: 2800r/m
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: Precision
Certification: SGS TUV CO
Our company, Zhengzhou Hento Machinery Co., Ltd., is the professional manufacturer and exporter of mechanical equipment. Our factory was established in 1998. In the past, many companies in China bought machines from our company, and resold them in the international market. In order to develop our own international business, we established our own exporting company in 2013.

Our main products include food processing machines, microwave equipment, cable recycling machines, agriculture machines, etc. Our machines are complied with international quality standard and are greatly popular in various markets around the world, part of our machines have got CE certificate. Our well-equipped facilities, complete after-sale service system and excellent quality control system on all stages of production enable us to satisfy customers from different countries. Now our sales network have reached Europe, America, Middle East, Southeast Asia, Africa, etc.

The society development and industry competition make us enter into the age of product homogeneity. Hento Machinery can stand out from fierce market competition worldwide, it benefit by the trust and identity of new and old customers. Adhere to the mission of quality is fundamental, service is the key, Abide by the belief of integrity-based, down to earth, we will continue as before, keep our complete after-sale service system and excellent quality control system. We sincerely welcome customers at home and abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend!
