Square Wood High Efficiency Multi Rip Saw

Square Wood High Efficiency Multi Rip Saw
Price: US $ 16500-17200/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

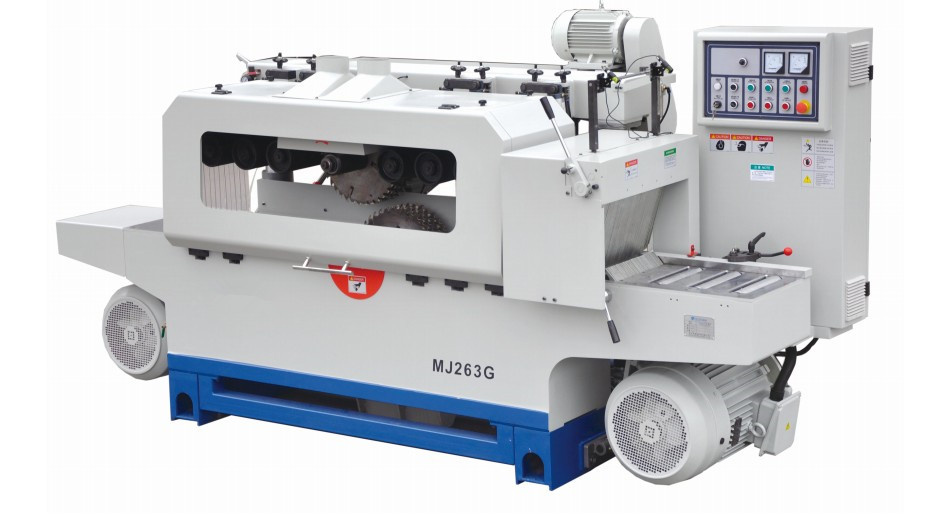

MJ263G Automatic multi rip saw

3, Main features:
  1. the machine uses the structure of two groups of saw blade processing at the same time, then choose smaller and thinner saw blade according to the wood hardness and thickness.
  2. the spindle with special alloy steel and Φ60mm diameter, after repeated heat treatment and precision machining, its performance is stable and high precision.
  3. the axis with water cooling structure.
  4. machine feeding system equip 7 sets feeding roller, to achieve a strong feed, to ensure the processing of thick material feeding fluency.
  5. Upper feeding roller structure adopts the cylinder pressing structure and the segmented pressing material structure and can force adjustment according to the hardness of the wood thickness to ensure smooth feeding.
  6. Feeding using frequency converter and cardan shaft transmission structure, feeding speed of 15 m / min.
  7. the front of the feed configuration three anti-rebound security guards to ensure that equipment operation more secure.
  8. equipped with manual lubrication pump on the important sliding, rotating position, such as columns, slide rails, motor rotation, etc. for centralized supply oil lubrication.
  9. equipped with 2 sets of laser marking instrument


4, Technical parameters
Model MJ263G
Max cutting width 300 mm
Max cutting thickness 280 mm
Min cutting thickness 80 mm
Min cutting length 800 mm
Spindle speed 3000 r/min
Feeding speed 3-15 m/min
Spindle diameterΦ60 mm
Saw blade diameterΦ305-Φ405 mm
Total motor power94.75 KW
Upper spindle motor 45 KW
Lower spindle motor 45 KW
Feeding motor 4 KW
Beam lifting motor0.75 KW
Pressing wheel dimensionΦ140×Φ35×50 mm
Dust collection port diameterΦ140 mm
Machine's overall size355×145×180 cm
Machine's net weight 3500 kg
Prod Model: MJ263G
Model: Mj263G
Warranty: One Year
Voltage: 380V, 3phase, 50Hz (Can Customized)
Certificate: Ce&ISO
Service: Oversea Service Is Available
Brand: Hicas
Packaging: Plywood Box
Machine’s Net Weight: 3500 Kg
Application: Woodworking
Usage: Cutting Big Square Wood
Type: Rip Saw
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
