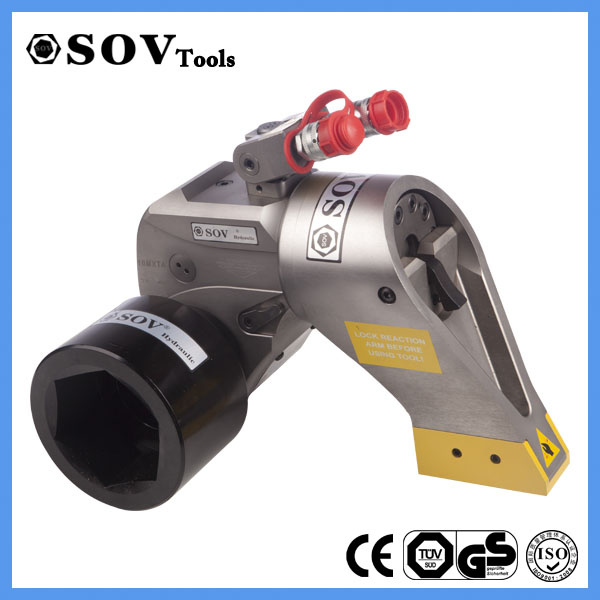

SOV series square drive hydraulic torque wrench(Al-Ti alloy)
SOV series hydraulic torque wrench is the all time most requested square drive hydraulic torque equipment by maintenance, service and construction personnel worldwide! The SOV equipment includes features that set the standard by which all other manufacturer's strive to measure up to.
Features
1.360° *180° Plug in type reaction lever, could be used in different position.
2. Shaft tightened and disassembled by button at high speed.
3. Slim ratchet tooth design to avoid chucking.
4. Minimum quantity moving components to guarantee best performance stability.
5. Design: Compact, high strength, lightweight, portable.
6. Big nut turn angle (30° ) per operation, fast return of cylinder plunger, high operating efficiency.
7. Maintenance work is very simple, no need to equip with other tools.
8. ISO & CE certified.
Our Factory
Established in 1995, SOV hydraulic technology company is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, America, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-Mali, Fax from you would be a beginning of happy cooperation.
Packing Details
1. Out packing: Standard export wooden case;
2. Inner packing: With careful stretch film+ hard cardboard;
Shipping Way
1. Small quantity: By international air express(DHL/FedEx/UPS/TNT), within 2-7days arriving;
2. Large quantity: By ocean shipping, arriving time depends on customers destination;
Delivery Time
1. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock;
2. Delivery time: Prompt delivery;
NOTE: All items are directly from factory, We would allow you a quantity discount, so please contact with me when u gonna order, we will answer back ASAP.
Thanks for your attention, wish you have a nice day!
| Model | Torque range
(mm ) | Bolt diameter
(mm ) | Hex
(mm ) | Square drvie axis
(inch ) | Max pressure
(Bar ) | Weight
(Kg ) |
| SV31LB120 | 110-1200 | 14-30 | 22-46 | 3/4 |
700 | 1.7 |
| SV31LB180 | 180-1800 | 16-36 | 24-55 | 3/4 | 2.3 |
| SV31LB450 | 450-4510 | 22-48 | 34-75 | 1 | 4.8 |
| SV31LB750 | 755-7558 | 27-56 | 41-85 | 1-1/2 | 8.1 |
| SV31LB1000 | 1050-10550 | 30-64 | 46-95 | 1-1/2 | 11 |
| SV31LB1500 | 1550-15500 | 36-72 | 55-105 | 1-1/2 | 14.5 |
| SV31LB2500 | 2650-26500 | 42-90 | 65-110 | 2-1/2 | 26.5 |
| SV31LB3500 | 3500-35000 | 48-100 | 75-145 | 2-1/2 | 34.5 |
| SV31LB5000 | 4850-48500 | 64-120 | 95-170 | 2-1/2 | 48.2 |
| SV31LB7000 | 7200-72000 | 72-125 | 105-180 | 2-1/2 | 85.5 |
| Model | Square drvie size (inch ) | Recommended metric thread | Mini Torque
(Nm ) | Max torque
(Nm ) | Output accuracy | Repeat accuracy | Weight
(Kg ) |
| SV21LB170 | 3/4 | M10-M30 | 172 | 1722 | ±3% | 100% | 2.1 |
| SV21LB450 | 1 | M16-M42 | 447 | 1514 | ±3% | 100% | 4.8 |
| SV21LB1000 | 1-1/2 | M22-M56 | 1003 | 10041 | ±3% | 100% | 9.3 |
| SV21LB1500 | 1-1/2 | M42-M72 | 1491 | 14939 | ±3% | 100% | 13.8 |
| SV21LB2800 | 2-1/2 | M45-M76 | 2790 | 27974 | ±3% | 100% | 24.5 |
| SV21LB3700 | 2-1/2 | M48-M80 | 3687 | 36906 | ±3% | 100% | 31.8 |
| SV21LB5000 | 2-1/2 | M52-M90 | 5075 | 50863 | ±3% | 100% | 43.7 |
| SV21LB7900 | 2-1/2 | M60-M100 | 7862 | 78697 | ±3% | 100% | 57.3 |
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
