Spt Hammer, Auto Trip Hammer for Spt Testing

Spt Hammer, Auto Trip Hammer for Spt Testing
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

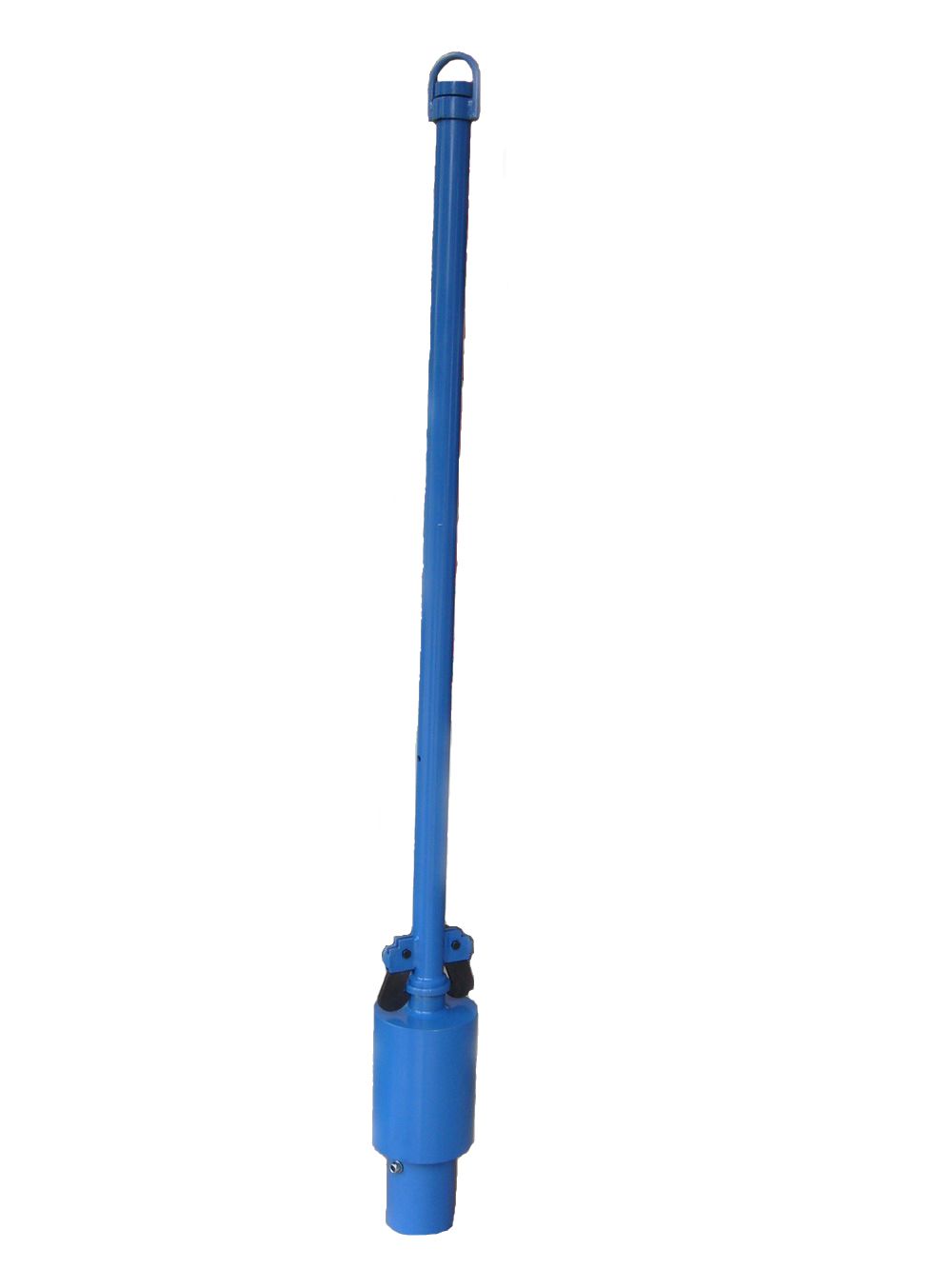

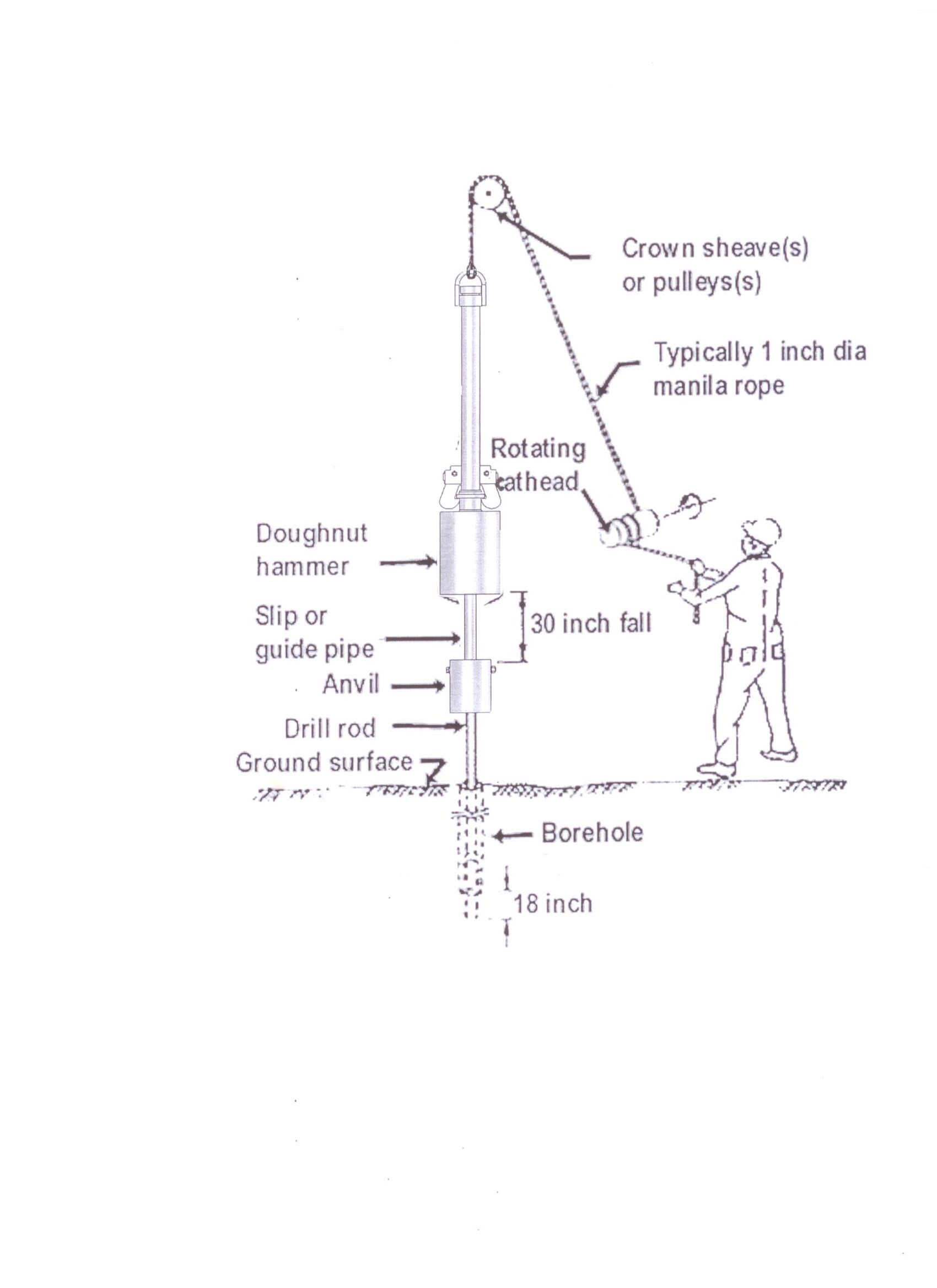

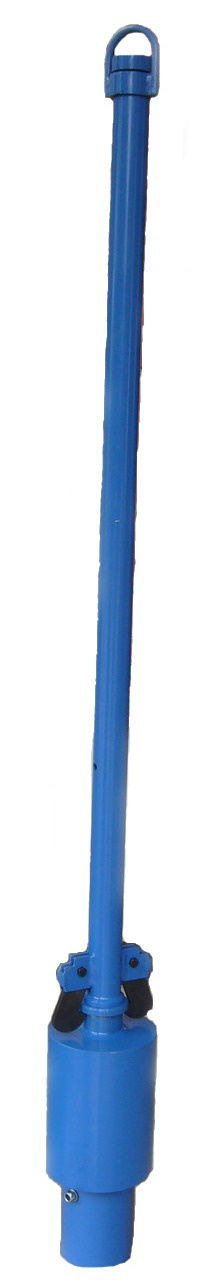

The Automatic Trip Hammer is designed for carrying out the Standard penetration Test (SPT) to BS 1377: Part 9: 1990. SPT Drive Rods and a split Tube Sampler are connected to base of the anvil, and driven into the ground by the falling weight.

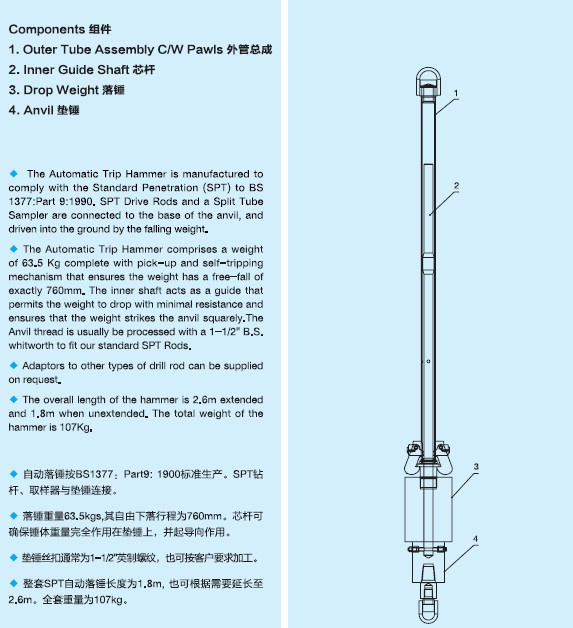

The hammer comprises a drop weight of 63.5 kg and a pick-up and selftripping mechanism that ensures the weight has a free fall of exactly 760mm.

The inner shaft acts as a guide on which the weight drops with minimal resistance and strikes the anvil squarely.

The trip hammer is supplied with a Safety retaining bolt to prevent the weight from sliding when the hammer is not in use or during transport.







SPT SAMPLER  ASTM / BS
STANDARD PENATRATION TEST
Prod Model: SPT, As BS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: as Per Your Request
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.

Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.

Sizes Available:

Diamond core drill bits and diamond non-core drill bits

A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW

H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits: SWF-Long, SWF-Short

U- Gauge Core Bits: UWF-Long, UWF-Short

Z- Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
