Sov Brand Mechanical Torque Multiplier

                             SOV Brand Mechanical Torque Multiplier


Feature
1. Mechanical torque multiplier could be widely used with many other power tools and applicable for the anti-explosion environment.
2. It has high precision and reduction ratio as well as the planetary gear structure and anti-reverse structure.
3. The high-tech alloy material planetary gear is used for it, with compact structure, high strength, well abrasive resistance and light weight.
4. All the machine parts are finished through CNC machining center, which can ensure the consistency of the products.
5. The feature of high quality and maintenance-free saves the maintenance time and cost.

Product Parameter

Model	SOV-FDB-15	SOV-FDB-20	SOV-FDB-35	SOV-FDB-55	SOV-FDB-75	SOV-FDB-100	SOV-FDB-150	SOV-FDB-200
Max. Torque(Nm)	1500	2000	3500	5500	7500	10000	15000	20000
Transmission ratio	4.8	14	17	19	22	61	74.8	96.8
Input Square(mm)	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7
Output Square(mm)	25	25	30	35	40	50	55	60
Bolt Size(mm)	M20-30	M22-36	M30-45	M36-52	M42-60	M52-68	M60-76	M72-80
Nut Size(mm)	S30-46	S32-55	S46-70	S55-80	S65-90	S80-105	S90-115	S105-135

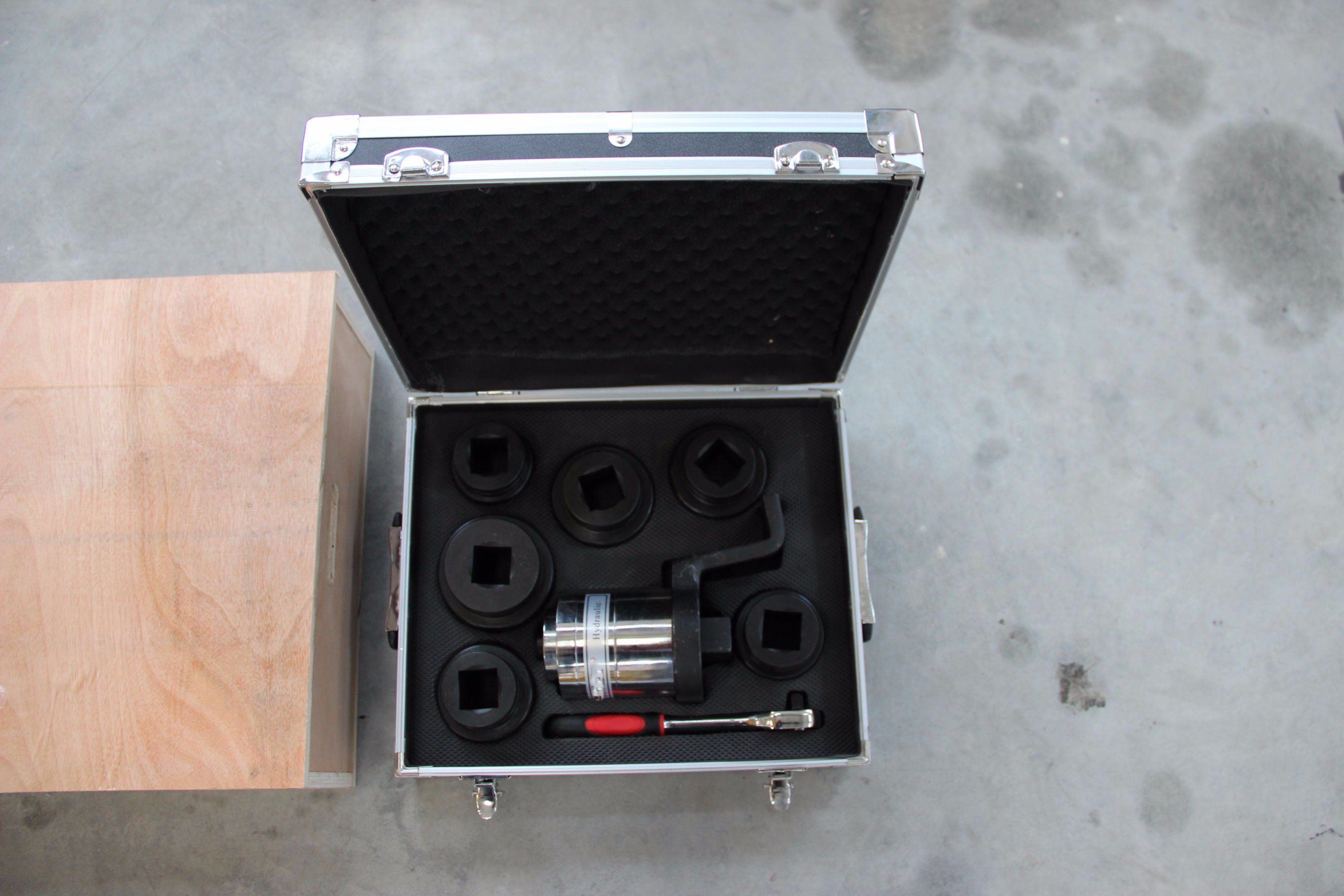

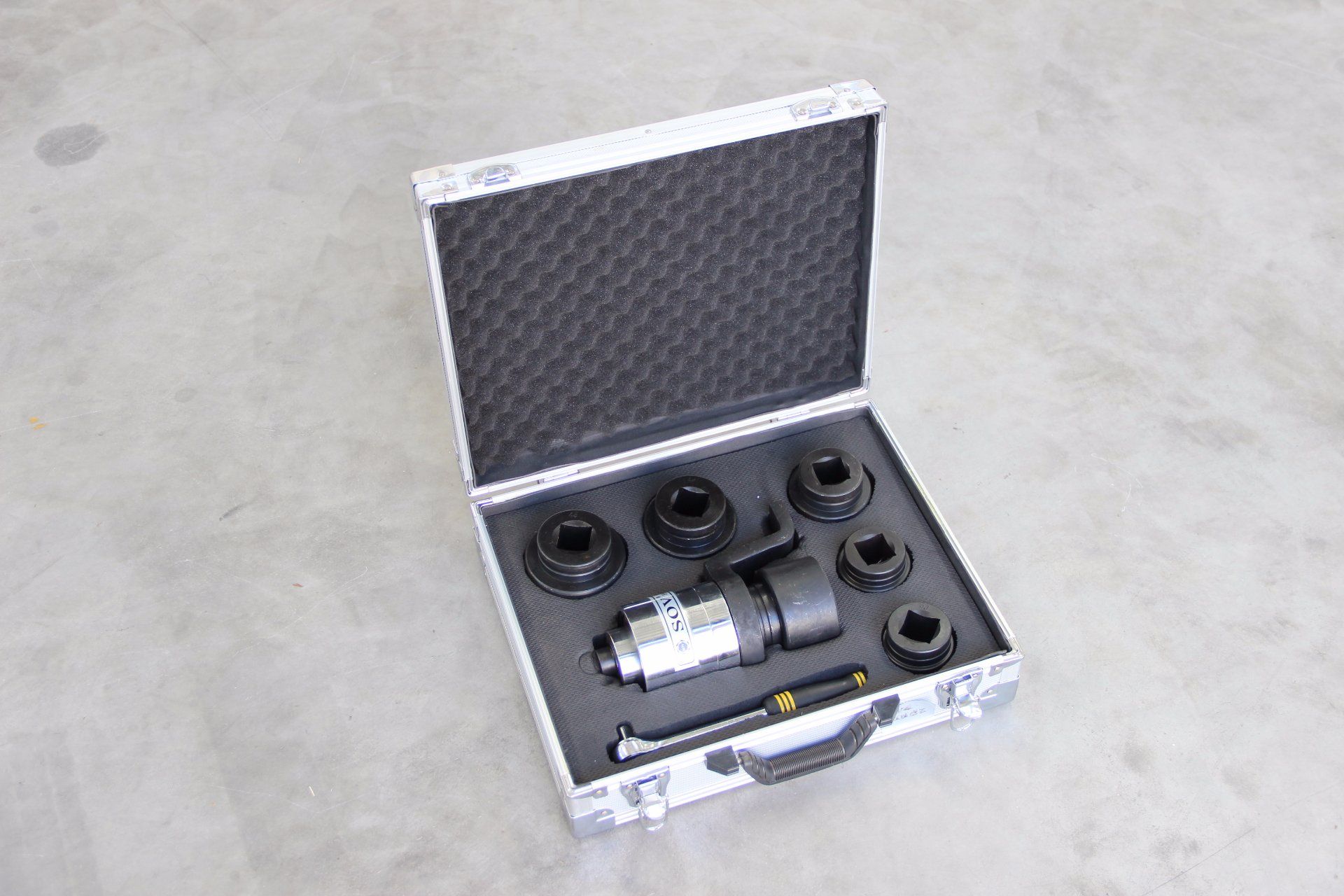

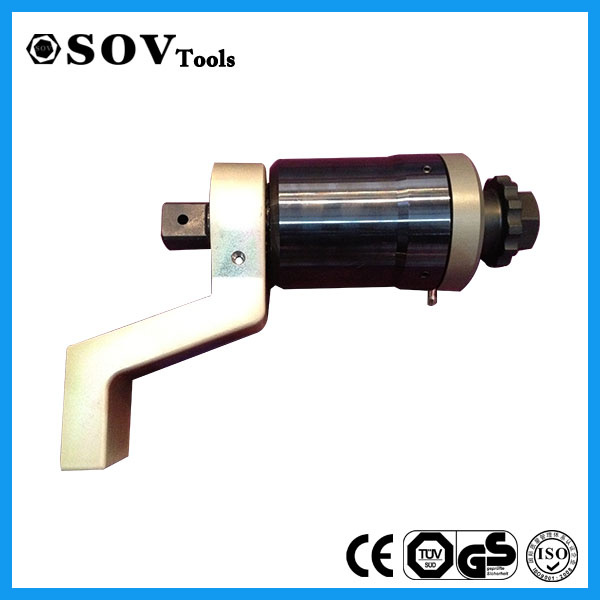

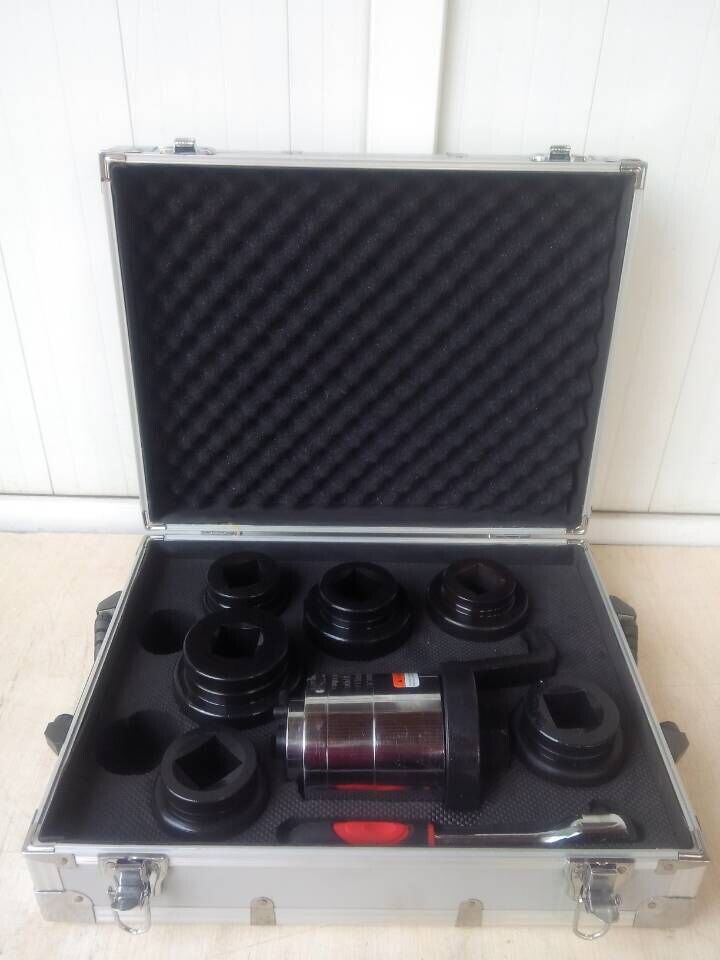

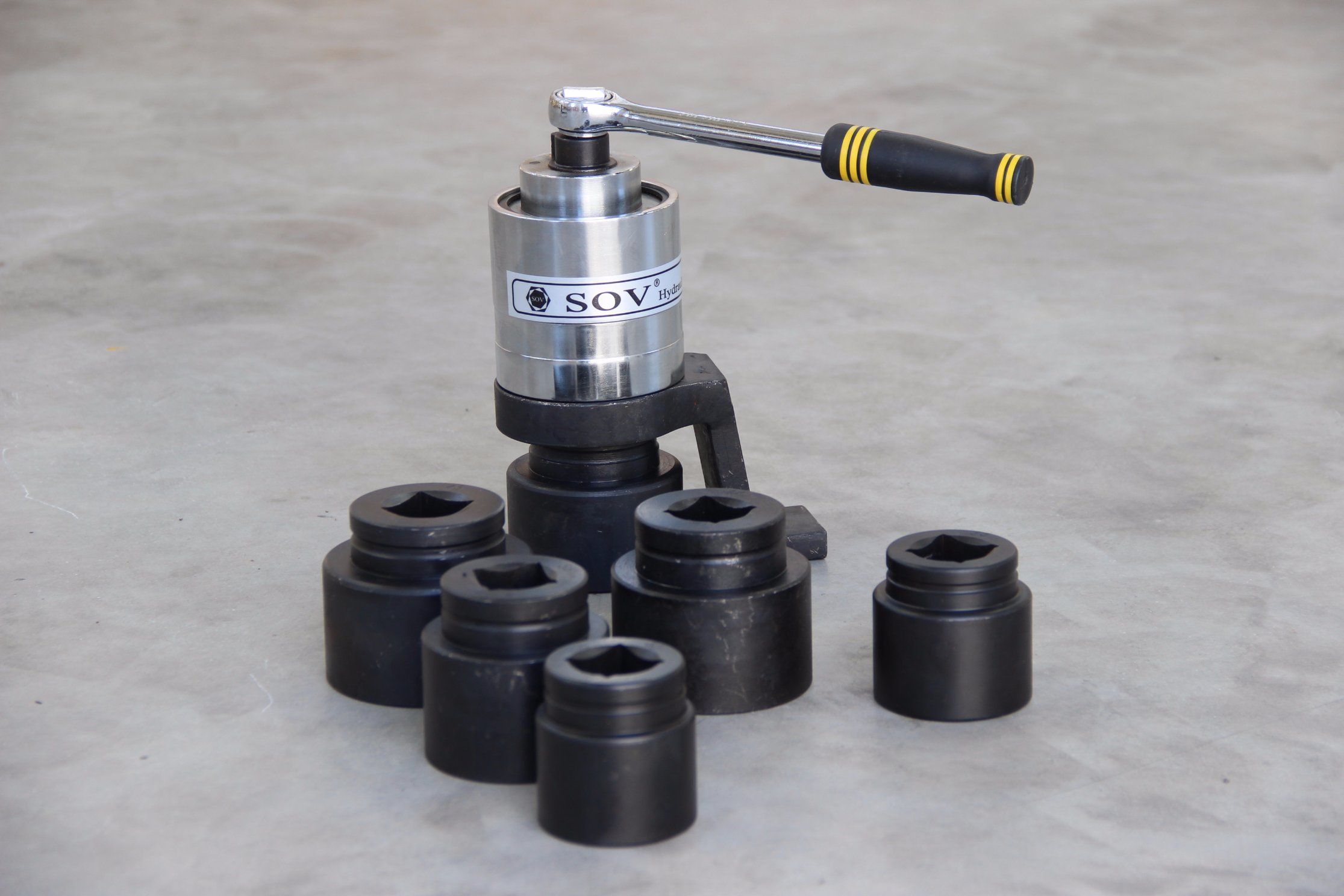

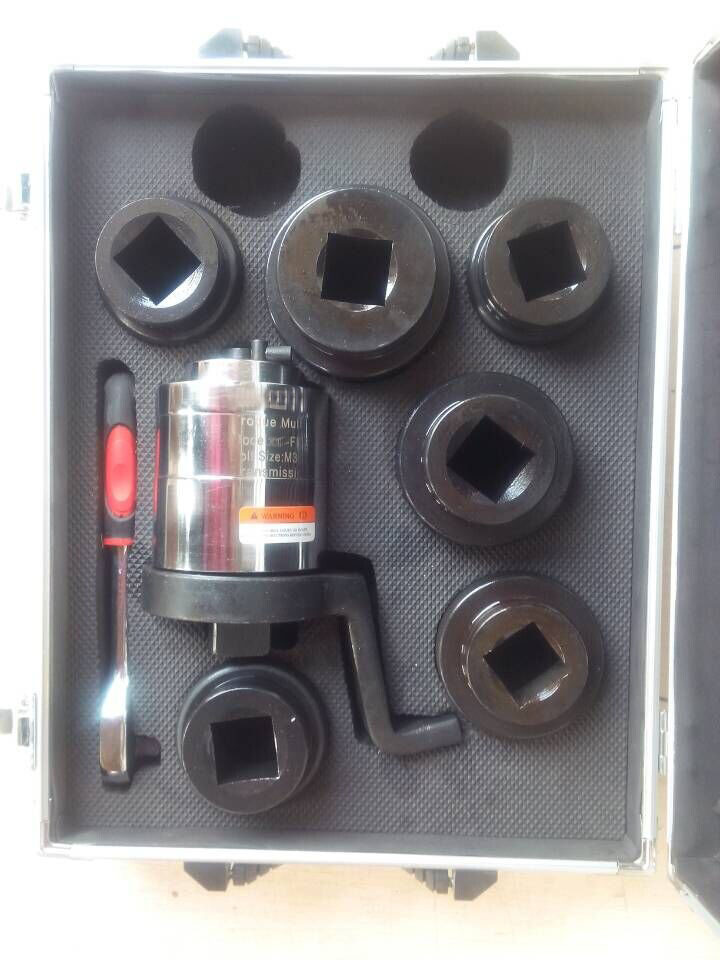

Photos









Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.


Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.



Certicates


Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.


Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
