Soosan Hydraulic Breaker Hydraulic Hammer for Mini Excavator

Soosan Hydraulic Breaker Hydraulic Hammer for Mini Excavator
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

soosan hydraulic breaker hydraulic hammer mini excavator


box type

Chisel diameter
suit excavator Body weight (include chisel)Total weight Size (L*W*H)Hydraulic oil flowHydraulic pressure Blow frequencyHose diameter
mmexcavator weight (ton)kgkgmml/minkg/cm2bmpinch
CTHB10      (SB10)400.8-2.5       1/2
CTHB20      (SB20)451.2-3.0711291331*260*29520-3090-120700-1200 1/2
CTHB30      (SB30)532.5-4.5891551417-350*30525-5090-120600-1100 1/2
CTHB40      (SB40)684--71563611660*328*48640-70110-140500-900 1/2
CTHB43      (SB43)756--92144501712*328*48650-90120-150400-800 1/2
CTHB45      (SB45)857--142827332074*438*57060-100130-160400-800 1/2
CTHB50     (SB50)10010--1547910072345*440*57080-110150-170350-700 3/4
CTHB70     (SB70)13518--2685018982847*560*710130-150160-180400-8001
CTHB81     (SB81)14018--2692020042793*560*710120-180160-180350-5001
CTHB81A    (SB81A)14018--2695620422793*560*710120-180160-180350-5001
CTHB100     (SB100)15027--35109224573002*640*760150-190160-180350-7001
CTHB121     (SB121)15528-35131329683075*640*760180-240160-180300-4501
CTHB131     (SB131)16530-45144229163337*654*840200-260160*180250*4001.1/4
CTHB140    (SB140)165F30-45159031163337*654*840200-270160-180250-3801.1/4
CTHB151    (SB151)17535-50192539063723*670*920210-290160-180200-3501.1/4








2.Advantage for  hydraulic breaker:

(1) Easy control, friendly used and easy position make it more convenient to excavator work.
(2) Top type outside bracket can highed up easily.

(3) the total length of breaker is higher than side type and box type, it is used for breaking high  builidng or roof or something tall.

(4) The outside bracket for top breaker and Side breaker are easily for maintence.


3 Payment terms for  hydraulic breaker:


(1) T/T payment at sight-30% of payment in advance, and 70% of payment before shipment.

OR LC at sight



The standard free spare parts:Two pcs of Chisel, two pcs of oil tube, one pcs of Nitrogen Cylinder, one tool box, a Nitrogen pressure gauge




4.Pacakage and shipping



1.Inner is stretch film, outside is export wooden case or as customer's request



2.Delivery time:Usually 3-7days (1-5sets) after down payment.



3..We can arrange ocean or air transportation according to your request from any port of China.





5.Company and our product



***we are a factory in yantai city,shandong province,China

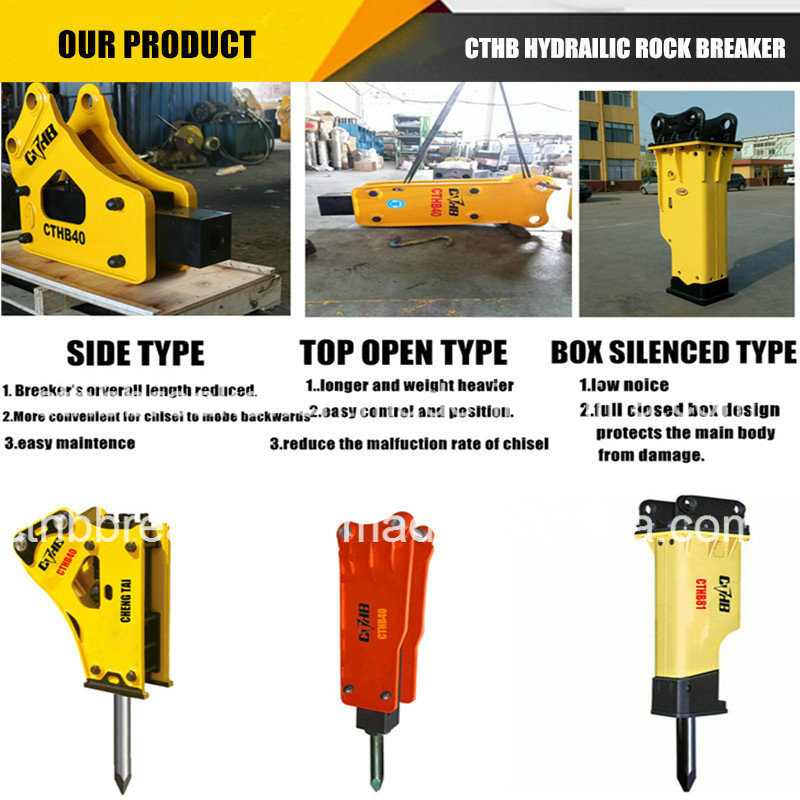

***we specialized in manufacturing soosan SB series hydraulic breaker more than 10 years.Chisel diameter from 40mm to 195mm .Side type ,top open type and box silenced type.












6.Wrranty and our service

1.7Days*24Hours after-sales service

2.Your inquiry will be replied in 24 hours

3.Our customer-oriented sales and technical team are always at your service

4.OEM Service available

5.Warranty:12 months warranty for hydraulic breaker




12 months or (1500 hrs):   Cylinder,Piston,Valve, Back head
(2) 06 month or (1000 hrs):    Front head
(3) 03 month or (500 hrs):      Front bush, Brackets
(4) 01 month or (100 hrs):      Chisel Pin, Accumulator

Note: All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only


FAQ


1.What color can you produce ?

Yellow.If you need special, please advise.



2.How about the delivery time ?

Within 7-10 working days after receiving T/T payment.



3.What's the MOQ and payment ?

MOQ is 1 set.

T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.



4.Are you a manufacture?

Yes, our factory in yantai ,shandong ,china



5.Can you produce according to customers' design?

Sure,we are professional manufacturer,OEM is available.



6.Which country have you exported?
America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.



7.How to buy my wanted products quickly?

Show me the model or the weight of your excavator, and we can give you best solution.

 If you want to know the ocean freight,please also suggest your nearest port.



 8.How about the package?

Standard wooden cases, or as customers' demands.



9.How about your service?

7Days *24Hours hot line and email service.

Well-Retrained and experience staffs will answer all your questions within 12 hours





7.Certification

we could offer you CE and FORM E certificate .


8.Contact informtion


Any help for hydraulic breaker,pls feel free to let me know,thanks








MS.Ashley

Export sales manager

Mobile:+86 15553591276

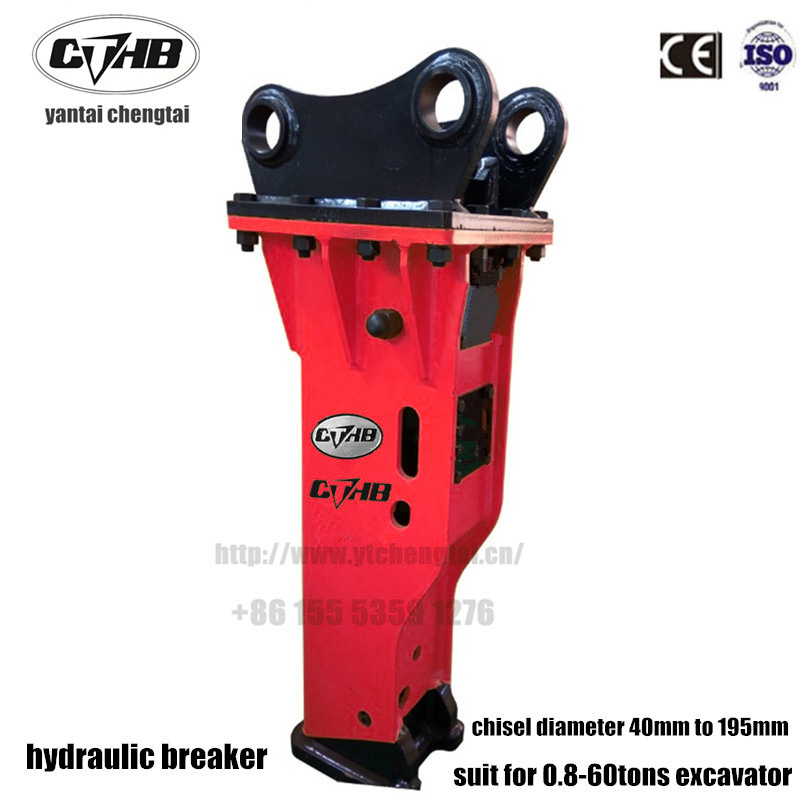

Soosan SB series hydraulic rock breaker

website:http://www.ytchengtai.cn






Prod Model: CTHB
Body Weight Incl.Chisel: 920kg
Total Weight: 2004kg
Size (L*W*H): 2793*560*710mm
Hydraulic Oil Flow: 120-180L/Min
Blow Frequency: 350-500BMP
Chisel Diameter: 140mm
Suit Excavator: 18-26ton
Color: Any Color Could Do, Normal Yellow, Blue
MOQ: 1 Set
Payment: Tt LC
Certification: CE
Condition: New
Type: Hydraulic Breaker

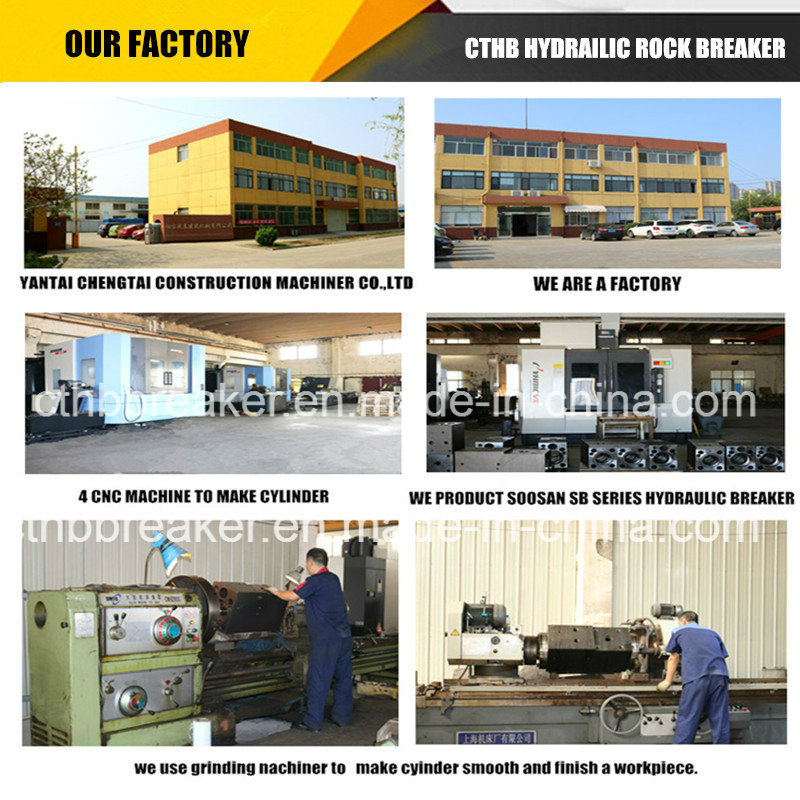

Yantai Chengtai Construction Machinery Co., Ltd is one of the professional manufacturer for excavator hydraulic breaker in Yantai city, shandong, China with area of 5000 square meters workshop. Specialized in manufacturing soosan SB series hydraulic breaker more than 10 years. Chisel diameter from 35mm to 195mm. Suit for 0.8ton to 60 ton excavator. We have several high precision production line, include Korea Doosan CNC, Doosan and so on which lay a solid foundation for products Precision machining.

We have our own brand ---CTHB, it means Cheng Tai Hydraulic Breaker as our export brand, OEM is acceptable. Welcome to visit us!
