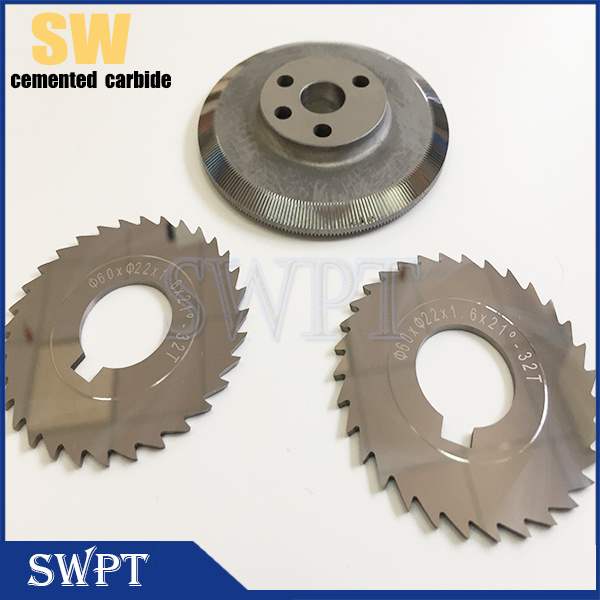

Solid Carbide Slitting Saws Knife

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

SHANGWEI PRECISION CO., LTD.

Showroom Product Company Profile

We supply all kinds of tungsten carbide discs,solid carbide disc is a very good choice for milling ,cutting off ,slitting and slotting metal materials, like aluminum,stainless steel,cast iron, copper,also for difficut -to-machine materials such astobacco, rubber, plywood, etc.

Those that are entirely made of solid carbide metal materials are called profile solid carbide metal saws .If no special requirements,the profiles solid carbide disc (flat teeth series) can be produced with specification of following major factors of outside diameter X thickness X inner diameter X teeth number X boss diameter (if applicable)-material to be milled.Customized design also welcomed!

CATALOG OF TUNGSTEN CARBIDE DISC FOR METAL WORKING:

D(MM) OUTER DIAMETER		b(mm) THICKNESS RANGE		d(mm) SEELECTED		Selectable Number of teeth
Basic Size	Tolerance	Basic Size	Tolerance ±0.005	Basic Size	Tolerance H7	Selectable Number of teeth
12	±0.090	0.10~10	±0.012	5 6	+0.0120	12 18 24 30 36 40
16	±0.090	0.10~10	±0.012	5 6	+0.0120	12 18 24 30 36 40 50
20	±0.015	0.10~10	±0.012	6 8	+0.0120	24 30 36 40 50 60 72 80
25	±0.105	0.10~10	±0.012	6 8 10	+0.0150	24 30 36 40 50 60 72 80
32	±0.125	0.10~10	±0.012	8 10 12.7 13	+0.0150 +0.0180	24 30 36 40 50 60 72 80
40	±0.125	0.15~10	±0.012	8 10 12.7 13	+0.0150 +0.0180	30 36 40 50 60 72 80 90
45	±0.125	0.20~10	±0.012	12.7 13 15.875 16	+0.0180	36 40 50 60 72 80 90 100
50	± 0.125	0.20~10	±0.012	12.7 13 15.875 16	+0.0180	40 50 60 72 80 90 100 120
60	±0.150	0.20~10	±0.012	12,7 13 15.875 16	+0.0180	40 50 60 72 80 90 100 120
63	±0.150	0.30~10	±0.012	12.7 13 15.875 16	+0.0180	40 50 60 72 80 90 100 120
70	±0.150	0.40~10	±0.012	22 25.4	+0.0210	40 50 60 72 80 90 100 120
75	±0.150	0.40~10	±0.012	22 25.4	+0.0210	40 50 60 72 80 90 100 120
80	±0.150	0.50~10	±0.012	22 25.4	+0.0210	40 50 60 72 80 90 100 120
100	±0.175	0.80~10	±0.012	22 25.4	+0.0210	50 60 72 80 90 100 120 150
125	±0.200	1.0~10	±0.015	22 25.4 32	+0.0210 +0.0250	50 60 72 80 90 100 120 150
150	±0.200	1.3~10	±0.015	25.4 32	+0.0210 +0.0250	50 60 72 80 90 100 120 150
180	±0.300	1,5~10	±0.015	25.4 32	+0.0210 +0.0250	50 60 72 80 90 100 120 150
200	±0.400	2.5~10	±0.020	25.4 32	+0.0210 +0.0250	60 72 80 90 100 120 150 180

Grade in YL10.2, YG6A, YG8 and so on

Model No:	Except Standard ,Customized Also Welcomed
Saw Type:	Circular Saw
Raw Material:	Tungsten Carbide
Grade:	Yg6a, Yg8a, Yg8X, Yg8, Yg10X, Ys2t
Customized:	Customized
Condition:	New
Power Source:	Electricity
Color:	Grey
Polishing:	Polishing
Brand:	Swpt
Type:	Tungsten Blade

ZHUZHOU SHANGWEI PRECISION TOOL., CO SET UP IN 2013 BY AN EXPERIENCED TEAM. WE ARE GOOD AT NON-STANDARD CARBIDE PRODUCT CUSTOMIZED, CARBIDE FINE PROCESSING. WE ARE VERY GLAD TO OFFER TOTAL TOOLS SOLUTION TO CUSTOMER. OUR MAIN PRODUCTS INCLUDING SOLID SAW BLADES, CARBIDE SAW TIPS, CARBIDE SHIMS, VALVE SEAT, PDC SUBSTRATE TIPS, etc. WHICH ARE WIDELY USED IN KINDS OF MODERN AND TRADITIONAL INDUSTRY FIELDS.
