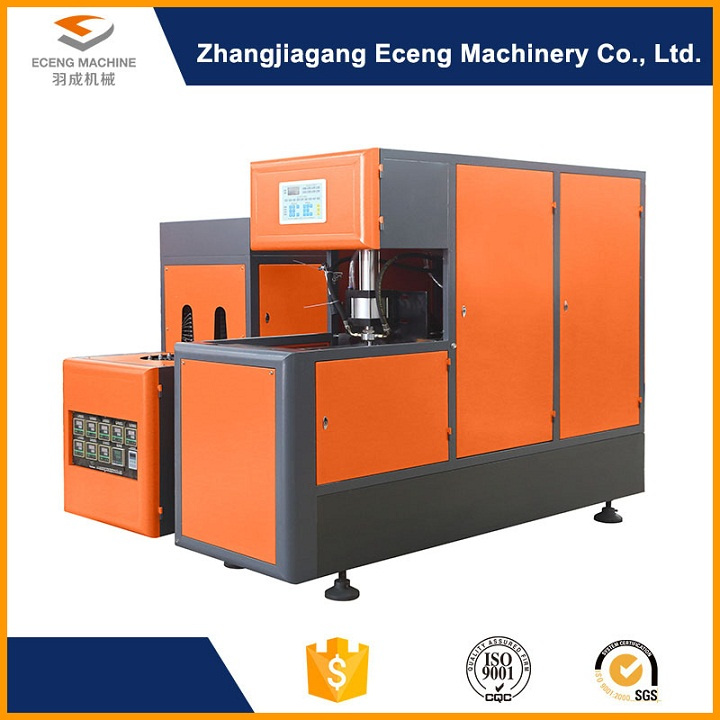

Small plastic bottle blower and oven
Model:YC-2L-2
Product max volume:2L

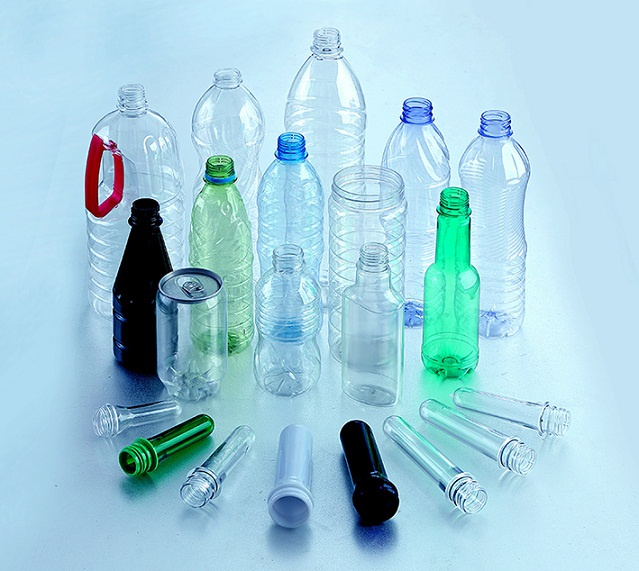

Suitable for blowing bottles between 100ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter.Semi-automatic blow moulding machinel. Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.
2. High responsiveness pneumatic components,action timely and precisely.
3. Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation.
4. Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.Technology Advantagel. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartionService Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.

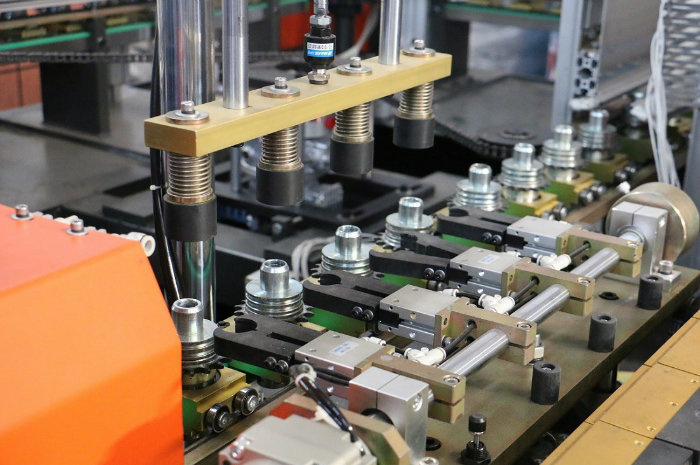

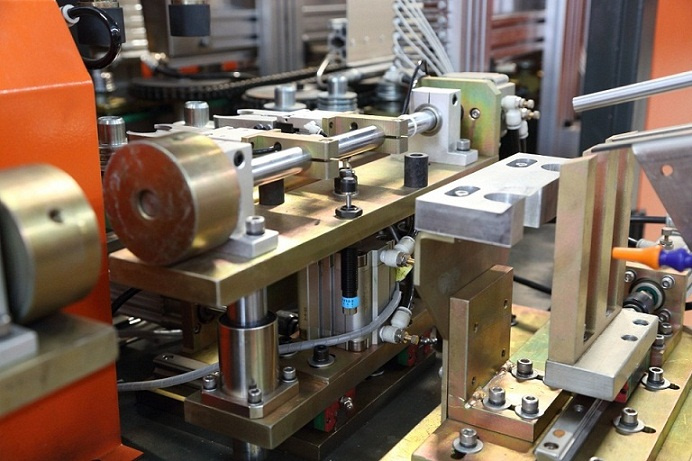

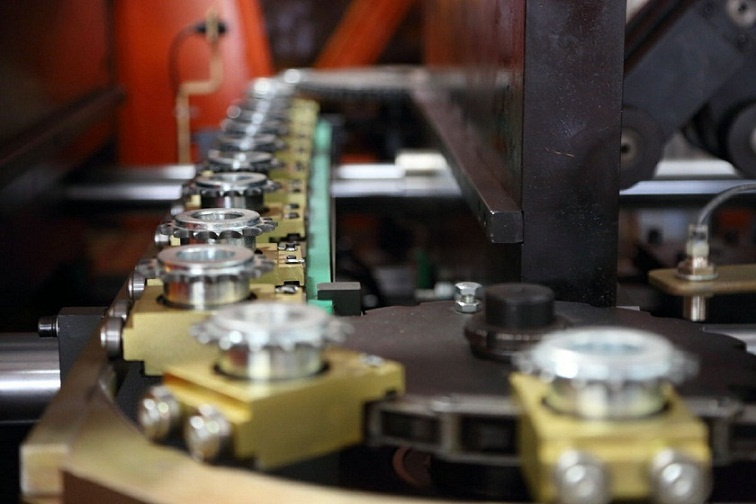

Machine pictures
| Main machine (blower +oven) | Model type | Technical data |
| Product Spec | Max. product volume(L/cav) | 2 |
| Max. preform neck size(mm) | 100 |
| Max. product diameter(mm) | 180 |
| Max. product height (mm) | 300 |
| Cavities | 2 |
| Blow molding part | Die force (KN) | 100 |
| Die stroke (mm) | 270 |
| Max. mould size(mm) | 390*345 |
| Mould thickness | Adjustable |
| Mould spacing(mm) | Adjustable |
| Max. pulling stroke(mm) | 400 |
| Operation pressure(Mpa) | 0.8-1.0 |
| Operation air pressure consumption(1tr/min) | 200 |
| Blow pressure(Mpa) | 1.2-2.8 |
| Blow air pressure consumption (1tr/min) | 300 |
| Output(pcs/h) | 1000-1800 |
| Machine size(LxWxH)(m) | 1.46*0.58*1.8 |
| Machine weight(KG) | 650 |
| Oven | Temperature grade(rate) | 8 |
| Heating time(S) | 90-200 |
| Voltage(V) | 220 or as your request |
| Frequency(HZ) | 50/60 |
| Total power(KW) | 16 |
| Oven Size (LxWxH) | 1.35*0.55*1.15 |
| Oven weight (KG) | 300 |
