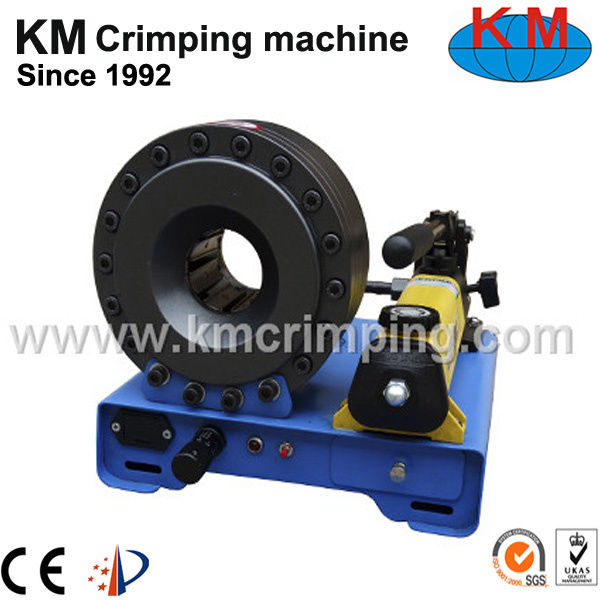

Manual Hose crimping machine KM-92S-A techincal data:
| Crimp range | 4mm-37mm |
| For hydraulic hose | 1inch |
| Max opening without dies | 57mm |
| Opening | 17mm |
| Force | 1040KN |
| Cycle time | --- |
| Voltage & Power | BY HAND,NO MOTOR |
| Optional voltage | BY HAND,NO MOTOR |
| Pump | ENERPAC |
| Dies sets | 7 |
| System pressure | 35Mpa |
| Machine size | 305*370*270mm |
| Weight without oil | 26.5kg |
| Shelf+quick change | NO |
| Electric limit switch | NO |
| Electric control with touch screen | NO |
KM-92S-A dies information:
| Die information of KM-92S-A |
| Hose I.D. | Die bore | Die length | Ferrule length |
| 1/4"(6mm) | 14mm | 64mm | less than 64mm |
| 5/16"(8mm) | 16mm | 64mm | less than 64mm |
| 3/8"(10mm) | 19mm | 64mm | less than 64mm |
| 1/2"(13mm) | 23mm | 64mm | less than 64mm |
| 5/8"(16mm) | 27mm | 64mm | less than 64mm |
| 3/4"(19mm) | 31mm | 64mm | less than 64mm |
| 1"(25mm) | 35mm | 64mm | less than 64mm |
Note: Die bore&Length can customized as your hydraulic fitting & ferrule size.
KM-92S-A applition:
1. Suitable for OUT DOOR MAINTAINCE, ONLY 26.5KG, EASY TO CARRY.
2.Used rubber hose to transmit hydraulic pressure as there working power.
3. used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
Hose crimping machine why not choose kangmai ?
1. kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.
2. The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.
3. Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard. Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on. Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment. Everything is ok, the inspector signed and machine allow to go out the facotry.
4.KANGMAI HYDRAULIC Pay attention to package so that the machine can reach to client safely:
5. KANGMAI HYDRAULIC PAYTATION SERVICE AND TECHINCAL SUPPORT:
(A) tell you, my dear clients- the route of vessal.
(B) take the photo of machine production condition and package condition to you-my clients.
(C) Apply free container yard of your port, my dear client give you engouh time to clear your country customer.
(D) when you get our hose crimping machine, I will tell you again how to operation the machine and how to maintaince the hose crimping machine.
(E) pay a return visit after you use our machine 2-3 hours. Offer some suggestion again about maintaince machine so that you can use kangmai machine for a long time.
(F) technical support: (1)24 hour technical support available
(2)We can ask our engineer to your mentioned address if
there is any need.
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.
Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.
The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.
In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
