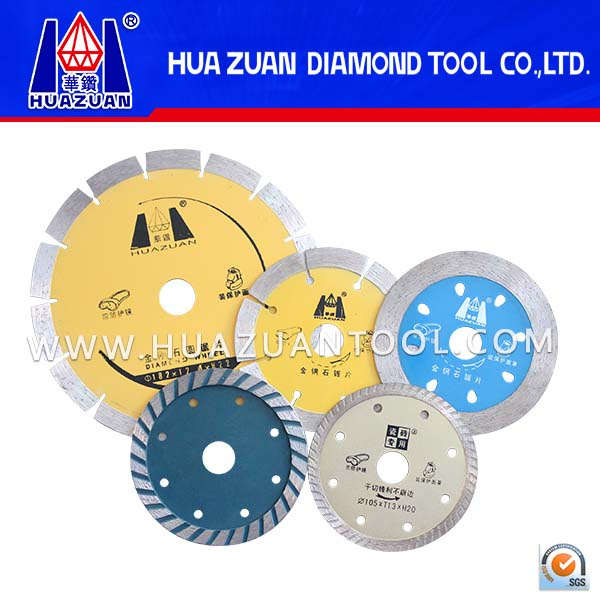

Small Diameter Diamond Saw Blade for Dry Wet Cutting

Small Diameter Diamond Saw Blade for Dry Wet Cutting
Price: US $ 2.0-3.6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Details of Small diameter diamond saw blade for dry wet cutting
diamond cutting disc:
 Table 1

Outer diameter

Inner diameter
(mm)

Dimension of segment (mm)

Inch

mm

Height

Thickness

4.125''

105

16/20/22.23/25.4

8/10/12

1.7

4.375''

110

16/20/22.23/25.4

8/10/12

1.8

4.5''

115

16/20/22.23/25.4

8/10/12

1.8

5''

125

16/20/22.23/25.4

8/10/12

1.8

6''

150

16/20/22.23/25.4

8/10/12

2

7''

180

22.23/25.4

8/10/12

2.2

8''

200

22.23/25.4

8/10/12

2.2

9''

230

22.23/25.4

8/10/12

2.2

10''

250

 22.23/25.4

8/10/12

2.5

Table 2

Item

Details

Remark

Application

Used for cutting Mable, granite, sandstone, limestone, ceramic, concrete, asphalt, refractory, brick etc.

Different stone different formula

Size

From 105mm to 300mm

Can be required by clients

Type

Wet cutting & Dry cutting



Raw material

Diamond, Co, other metal powder



Performance

Stable, fast cutting, no chipping



Competitive advantage

Factory direct sale, Reasonable price, Good service



Certification

ISO9001-2000, SGS



2.Parameter of all diamond cutting discs:


Edge cutting disc

Application

Advantages

Segmented saw blade

Dry cutting blade, It can cut without water. Suitable for cutting various hard materials, such as marble, granite, sandstone, limestone, ceramic, tile concrete,asphalt,refractory,brick,etc.

Sharp, Smooth cutting

Continuous rim blade

Wet cutting blade, It must cutting with water.

Sharp, Long lifespan

Turbo saw blade

Suitable for either dry cutting or wet cutting. Good at chip removal, cool down when cutting.

Fast cutting
Accurate cutting
Excellent performance

Strengthen turbo saw blade

Good at chip removal, low noise, cool down and bending resistance when cutting.

Bending resistance

Tuck point blade

Removal of mortar joints and preparation of masonry surfaces including concrete block, bricks and stone. The thickness of segments and saw blank are higher than others.

High-efficiency

Concave saw blade

Use for arc-shape cutting.

Smooth cutting

Blade with protection segment

Good for protecting the saw blank during cutting.

Safety


Prod Model: HZ-DSB007
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 105mm-250mm
Performance: Sharp, Wearable
Cutting Speed: Fast
Shape: Round
Manufacturing Arts: Sinter
Saw Blade External Diameter: 4"-10"
Customized: Customized
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
